#include <ACov.hpp>

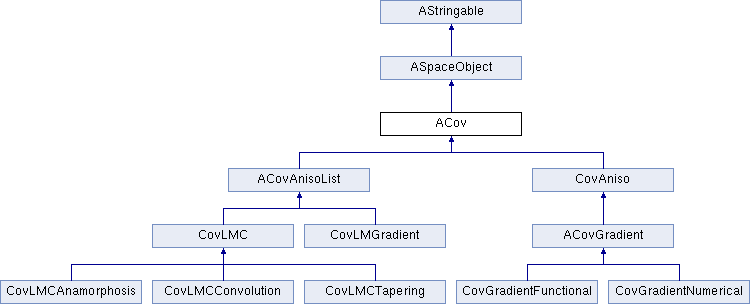

Inheritance diagram for ACov:

Public Member Functions
	ACov (const ASpace *space=nullptr)

	ACov (const ACov &r)

ACov &	operator= (const ACov &r)

virtual	~ACov ()

virtual int	getNVariables () const =0
	ACov Interface. More...

virtual double	eval0 (int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const =0

virtual double	eval (const SpacePoint &p1, const SpacePoint &p2, int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const =0

virtual double	evalCovOnSphere (double, int, bool) const

virtual double	evalSpectrum (const VectorDouble &, int, int) const

MatrixSquareGeneral	eval0Nvar (const CovCalcMode &mode=CovCalcMode()) const

VectorDouble	eval (const std::vector< SpacePoint > &vec_p1, const std::vector< SpacePoint > &vec_p2, int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const

MatrixSquareGeneral	evalMat (const SpacePoint &p1, const SpacePoint &p2, const CovCalcMode &mode=CovCalcMode()) const

double	evalIvarIpas (double step, const VectorDouble &dir, int ivar=0, int jvar=0, const VectorDouble &center=VectorDouble(), const CovCalcMode &mode=CovCalcMode()) const

double	evalIvarIpasIncr (const VectorDouble &dincr, int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const

VectorDouble	evalIvarNpas (const VectorDouble &vec_step, const VectorDouble &dir=VectorDouble(), int ivar=0, int jvar=0, const VectorDouble &center=VectorDouble(), const CovCalcMode &mode=CovCalcMode()) const

MatrixSquareGeneral	evalNvarIpas (double step, const VectorDouble &dir, const VectorDouble &center=VectorDouble(), const CovCalcMode &mode=CovCalcMode()) const

MatrixSquareGeneral	evalNvarIpasIncr (const VectorDouble &dincr, const CovCalcMode &mode) const

double	evalIsoIvarIpas (double step, int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const

VectorDouble	evalIsoIvarNpas (const VectorDouble &vec_step, int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const

MatrixSquareGeneral	evalIsoNvarIpas (double step, const CovCalcMode &mode=CovCalcMode()) const

double	evalCvv (const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &angles=VectorDouble(), int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const

double	evalCvvShift (const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &shift, const VectorDouble &angles=VectorDouble(), int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const

MatrixSquareGeneral	evalCvvM (const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &angles=VectorDouble(), const CovCalcMode &mode=CovCalcMode()) const

double	evalCxv (const SpacePoint &p1, const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &angles=VectorDouble(), const VectorDouble &x0=VectorDouble(), int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const

double	evalCxv (const Db *db, const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &angles=VectorDouble(), const VectorDouble &x0=VectorDouble(), int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const

MatrixSquareGeneral	evalCxvM (const SpacePoint &p1, const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &angles=VectorDouble(), const VectorDouble &x0=VectorDouble(), const CovCalcMode &mode=CovCalcMode()) const

VectorDouble	evalPointToDb (const SpacePoint &p1, const Db *db2, int ivar=0, int jvar=0, bool useSel=true, const CovCalcMode &mode=CovCalcMode()) const

double	evalAverageDbToDb (const Db db1, const Db db2, int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const

double	evalAveragePointToDb (const SpacePoint &p1, const Db *db2, int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const

MatrixRectangular	evalCovMatrix (const Db db1, const Db db2=nullptr, int ivar=0, int jvar=0, const CovCalcMode &mode=CovCalcMode()) const

double	extensionVariance (const Db *db, const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &angles=VectorDouble(), const VectorDouble &x0=VectorDouble(), int ivar=0, int jvar=0) const

double	samplingDensityVariance (const Db *db, const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &angles=VectorDouble(), const VectorDouble &x0=VectorDouble(), int ivar=0, int jvar=0) const

double	specificVolume (const Db *db, double mean, const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &angles=VectorDouble(), const VectorDouble &x0=VectorDouble(), int ivar=0, int jvar=0) const

double	coefficientOfVariation (const Db *db, double volume, double mean, const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &angles=VectorDouble(), const VectorDouble &x0=VectorDouble(), int ivar=0, int jvar=0) const

double	specificVolumeFromCoV (Db *db, double cov, double mean, const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &angles=VectorDouble(), const VectorDouble &x0=VectorDouble(), int ivar=0, int jvar=0) const

Public Member Functions inherited from ASpaceObject
	ASpaceObject (const ASpace *space=nullptr)

	ASpaceObject (const ASpace &space)

	ASpaceObject (const ASpaceObject &r)

ASpaceObject &	operator= (const ASpaceObject &r)

virtual	~ASpaceObject ()

virtual String	toString (const AStringFormat *strfmt=nullptr) const override
	AStringable interface. More...

const ASpace *	getSpace () const
	Accessor to the current object space context. More...

bool	isConsistent () const
	Indicate if I am consistent with my current space context. More...

VectorDouble	getUnitaryVector () const
	Return unitary vector for the current space context. More...

virtual bool	isConsistent (const ASpace *space) const =0
	Indicate if I am consistent with the provided space. More...

unsigned int	getNDim () const
	Shortcuts to ASpace methods. More...

const VectorDouble &	getOrigin () const
	Return the current space context origin coordinates. More...

double	getDistance (const SpacePoint &p1, const SpacePoint &p2) const
	Return the distance between two space points for the current space context. More...

VectorDouble	getIncrement (const SpacePoint &p1, const SpacePoint &p2) const
	Return the increment vector between two space points for the current space context. More...

Public Member Functions inherited from AStringable
	AStringable ()

	AStringable (const AStringable &r)

AStringable &	operator= (const AStringable &r)

virtual	~AStringable ()

virtual void	display (const AStringFormat *strfmt=nullptr) const final

virtual void	display (int level) const final

Private Member Functions
DbGrid *	_discretizeBlock (const VectorDouble &ext, const VectorInt &ndisc, const VectorDouble &angles=VectorDouble(), const VectorDouble &x0=VectorDouble()) const

Db *	_discretizeBlockRandom (const DbGrid *dbgrid, int seed=34131) const

double	_getVolume (const VectorDouble &ext) const

Additional Inherited Members
Protected Member Functions inherited from ASpaceObject
void	setNDim (int ndim)
	Modify the Space dimension of an already created item (To be used only during creation ... in particular when reading NF) More...

Protected Attributes inherited from ASpaceObject
const ASpace *	_space
	Current space context of the object. More...

Constructor & Destructor Documentation

◆ ACov() [1/2]

ACov::ACov ( const ASpace * space = nullptr )

◆ ACov() [2/2]

ACov::ACov ( const ACov & r )

◆ ~ACov()

ACov::~ACov ( )

virtual

Member Function Documentation

◆ _discretizeBlock()

DbGrid * ACov::_discretizeBlock	(	const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	angles = `VectorDouble()`,
		const VectorDouble &	x0 = `VectorDouble()`
	)		const

private

Creates the discretization grid

Parameters

ext	Vecto of Block extensions
ndisc	Vector of Discretizations
angles	Vector of rotation angles
x0	Vector of Discretization origin

Returns

Remarks: If block origin is not defined, it is set so that the; center of the block is one the point (0,0)

◆ _discretizeBlockRandom()

Db * ACov::_discretizeBlockRandom	(	const DbGrid *	dbgrid,
		int	seed = `34131`
	)		const

private

◆ _getVolume()

double ACov::_getVolume ( const VectorDouble & ext ) const

private

◆ coefficientOfVariation()

double ACov::coefficientOfVariation	(	const Db *	db,
		double	volume,
		double	mean,
		const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	angles = `VectorDouble()`,
		const VectorDouble &	x0 = `VectorDouble()`,
		int	ivar = `0`,
		int	jvar = `0`
	)		const

Calculate the Coefficient of Variation

Parameters

db	Set of data points
volume	Specific production volume
mean	Value of the Mean
ext	Target Block extension
ndisc	Vector of discretization
angles	Optional rotation angle for block
x0	Optional origin of the Block
ivar	Rank of the first variable
jvar	Rank of the second variable

Returns

◆ eval() [1/2]

virtual double ACov::eval	(	const SpacePoint &	p1,
		const SpacePoint &	p2,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

pure virtual

Implemented in CovAniso, CovLMCConvolution, CovLMCTapering, CovLMCAnamorphosis, ACovAnisoList, and CovGradientNumerical.

◆ eval() [2/2]

VectorDouble ACov::eval	(	const std::vector< SpacePoint > &	vec_p1,
		const std::vector< SpacePoint > &	vec_p2,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

◆ eval0()

virtual double ACov::eval0	(	int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

pure virtual

Implemented in CovAniso, CovLMCConvolution, CovLMCTapering, CovLMCAnamorphosis, ACovAnisoList, and CovGradientNumerical.

◆ eval0Nvar()

MatrixSquareGeneral ACov::eval0Nvar ( const CovCalcMode & mode = CovCalcMode() ) const

◆ evalAverageDbToDb()

double ACov::evalAverageDbToDb	(	const Db *	db1,
		const Db *	db2,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Calculate the (weighted) average Covariance between samples of two Dbs, for a pair of variables

Parameters

db1	Pointer to the first Db
db2	Pointer to the second Db
ivar	Rank of the first variables
jvar	Rank of the second variable
mode	CovCalcMode structure

Returns

◆ evalAveragePointToDb()

double ACov::evalAveragePointToDb	(	const SpacePoint &	p1,
		const Db *	db2,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Calculate the (weighted) average Covariance between a point and a Db for a pair of variables

Parameters

p1	Point location
db2	Pointer to the second Db
ivar	Rank of the first variables
jvar	Rank of the second variable
mode	CovCalcMode structure

Returns

◆ evalCovMatrix()

MatrixRectangular ACov::evalCovMatrix	(	const Db *	db1,
		const Db *	db2 = `nullptr`,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Establish the covariance matrix between two Dbs

Parameters

[in]	db1	First Db
[in]	db2	Second Db (=db1 if absent)
[in]	ivar	Rank of the first variable (-1: all variables)
[in]	jvar	Rank of the second variable (-1: all variables)
[in]	mode	CovCalcMode structure

Remarks: The returned matrix if dimension to nrows * ncols where; nrows is the number of active samples in db1; ncols is the number of active samples in db2

◆ evalCovOnSphere()

virtual double ACov::evalCovOnSphere	(	double	,
		int	,
		bool
	)		const

inlinevirtual

Reimplemented in CovAniso.

◆ evalCvv()

double ACov::evalCvv	(	const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	angles = `VectorDouble()`,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Average covariance over a block

Parameters

ext	Vector of Block extensions
ndisc	Vector of Block discretization
angles	Vector of rotation angles
ivar	Rank of the first variable
jvar	Rank of the second variable
mode	CovCalcMode structure

Returns

◆ evalCvvM()

MatrixSquareGeneral ACov::evalCvvM	(	const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	angles = `VectorDouble()`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

◆ evalCvvShift()

double ACov::evalCvvShift	(	const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	shift,
		const VectorDouble &	angles = `VectorDouble()`,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Average covariance between a block and the same block shifted

Parameters

ext	Vector of Block extensions
ndisc	Vector of Block discretization
angles	Vector of rotation angles
shift	Shift between the two blocks
ivar	Rank of the first variable
jvar	Rank of the second variable
mode	CovCalcMode structure

Returns

◆ evalCxv() [1/2]

double ACov::evalCxv	(	const SpacePoint &	p1,
		const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	angles = `VectorDouble()`,
		const VectorDouble &	x0 = `VectorDouble()`,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Average covariance over a block

Parameters

p1	Point location
ext	Vector of Block extensions
ndisc	Vector of Block discretization
angles	Vector of rotation angles
x0	Vector for origin of block
ivar	Rank of the first variable
jvar	Rank of the second variable
mode	CovCalcMode structure

Returns

◆ evalCxv() [2/2]

double ACov::evalCxv	(	const Db *	db,
		const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	angles = `VectorDouble()`,
		const VectorDouble &	x0 = `VectorDouble()`,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

◆ evalCxvM()

MatrixSquareGeneral ACov::evalCxvM	(	const SpacePoint &	p1,
		const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	angles = `VectorDouble()`,
		const VectorDouble &	x0 = `VectorDouble()`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

◆ evalIsoIvarIpas()

double ACov::evalIsoIvarIpas	(	double	step,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Covariance for a given unit global distance (without anisotropy) for a pair of variables and a single step

Parameters

ivar	Rank of the first variable
jvar	Rank of the second variable
step	Step value
mode	CovCalcMode structure

Returns

TODO : Not true whatever the space

◆ evalIsoIvarNpas()

VectorDouble ACov::evalIsoIvarNpas	(	const VectorDouble &	vec_step,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Covariance for a given unit global distance (without anisotropy) for a pair of variables and a set of steps

Parameters

ivar
jvar
vec_step
mode

Returns

TODO : Not true whatever the space

◆ evalIsoNvarIpas()

MatrixSquareGeneral ACov::evalIsoNvarIpas	(	double	step,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Covariance for a given unit global distance (without anisotropy) for a set of variables and a single step

Parameters

step	Step value
mode	CovCalcMode structure

Returns

TODO : Not true whatever the space

◆ evalIvarIpas()

double ACov::evalIvarIpas	(	double	step,
		const VectorDouble &	dir,
		int	ivar = `0`,
		int	jvar = `0`,
		const VectorDouble &	center = `VectorDouble()`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Covariance from a given point (center) in a given direction (dir *step)

Parameters

ivar	Rank of the first variable
jvar	Rank of the second variable
step	Step value
dir	Direction definition
center	Coordinates of the center
mode	CovCalcMode structure

Returns

◆ evalIvarIpasIncr()

double ACov::evalIvarIpasIncr	(	const VectorDouble &	dincr,
		int	ivar = `0`,
		int	jvar = `0`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

◆ evalIvarNpas()

VectorDouble ACov::evalIvarNpas	(	const VectorDouble &	vec_step,
		const VectorDouble &	dir = `VectorDouble()`,
		int	ivar = `0`,
		int	jvar = `0`,
		const VectorDouble &	center = `VectorDouble()`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Covariance vector from a given point (center) in a given direction (dir * steps) for a pair of variables and a set of steps

Parameters

ivar	Rank of the first variable
jvar	Rank of the second variable
vec_step	Vector of step values
dir	Direction definition
center	Coordinates of the Center
mode	CovCalcMode structure

Returns

◆ evalMat()

MatrixSquareGeneral ACov::evalMat	(	const SpacePoint &	p1,
		const SpacePoint &	p2,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

◆ evalNvarIpas()

MatrixSquareGeneral ACov::evalNvarIpas	(	double	step,
		const VectorDouble &	dir,
		const VectorDouble &	center = `VectorDouble()`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Covariance Matrix from a given point (center) in a given direction (dir * step) for a set of variables and a given step

Parameters

step	Step value
dir	Direction definition
center	Coordinates of the center
mode	CovCalcMode structure

Returns

◆ evalNvarIpasIncr()

MatrixSquareGeneral ACov::evalNvarIpasIncr	(	const VectorDouble &	dincr,
		const CovCalcMode &	mode
	)		const

◆ evalPointToDb()

VectorDouble ACov::evalPointToDb	(	const SpacePoint &	p1,
		const Db *	db2,
		int	ivar = `0`,
		int	jvar = `0`,
		bool	useSel = `true`,
		const CovCalcMode &	mode = `CovCalcMode()`
	)		const

Calculate the Covariance vector between a Point and all the samples of a Db, for a pair of variables

Parameters

p1	Point location
db2	Pointer to the second Db
ivar	Rank of the first variables
jvar	Rank of the second variable
useSel	When TRUE, the returned vector is reduced to active samples Otherwise, returns TEST for masked samples
mode	CovCalcMode structure

Returns

◆ evalSpectrum()

virtual double ACov::evalSpectrum	(	const VectorDouble &	,
		int	,
		int
	)		const

inlinevirtual

Reimplemented in CovAniso.

◆ extensionVariance()

double ACov::extensionVariance	(	const Db *	db,
		const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	angles = `VectorDouble()`,
		const VectorDouble &	x0 = `VectorDouble()`,
		int	ivar = `0`,
		int	jvar = `0`
	)		const

Variance of Extension of a set of points and the block

Parameters

db	Reference Data Base
ext	Vector giving the extensions of the target block
ndisc	Vector giving the discretization
angles	Vector for the rotation angles of the block (optional)
x0	Optional origin of the Block
ivar	Rank of the first variable
jvar	Rank of the second variable

Returns

◆ getNVariables()

virtual int ACov::getNVariables ( ) const

pure virtual

ACov Interface.

Implemented in CovAniso, and ACovAnisoList.

◆ operator=()

ACov & ACov::operator= ( const ACov & r )

◆ samplingDensityVariance()

double ACov::samplingDensityVariance	(	const Db *	db,
		const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	angles = `VectorDouble()`,
		const VectorDouble &	x0 = `VectorDouble()`,
		int	ivar = `0`,
		int	jvar = `0`
	)		const

Calculate the Sampling Density Variance

Parameters

db	Set of data points
ext	Block extension
ndisc	Discretization
angles	Optional rotation angles for the Block
x0	Optional origin of the block
ivar	Rank of the first variable
jvar	Rank of the second variable

Returns

◆ specificVolume()

double ACov::specificVolume	(	const Db *	db,
		double	mean,
		const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	angles = `VectorDouble()`,
		const VectorDouble &	x0 = `VectorDouble()`,
		int	ivar = `0`,
		int	jvar = `0`
	)		const

Calculate the Specific Volume

Parameters

db	Set of data points
mean	Value of the Mean
ext	Target Block extension
ndisc	Vector of discretization
angles	Optional rotation angle for block
x0	Optional origin of the Block
ivar	Rank of the first variable
jvar	Rank of the second variable

Returns

◆ specificVolumeFromCoV()

double ACov::specificVolumeFromCoV	(	Db *	db,
		double	cov,
		double	mean,
		const VectorDouble &	ext,
		const VectorInt &	ndisc,
		const VectorDouble &	angles = `VectorDouble()`,
		const VectorDouble &	x0 = `VectorDouble()`,
		int	ivar = `0`,
		int	jvar = `0`
	)		const

Derive the Specific volume for a given CoV

Parameters

db	Set of data points
cov	Target Coefficient of Variation
mean	Value of the Mean
ext	Target Block extension
ndisc	Vector of discretization
angles	Optional rotation angle for block
x0	Optional origin of the Block
ivar	Rank of the first variable
jvar	Rank of the second variable

Returns

The documentation for this class was generated from the following files:

include/Covariances/ACov.hpp
src/Covariances/ACov.cpp

Public Member Functions

Private Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ ACov() [1/2]

◆ ACov() [2/2]

◆ ~ACov()

Member Function Documentation

◆ _discretizeBlock()

◆ _discretizeBlockRandom()

◆ _getVolume()

◆ coefficientOfVariation()

◆ eval() [1/2]

◆ eval() [2/2]

◆ eval0()

◆ eval0Nvar()

◆ evalAverageDbToDb()

◆ evalAveragePointToDb()

◆ evalCovMatrix()

◆ evalCovOnSphere()

◆ evalCvv()

◆ evalCvvM()

◆ evalCvvShift()

◆ evalCxv() [1/2]

◆ evalCxv() [2/2]

◆ evalCxvM()

◆ evalIsoIvarIpas()

◆ evalIsoIvarNpas()

◆ evalIsoNvarIpas()

◆ evalIvarIpas()

◆ evalIvarIpasIncr()

◆ evalIvarNpas()

◆ evalMat()

◆ evalNvarIpas()

◆ evalNvarIpasIncr()

◆ evalPointToDb()

◆ evalSpectrum()

◆ extensionVariance()

◆ getNVariables()

◆ operator=()

◆ samplingDensityVariance()

◆ specificVolume()

◆ specificVolumeFromCoV()
