Image Neighborhood definition. More...

#include <NeighImage.hpp>

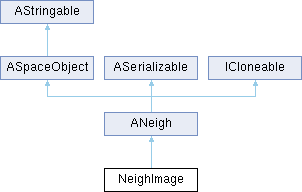

Inheritance diagram for NeighImage:

Detailed Description

Image Neighborhood definition.

The Neighborhood is usually meant to select a sub-population from the input Data Base, containing the active samples close to the target.

This Neighborhood is only defined in the case when the Data and the Target belong to the same grid. This neighborhood is defined as a rectangular set of pixels, located around the target. This rectangle is given by its half-extension in each space dimension (called 'radius') As the number of pixels grows fast with the space dimension, it is offered to sample them by specifying a skipping factor, so as to retain only 1 / (1 + skip) of them.

Public Member Functions
	NeighImage (const VectorInt &radius=VectorInt(), int skip=0, const ASpaceSharedPtr &space=ASpaceSharedPtr())

	NeighImage (const NeighImage &r)

NeighImage &	operator= (const NeighImage &r)

virtual	~NeighImage ()

virtual void	getNeigh (int iech_out, VectorInt &ranks) override
	Interface for ANeigh.

virtual int	getNSampleMax (const Db *db) const override

virtual bool	hasChanged (int iech_out) const override

virtual ENeigh	getType () const override

virtual String	toString (const AStringFormat *strfmt=nullptr) const override
	Interface for AStringable.

int	getSkip () const

const VectorInt &	getImageRadius () const

int	getImageRadius (int idim) const

void	setImageRadius (const VectorInt &imageRadius)

void	setSkip (int skip)

DbGrid *	buildImageGrid (const DbGrid *dbgrid, int seed) const
	Create a subgrid containing the minimum pattern for Image Neighborhood. The output subgrid is "parallel" to the input 'dbgrid'.

Public Member Functions inherited from ANeigh
	ANeigh (const ASpaceSharedPtr &space=ASpaceSharedPtr())

	ANeigh (const ANeigh &r)

ANeigh &	operator= (const ANeigh &r)

virtual	~ANeigh ()

virtual bool	isConsistent (const ASpace *space) const override
	ASpaceObject Interface.

virtual int	attach (const Db dbin, const Db dbout)
	Interface for ANeigh.

virtual VectorDouble	summary (int iech_out)

virtual bool	getFlagContinuous () const

void	displayDebug (VectorInt &ranks) const

void	select (int iech_out, VectorInt &ranks)

bool	isUnchanged () const

void	setIsChanged (bool status=false)

void	reset ()

bool	getFlagXvalid () const

bool	getFlagKFold () const

void	setFlagXvalid (bool flagXvalid)

void	setFlagKFold (bool flagKFold)

void	setFlagSimu (bool flagSimu)

void	setBallSearch (bool status, int leaf_size=10)

void	attachBall (double(dist_function)(const double x1, const double *x2, int size)=nullptr)

Public Member Functions inherited from ASpaceObject
	ASpaceObject (const ASpaceSharedPtr &space=ASpaceSharedPtr())

	ASpaceObject (const ASpaceObject &r)

ASpaceObject &	operator= (const ASpaceObject &r)

virtual	~ASpaceObject ()

ASpaceSharedPtr	getSpace () const
	Accessor to the current object space context.

bool	isConsistent () const
	Indicate if I am consistent with my current space context.

VectorDouble	getUnitaryVector () const
	Return unitary vector for the current space context.

bool	isConsistent (const ASpaceSharedPtr &space) const
	Indicate if I am consistent with the provided space.

unsigned int	getNDim (int ispace=-1) const
	Shortcuts to ASpace methods.

const VectorDouble &	getOrigin (int ispace=-1) const
	Return the current space context origin coordinates.

double	getDistance (const SpacePoint &p1, const SpacePoint &p2, int ispace=0) const
	Return the distance between two space points for the current space context.

VectorDouble	getDistances (const SpacePoint &p1, const SpacePoint &p2) const
	Return all the distances (space composits) between two space points for the current space context.

VectorDouble	getIncrement (const SpacePoint &p1, const SpacePoint &p2, int ispace=0) const
	Return the increment vector between two space points for the current space context.

Public Member Functions inherited from AStringable
	AStringable ()

	AStringable (const AStringable &r)

AStringable &	operator= (const AStringable &r)

virtual	~AStringable ()

virtual void	display (const AStringFormat *strfmt=nullptr) const final

virtual void	display (int level) const final

Public Member Functions inherited from ASerializable
	ASerializable ()

	ASerializable (const ASerializable &r)

ASerializable &	operator= (const ASerializable &r)

virtual	~ASerializable ()

bool	deserialize (std::istream &is, bool verbose=true)

bool	serialize (std::ostream &os, bool verbose=true) const

bool	dumpToNF (const String &neutralFilename, bool verbose=false) const

Public Member Functions inherited from ICloneable
	ICloneable ()

virtual	~ICloneable ()

virtual ICloneable *	clone () const =0

Static Public Member Functions
static NeighImage *	create (const VectorInt &radius, int skip=0, const ASpaceSharedPtr &space=ASpaceSharedPtr())

static NeighImage *	createFromNF (const String &neutralFilename, bool verbose=true)

Static Public Member Functions inherited from ASerializable
static String	buildFileName (int status, const String &filename, bool ensureDirExist=false)

static String	getHomeDirectory (const String &sub="")

static String	getWorkingDirectory ()

static String	getTestData (const String &subdir, const String &filename)

static String	getFileIdentity (const String &filename, bool verbose=false)

static void	setContainerName (bool useDefault, const String &containerName="", bool verbose=false)

static void	unsetContainerName ()

static void	setPrefixName (const String &prefixName)

static void	unsetPrefixName ()

static const String &	getContainerName ()

static const String &	getPrefixName ()

static bool	createDirectory (const String &dir)

static String	getExecDirectory ()

static String	getDirectory (const String &path)

Constructor & Destructor Documentation

◆ NeighImage() [1/2]

NeighImage::NeighImage	(	const VectorInt &	radius = `VectorInt()`,
		int	skip = `0`,
		const ASpaceSharedPtr &	space = `ASpaceSharedPtr()`
	)

◆ NeighImage() [2/2]

NeighImage::NeighImage ( const NeighImage & r )

◆ ~NeighImage()

NeighImage::~NeighImage ( )

virtual

Member Function Documentation

◆ buildImageGrid()

DbGrid * NeighImage::buildImageGrid	(	const DbGrid *	dbgrid,
		int	seed
	)		const

Create a subgrid containing the minimum pattern for Image Neighborhood. The output subgrid is "parallel" to the input 'dbgrid'.

Parameters

dbgrid	Input DbGrid
seed	Seed used for random number generation

Returns: Pointer to the newly created DbGrid

Remarks: When a sample is skipped ('using 'skip' Neighborhood parameter) the value of the corresponding variable is set to 'TEST'.; The center point can never be skipped.

◆ create()

NeighImage * NeighImage::create	(	const VectorInt &	radius,
		int	skip = `0`,
		const ASpaceSharedPtr &	space = `ASpaceSharedPtr()`
	)

static

◆ createFromNF()

NeighImage * NeighImage::createFromNF	(	const String &	neutralFilename,
		bool	verbose = `true`
	)

static

Create a NeighImageborhood by loading the contents of a Neutral File

Parameters

neutralFilename	Name of the Neutral File
verbose	Verbose flag

Returns

◆ getImageRadius() [1/2]

const VectorInt & NeighImage::getImageRadius ( ) const

inline

◆ getImageRadius() [2/2]

int NeighImage::getImageRadius ( int idim ) const

inline

◆ getNeigh()

void NeighImage::getNeigh	(	int	iech_out,
		VectorInt &	ranks
	)

overridevirtual

Interface for ANeigh.

Select the neighborhood

Parameters

iech_out	Valid Rank of the sample in the output Db
ranks	Vector of sample ranks in neighborhood (empty when error)

Implements ANeigh.

◆ getNSampleMax()

int NeighImage::getNSampleMax ( const Db * db ) const

overridevirtual

Given a Db, returns the maximum number of samples per NeighImageborhood

Parameters

db	Pointer to the target Db

Returns

Implements ANeigh.

◆ getSkip()

int NeighImage::getSkip ( ) const

inline

◆ getType()

virtual ENeigh NeighImage::getType ( ) const

inlineoverridevirtual

Reimplemented from ANeigh.

◆ hasChanged()

bool NeighImage::hasChanged ( int iech_out ) const

overridevirtual

Reimplemented from ANeigh.

◆ operator=()

NeighImage & NeighImage::operator= ( const NeighImage & r )

◆ setImageRadius()

void NeighImage::setImageRadius ( const VectorInt & imageRadius )

inline

◆ setSkip()

void NeighImage::setSkip ( int skip )

inline

◆ toString()

String NeighImage::toString ( const AStringFormat * strfmt = nullptr ) const

overridevirtual

Interface for AStringable.

Reimplemented from ASpaceObject.

The documentation for this class was generated from the following files:

include/Neigh/NeighImage.hpp
src/Neigh/NeighImage.cpp
