gstlrn::AMatrix Class Reference

#include <AMatrix.hpp>

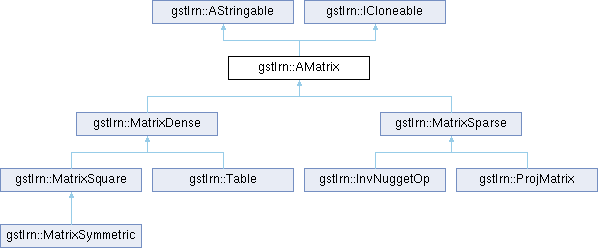

Inheritance diagram for gstlrn::AMatrix:

Detailed Description

This class is the root of the Matrix organization in gstlearn A matrix is a 2-D organization: it is characterized by its number of rows and its number of columns. Although the user should not bother with this remark, the elements of a matrix processed in 'gstlearn' are stored in a Row-major format. This is to say that the internal rank of an element characterized by its row and column numbers is: (icol * getNRows() + irow)

Since gstlearn version v1.3:

• Dense Matrices storage and algebra rely on Eigen3 library
• Sparse Matrices storage and algebra rely on Eigen3 library

Public Member Functions
	AMatrix (Id nrow=0, Id ncol=0)
	AMatrix (const AMatrix &m)
AMatrix &	operator= (const AMatrix &m)
	AMatrix (AMatrix &&m)=default
AMatrix &	operator= (AMatrix &&m)=default
virtual	~AMatrix ()
String	toString (const AStringFormat *strfmt=nullptr) const override
	Interface to AStringable.
virtual bool	isSparse () const =0
virtual bool	isDense () const =0
virtual bool	isSquare (bool printWhyNot=false) const
virtual bool	isSymmetric (double eps=EPSILON10, bool printWhyNot=false) const
virtual bool	mustBeSymmetric () const
virtual void	setValue (Id irow, Id icol, double value)=0
virtual void	updValue (Id irow, Id icol, const EOperator &oper, double value)=0
virtual void	setColumn (Id icol, const 1 &tab)=0
virtual void	setColumnToConstant (Id icol, double value)=0
virtual void	setRow (Id irow, const 1 &tab)=0
virtual void	setRowToConstant (Id irow, double value)=0
virtual void	setDiagonal (const 1 &tab)=0
virtual void	setDiagonalToConstant (double value=1.)=0
virtual void	multiplyRow (const 1 &vec)=0
virtual void	multiplyColumn (const 1 &vec)=0
virtual void	divideRow (const 1 &vec)=0
virtual void	divideColumn (const 1 &vec)=0
virtual double	getValue (Id irow, Id icol) const =0
virtual	getRow (Id irow) const
virtual	getColumn (Id icol) const
virtual void	fill (double value)=0
virtual void	reset (Id nrows, Id ncols)
virtual void	resetFromValue (Id nrows, Id ncols, double value)
	Reset the matrix to new dimensions and fill with a new value.
virtual void	resetFromArray (Id nrows, Id ncols, const double *tab, bool byCol=true)
	Reset the matrix from an array of double values.
virtual void	resetFromVD (Id nrows, Id ncols, const 1 &tab, bool byCol=true)
	Reset the matrix from a vector of double values.
virtual void	resetFromVVD (const 1 &tab, bool byCol=true)
	Reset the matrix from an array of double values.
virtual void	transposeInPlace ()
virtual AMatrix *	transpose () const
virtual void	prodMatMatInPlace (const AMatrix *x, const AMatrix *y, bool transposeX=false, bool transposeY=false)
virtual void	prodNormMatMatInPlace (const AMatrix *a, const AMatrix *m, bool transpose=false)
virtual void	prodNormMatVecInPlace (const AMatrix *a, const 1 &vec, bool transpose=false)
virtual void	prodNormMatInPlace (const AMatrix *a, bool transpose=false)
double	prodVecMatVec (const 1 &x, const 1 &y) const
virtual NF_Triplet	getMatrixToTriplet (Id shiftRow=0, Id shiftCol=0) const
void	clear ()
void	resize (Id nrows, Id ncols)
	Resize the matrix to new dimensions (this method doesn't change the storage type)
bool	isValid (Id irow, Id icol, bool printWhyNot=false) const
bool	isIdentity (bool printWhyNot=false) const
void	addValue (Id irow, Id icol, double value)
bool	isSame (const AMatrix &m, double eps=EPSILON4, bool printWhyNot=false)
bool	isSameSize (const AMatrix &m) const
bool	empty () const
double	compare (const AMatrix &mat) const
Id	getNRows () const
Id	getNCols () const
Id	size () const
	getValues (bool byCol=true) const
const &	getDiagonal (Id shift=0) const
bool	isColumnDefined (Id icol) const
bool	isRowDefined (Id irow) const
Id	getNColDefined () const
Id	getNRowDefined () const
	getColumnByRowRange (Id icol, Id rowFrom, Id rowTo) const
bool	isNonNegative (bool verbose=false) const
Id	invert ()
Id	solve (const 1 &b, 1 &x) const
void	dumpElements (const String &title, Id ifrom, Id ito) const
void	dumpStatistics (const String &title) const
void	setIdentity (double value=1.)
virtual void	fillRandom (double zeroPercent=0, Id seed=432432)
void	setValues (const 1 &values, bool byCol=true)
double	getMeanByColumn (Id icol) const
double	getMinimum () const
double	getMaximum () const
double	getNormInf () const
void	copyReduce (const AMatrix *x, const 1 &validRows, const 1 &validCols)
void	copyElements (const AMatrix &m, double factor=1.)
void	makePositiveColumn ()
void	dumpRange (const char *title)
double	operator() (Id row, Id col) const
double &	operator() (Id row, Id col)
Public Member Functions inherited from gstlrn::AStringable
	AStringable ()
	AStringable (const AStringable &r)
AStringable &	operator= (const AStringable &r)
virtual	~AStringable ()
virtual void	display (const AStringFormat *strfmt=nullptr) const final
virtual void	display (Id level) const final
void	printConcreteClassName () const
Public Member Functions inherited from gstlrn::ICloneable
	ICloneable ()
virtual	~ICloneable ()
virtual ICloneable *	clone () const =0
std::shared_ptr< ICloneable >	cloneShared () const
std::unique_ptr< ICloneable >	cloneUnique () const

Static Public Member Functions
template<class MA , class MB , class MC >
static void	prodMatMatInPlace (MA &A, const MB &B, const MC &C, bool transposeB=false, bool transposeC=false)
template<typename T >
static T	add (const T &other, double cst)
	Return 'other' + 'cst'.
template<typename T >
static void	addInPlace (T &res, const T &other, double cst)
	Operate 'res' = 'other' + 'cst'.
template<typename T >
static T	add (const T &other1, const T &other2)
	Return 'other1' + 'other2'.
template<typename T >
static void	addInPlace (T &res, const T &other1, const T &other2)
	Operate: 'res' = 'other1' + 'other2'.
template<typename T >
static T	product (const T &other, double cst)
	Return 'other' * 'cst'.
template<typename T >
static void	productInPlace (T &res, const T &other, double cst)
	Operate: 'res' = 'other' * 'cst'.
template<typename T >
static T	prodHadamard (const T &other1, const T &other2)
	Return: 'other1' * 'other2' (where '*' designates the element-wise product)
template<typename T >
static void	prodHadamardInPlace (T &res, const T &other1, const T &other2)
	Operate: 'res' = 'other1' * 'other2' (where '*' designates the element-wise prodtc)
template<typename T >
static T	linearCombination (double addition, double val1, const T &other1, double val2=0., const T &other2=T(), double val3=0., const T &other3=T())
	Return: 'val1' * 'other1' + 'val2' * 'other2' + 'val3' * 'other3' + 'addition'.
template<typename T >
static void	linearCombinationInPlace (T &res, double addition, double val1, const T &other1, double val2=0., const T &other2=T(), double val3=0., const T &other3=T())
	Operate: 'res' = 'val1' * 'other1' + 'val2' * 'other2' + 'val3' * 'other3' + 'addition'.
template<typename T >
static T	product (const T &other1, const T &other2, bool transpose1=false, bool transpose2=false)
	Return: 'other1' * 'other2'.
template<typename T >
static void	productInPlace (T &res, const T &other1, const T &other2, bool transpose1=false, bool transpose2=false)
	Operate: 'res' = 'other1' * 'other2'.
template<typename T >
static void	productInPlace (T &res, const T &other2, bool transpose2=false)
	Operate: 'res' = 'res' * 'other1'.
template<typename T >
static	product (const T &other, const 1 &vec, bool transpose=false, bool flagInit=true)
	Return: 'other' * 'vec'.
template<typename T >
static void	productInPlace (1 &res, const T &other, const 1 &vec, bool transpose=false, bool flagInit=true)
	Operate: 'res' = 'other' * 'vec'.
template<typename T >
static void	productInPlace (vect res, const T &other, const constvect vec, bool transpose=false, bool flagInit=true)
	Operate: 'res' = 'other' * 'vec'.
template<typename T >
static	product (const 1 &vec, const T &other, bool transpose=false, bool flagInit=true)
	Return: 'vec' * 'other'.
template<typename T >
static void	productInPlace (1 &res, const 1 &vec, const T &other, bool transpose=false, bool flagInit=true)
	Operate: 'res' = 'vec' * 'other'.
template<typename T >
static void	productInPlace (vect res, const constvect vec, const T &other, bool transpose=false, bool flagInit=true)
	Operate: 'res' = 'vec' * 'other'.
template<typename T >
static T	prodnorm (const T &a, const T &m=T(), bool transpose=false)
	Return: 'a_t' * 'm' * 'a' or 'a' * 'm' * 'a_t' (where 'a_t' is the transpose of 'a')
template<typename T >
static void	prodnormInPlace (T &res, const T &a, const T &m=T(), bool transpose=false)
	Operate: 'res' = 'a_t' * 'm' * 'a' or 'a' * 'm' * 'a_t' (where 'a_t' is the transpose of 'a')
template<typename T >
static T	prodnorm (const T &a, const 1 &vec, bool transpose=false)
	Return: 'a_t' * 'vec' * 'a' or 'a' * 'vec' * 'a_t' (where 'a_t' is the transpose of 'a')
template<typename T >
static void	prodnormInPlace (T &res, const T &a, const 1 &vec, bool transpose=false)
	Operate: 'res' = 'a_t' * 'vec' * 'a' or 'a' * 'vec' * 'a_t' (where 'a_t' is the transpose of 'a')
template<typename T >
static bool	areIdentical (const T &a, const T &b, bool verbose=false)
	Check if two matrices are exactly identical.

Constructor & Destructor Documentation

AMatrix() [1/3]

gstlrn::AMatrix::AMatrix	(	Id	nrow = 0,
		Id	ncol = 0
	)

AMatrix() [2/3]

gstlrn::AMatrix::AMatrix

(

const AMatrix &

m

)

AMatrix() [3/3]

gstlrn::AMatrix::AMatrix ( AMatrix &&  m )

default

~AMatrix()

gstlrn::AMatrix::~AMatrix ( )

virtual

Member Function Documentation

add() [1/2]

template<typename T >

static T gstlrn::AMatrix::add ( const T &  other, double  cst  )

inlinestatic

Return 'other' + 'cst'.

Template Parameters

T	Type of the matrix

Parameters

other	Input matrix
cst	Constant value to be added

add() [2/2]

template<typename T >

static T gstlrn::AMatrix::add ( const T &  other1, const T &  other2  )

inlinestatic

Return 'other1' + 'other2'.

Template Parameters

T	Type of the matrix

Parameters

other1	First Input matrix
other2	Second Input matrix

addInPlace() [1/2]

template<typename T >

static void gstlrn::AMatrix::addInPlace ( T &  res, const T &  other, double  cst  )

inlinestatic

Operate 'res' = 'other' + 'cst'.

Template Parameters

T	Type of the matrix

Parameters

res	Output Matrix
other	Input matrix
cst	Constant value to be added

addInPlace() [2/2]

template<typename T >

static void gstlrn::AMatrix::addInPlace ( T &  res, const T &  other1, const T &  other2  )

inlinestatic

Operate: 'res' = 'other1' + 'other2'.

Template Parameters

T	Type of the matrix

Parameters

res	Output matrix
other1	First Input matrix
other2	Second Input matrix

addValue()

void gstlrn::AMatrix::addValue	(	Id	irow,
		Id	icol,
		double	value
	)

Add a value to a matrix term

areIdentical()

template<typename T >

static bool gstlrn::AMatrix::areIdentical ( const T &  a, const T &  b, bool  verbose = false  )

inlinestatic

Check if two matrices are exactly identical.

Template Parameters

T

Parameters

a	First matrix
b	Second matrix
verbose	Verbose flag

clear()

void gstlrn::AMatrix::clear

(

)

compare()

double gstlrn::AMatrix::compare

(

const AMatrix &

mat

)

const

Returns the sum of absolute difference between argument and this

copyElements()

void gstlrn::AMatrix::copyElements	(	const AMatrix &	m,
		double	factor = 1.
	)

Copy the contents of matrix 'm' into 'this' Warning: matrices must have the same dimensions (not checked)

Parameters

m	Input matrix
factor	Multiplicative factor (applied to each element)

copyReduce()

void gstlrn::AMatrix::copyReduce	(	const AMatrix *	x,
		const 1 &	validRows,
		const 1 &	validCols
	)

divideColumn()

virtual void gstlrn::AMatrix::divideColumn ( const 1 &  vec )

pure virtual

Divide a Matrix column-wise

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

divideRow()

virtual void gstlrn::AMatrix::divideRow ( const 1 &  vec )

pure virtual

Divide a Matrix row-wise

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

dumpElements()

void gstlrn::AMatrix::dumpElements	(	const String &	title,
		Id	ifrom,
		Id	ito
	)		const

Dump a specific range of samples from the internal storage

dumpRange()

void gstlrn::AMatrix::dumpRange

(

const char *

title

)

dumpStatistics()

void gstlrn::AMatrix::dumpStatistics

(

const String &

title

)

const

Dump statistics on the Matrix

empty()

bool gstlrn::AMatrix::empty ( ) const

inline

Returns if the current matrix is Empty

fill()

virtual void gstlrn::AMatrix::fill ( double  value )

pure virtual

Set all the values of the Matrix at once

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

fillRandom()

void gstlrn::AMatrix::fillRandom ( double  zeroPercent = 0, Id  seed = 432432  )

virtual

Reimplemented in gstlrn::MatrixSparse.

getColumn()

gstlrn::AMatrix::getColumn ( Id  icol ) const

virtual

Extract a Column

Reimplemented in gstlrn::MatrixDense.

getColumnByRowRange()

gstlrn::AMatrix::getColumnByRowRange	(	Id	icol,
		Id	rowFrom,
		Id	rowTo
	)		const

Extract a portion of a Column

getDiagonal()

const & gstlrn::AMatrix::getDiagonal

(

Id

shift = 0

)

const

Extract a Diagonal (main or secondary) of this

getMatrixToTriplet()

NF_Triplet gstlrn::AMatrix::getMatrixToTriplet ( Id  shiftRow = 0, Id  shiftCol = 0  ) const

virtual

Extract the contents of the matrix

From a matrix of any type, creates the three vectors of the triplet (specific format for creating efficiently a Sparse matrix) It only takes the only non-zero elements of the matrix

Reimplemented in gstlrn::MatrixSparse.

getMaximum()

double gstlrn::AMatrix::getMaximum

(

)

const

getMeanByColumn()

double gstlrn::AMatrix::getMeanByColumn

(

Id

icol

)

const

getMinimum()

double gstlrn::AMatrix::getMinimum

(

)

const

getNColDefined()

Id gstlrn::AMatrix::getNColDefined

(

)

const

Define the number of defined columns

getNCols()

Id gstlrn::AMatrix::getNCols ( ) const

inline

Returns the number of columns

getNormInf()

double gstlrn::AMatrix::getNormInf

(

)

const

getNRowDefined()

Id gstlrn::AMatrix::getNRowDefined

(

)

const

Define the number of defined rows

getNRows()

Id gstlrn::AMatrix::getNRows ( ) const

inline

Returns the number of rows

getRow()

gstlrn::AMatrix::getRow ( Id  irow ) const

virtual

Extract a Row

Reimplemented in gstlrn::MatrixDense.

getValue()

virtual double gstlrn::AMatrix::getValue ( Id  irow, Id  icol  ) const

pure virtual

Gets the value at row 'irow' and column 'icol'

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

getValues()

gstlrn::AMatrix::getValues

(

bool

byCol = true

)

const

Returns the contents of the whole matrix as a VectorDouble

invert()

Id gstlrn::AMatrix::invert

(

)

Matrix inversion in place

isColumnDefined()

bool gstlrn::AMatrix::isColumnDefined

(

Id

icol

)

const

Checks if a Column is valid (contains a non TEST value)

isDense()

virtual bool gstlrn::AMatrix::isDense ( ) const

pure virtual

Returns if the matrix belongs to the MatrixDense class

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

isIdentity()

bool gstlrn::AMatrix::isIdentity

(

bool

printWhyNot = false

)

const

Check if the matrix is square and Identity

Indicate if the current matrix is the Identity

Parameters

printWhyNot

Print the message is the answer is false

Returns

true if the current matrix is the Identity

isNonNegative()

bool gstlrn::AMatrix::isNonNegative

(

bool

verbose = false

)

const

Check if the matrix does not contain any negative element

Check if all the elements of a matrix are non-negative

Returns

True if the matrix is non-negative; False otherwise

Parameters

[in]

verbose

True for the verbose option

isRowDefined()

bool gstlrn::AMatrix::isRowDefined

(

Id

irow

)

const

Checks if a Row is valid (contains a non TEST value)

isSame()

bool gstlrn::AMatrix::isSame	(	const AMatrix &	m,
		double	eps = EPSILON4,
		bool	printWhyNot = false
	)

Check if a matrix is the same as me (norm L1)

Check that Matrix 'm' is equal to the current Matrix

Parameters

m	Matrix to be compared to the current Matrix
eps	Epsilon for double equality comparison
printWhyNot	Print the message is the answer is false

Returns

true if 'm' is equal to the current Matrix

isSameSize()

bool gstlrn::AMatrix::isSameSize

(

const AMatrix &

m

)

const

Check that 'm' has the same dimensions as 'this'

Check that Matrix 'm' share the same dimensions as current one

Parameters

m	Matrix to be compared to the current Matrix

Returns

true if 'm' has same dimensions as the current Matrix

Remarks

: message is issued if dimensions are different

isSparse()

virtual bool gstlrn::AMatrix::isSparse ( ) const

pure virtual

Returns if the current matrix is Sparse

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

isSquare()

bool gstlrn::AMatrix::isSquare ( bool  printWhyNot = false ) const

virtual

Check if the matrix is (non empty) square

Indicate if the given matrce is a square matrix

Parameters

printWhyNot

Print the message is the answer is false

Returns

true if the matrix is square

Reimplemented in gstlrn::MatrixSquare.

isSymmetric()

bool gstlrn::AMatrix::isSymmetric ( double  eps = EPSILON10, bool  printWhyNot = false  ) const

virtual

Check if the input matrix is (non empty and square) symmetric

Indicate if the current matrix is symmetric

Parameters

eps	Epsilon for double equality comparison
printWhyNot	Print the message is the answer is false

Returns

true if the current matrix is symmetric

Reimplemented in gstlrn::MatrixSymmetric.

isValid()

bool gstlrn::AMatrix::isValid	(	Id	irow,
		Id	icol,
		bool	printWhyNot = false
	)		const

Indicate if the given indices are valid for the current matrix size

Indicate if the given indices are valid for the current matrix size

Parameters

irow	Row index
icol	Column index
printWhyNot	Print the message is the answer is false

Returns

true if indices are valid for the current matrix size

linearCombination()

template<typename T >

static T gstlrn::AMatrix::linearCombination ( double  addition, double  val1, const T &  other1, double  val2 = 0., const T &  other2 = T(), double  val3 = 0., const T &  other3 = T()  )

inlinestatic

Return: 'val1' * 'other1' + 'val2' * 'other2' + 'val3' * 'other3' + 'addition'.

Template Parameters

T

Parameters

addition	Constant to be added to the linear combination
val1	Weight of the first matrix
other1	First matrix
val2	Weight of the second matrix
other2	Second matrix
val3	Weight of the third matrix
other3	Third matrix

linearCombinationInPlace()

template<typename T >

static void gstlrn::AMatrix::linearCombinationInPlace ( T &  res, double  addition, double  val1, const T &  other1, double  val2 = 0., const T &  other2 = T(), double  val3 = 0., const T &  other3 = T()  )

inlinestatic

Operate: 'res' = 'val1' * 'other1' + 'val2' * 'other2' + 'val3' * 'other3' + 'addition'.

Template Parameters

T

Parameters

res	Output matrix
addition	Constant to be added to the linear combination
val1	Weight of the first matrix
other1	First matrix
val2	Weight of the second matrix
other2	Second matrix
val3	Weight of the third matrix
other3	Third matrix

makePositiveColumn()

void gstlrn::AMatrix::makePositiveColumn

(

)

Modify the contents of the matrix so that each column has a positive sum of elements. If this is not the case, simply invert the sign of the column

multiplyColumn()

virtual void gstlrn::AMatrix::multiplyColumn ( const 1 &  vec )

pure virtual

Multiply a Matrix column-wise

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

multiplyRow()

virtual void gstlrn::AMatrix::multiplyRow ( const 1 &  vec )

pure virtual

Multiply a Matrix row-wise

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

mustBeSymmetric()

virtual bool gstlrn::AMatrix::mustBeSymmetric ( ) const

inlinevirtual

Say if the matrix must be symmetric

Reimplemented in gstlrn::MatrixSymmetric, gstlrn::MatrixDense, and gstlrn::MatrixSquare.

operator()() [1/2]

double & gstlrn::AMatrix::operator() ( Id  row, Id  col  )

inline

Set value operator

operator()() [2/2]

double gstlrn::AMatrix::operator() ( Id  row, Id  col  ) const

inline

Get value operator

operator=() [1/2]

AMatrix & gstlrn::AMatrix::operator= ( AMatrix &&  m )

default

operator=() [2/2]

AMatrix & gstlrn::AMatrix::operator=

(

const AMatrix &

m

)

prodHadamard()

template<typename T >

static T gstlrn::AMatrix::prodHadamard ( const T &  other1, const T &  other2  )

inlinestatic

Return: 'other1' * 'other2' (where '*' designates the element-wise product)

Template Parameters

T	Type of the matrix

Parameters

other1	First input matrix
other2	Second input matrix

prodHadamardInPlace()

template<typename T >

static void gstlrn::AMatrix::prodHadamardInPlace ( T &  res, const T &  other1, const T &  other2  )

inlinestatic

Operate: 'res' = 'other1' * 'other2' (where '*' designates the element-wise prodtc)

Template Parameters

T	Type of the matrix

Parameters

res	Output matrix
other1	First input matrix
other2	Second input matrix

prodMatMatInPlace() [1/2]

void gstlrn::AMatrix::prodMatMatInPlace ( const AMatrix *  x, const AMatrix *  y, bool  transposeX = false, bool  transposeY = false  )

virtual

Perform 'this' = 'x' * 'y'

Store the product of 'x'(or 't(x)') by 'y' (or 't(y') in this

Parameters

x	First Matrix
y	Second matrix
transposeX	True if first matrix must be transposed
transposeY	True if second matrix must be transposed

Reimplemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

prodMatMatInPlace() [2/2]

template<class MA , class MB , class MC >

static void gstlrn::AMatrix::prodMatMatInPlace ( MA &  A, const MB &  B, const MC &  C, bool  transposeB = false, bool  transposeC = false  )

inlinestatic

prodnorm() [1/2]

template<typename T >

static T gstlrn::AMatrix::prodnorm ( const T &  a, const 1 &  vec, bool  transpose = false  )

inlinestatic

Return: 'a_t' * 'vec' * 'a' or 'a' * 'vec' * 'a_t' (where 'a_t' is the transpose of 'a')

Template Parameters

T

Parameters

a	First matrix
vec	Vector
transpose	True if first 'a' is transposed; otherwise second 'a' is transposed

prodnorm() [2/2]

template<typename T >

static T gstlrn::AMatrix::prodnorm ( const T &  a, const T &  m = T(), bool  transpose = false  )

inlinestatic

Return: 'a_t' * 'm' * 'a' or 'a' * 'm' * 'a_t' (where 'a_t' is the transpose of 'a')

Template Parameters

T

Parameters

a	First matrix
m	Second matrix (may be omitted)
transpose	True if first 'a' is transposed; otherwise second 'a' is transposed

prodnormInPlace() [1/2]

template<typename T >

static void gstlrn::AMatrix::prodnormInPlace ( T &  res, const T &  a, const 1 &  vec, bool  transpose = false  )

inlinestatic

Operate: 'res' = 'a_t' * 'vec' * 'a' or 'a' * 'vec' * 'a_t' (where 'a_t' is the transpose of 'a')

Template Parameters

T

Parameters

res	Output matrix
a	First matrix
vec	Vector
transpose	True if first 'a' is transposed; otherwise second 'a' is transposed

prodnormInPlace() [2/2]

template<typename T >

static void gstlrn::AMatrix::prodnormInPlace ( T &  res, const T &  a, const T &  m = T(), bool  transpose = false  )

inlinestatic

Operate: 'res' = 'a_t' * 'm' * 'a' or 'a' * 'm' * 'a_t' (where 'a_t' is the transpose of 'a')

Template Parameters

T

Parameters

res	Output matrix
a	First matrix
m	Second matrix (may be omitted)
transpose	True if first 'a' is transposed; otherwise second 'a' is transposed

prodNormMatInPlace()

void gstlrn::AMatrix::prodNormMatInPlace ( const AMatrix *  a, bool  transpose = false  )

virtual

Perform 'this' = 't(A)' %*% 'A' or 'A' %*% 't(A)'

Reimplemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

prodNormMatMatInPlace()

void gstlrn::AMatrix::prodNormMatMatInPlace ( const AMatrix *  a, const AMatrix *  m, bool  transpose = false  )

virtual

Perform 'this' = 't(A)' %*% 'M' %*% 'A' or 'A' %*% 'M' %*% 't(A)'

Product 't(A)' %*% 'M' %*% 'A' or 'A' %*% 'M' %*% 't(A)' stored in 'this'

Parameters

a	Matrix A
m	Matrix M
transpose	True for first implementation, False for the second

Reimplemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

prodNormMatVecInPlace()

void gstlrn::AMatrix::prodNormMatVecInPlace ( const AMatrix *  a, const 1 &  vec, bool  transpose = false  )

virtual

Perform 'this' = 't(A)' %*% 'vec' %*% 'A' or 'A' %*% 'vec' %*% 't(A)'

Reimplemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

product() [1/4]

template<typename T >

static gstlrn::AMatrix::product ( const 1 &  vec, const T &  other, bool  transpose = false, bool  flagInit = true  )

inlinestatic

Return: 'vec' * 'other'.

Template Parameters

T

Parameters

other	First matrix
vec	Vector
transpose	True if 'other' must be transposed
flagInit	True if the resulting vector must be initialized beforehand

product() [2/4]

template<typename T >

static gstlrn::AMatrix::product ( const T &  other, const 1 &  vec, bool  transpose = false, bool  flagInit = true  )

inlinestatic

Return: 'other' * 'vec'.

Template Parameters

T

Parameters

other	First matrix
vec	Vector
transpose	True if 'other' must be transposed
flagInit	True if the resulting vector must be initialized beforehand

product() [3/4]

template<typename T >

static T gstlrn::AMatrix::product ( const T &  other, double  cst  )

inlinestatic

Return 'other' * 'cst'.

Template Parameters

T	Type of the matrix

Parameters

other	Input matrix
cst	Constant value to be multiplied

product() [4/4]

template<typename T >

static T gstlrn::AMatrix::product ( const T &  other1, const T &  other2, bool  transpose1 = false, bool  transpose2 = false  )

inlinestatic

Return: 'other1' * 'other2'.

Template Parameters

T

Parameters

other1	First matrix
other2	Second matrix
transpose1	True if 'other1' must be transposed
transpose2	True if 'other2' must be transposed

productInPlace() [1/7]

template<typename T >

static void gstlrn::AMatrix::productInPlace ( 1 &  res, const 1 &  vec, const T &  other, bool  transpose = false, bool  flagInit = true  )

inlinestatic

Operate: 'res' = 'vec' * 'other'.

Template Parameters

T

Parameters

res	Output vector
other	First matrix
vec	Vector
transpose	True if 'other' must be transposed
flagInit	True if the resulting vector must be initialized beforehand

productInPlace() [2/7]

template<typename T >

static void gstlrn::AMatrix::productInPlace ( 1 &  res, const T &  other, const 1 &  vec, bool  transpose = false, bool  flagInit = true  )

inlinestatic

Operate: 'res' = 'other' * 'vec'.

Template Parameters

T

Parameters

res	Output vector
other	First matrix
vec	Vector
transpose	True if 'other' must be transposed
flagInit	True if the resulting vector must be initialized beforehand

productInPlace() [3/7]

template<typename T >

static void gstlrn::AMatrix::productInPlace ( T &  res, const T &  other, double  cst  )

inlinestatic

Operate: 'res' = 'other' * 'cst'.

Template Parameters

T	Type of the matrix

Parameters

res	Output matrix
other	Input matrix
cst	Constant value to be multiplied

productInPlace() [4/7]

template<typename T >

static void gstlrn::AMatrix::productInPlace ( T &  res, const T &  other1, const T &  other2, bool  transpose1 = false, bool  transpose2 = false  )

inlinestatic

Operate: 'res' = 'other1' * 'other2'.

Template Parameters

T

Parameters

res	Output matrix
other1	First matrix
other2	Second matrix
transpose1	True if 'other1' must be transposed
transpose2	True if 'other2' must be transposed

productInPlace() [5/7]

template<typename T >

static void gstlrn::AMatrix::productInPlace ( T &  res, const T &  other2, bool  transpose2 = false  )

inlinestatic

Operate: 'res' = 'res' * 'other1'.

Template Parameters

T

Parameters

res	Output matrix
other2	First matrix
transpose2	True if 'other2' must be transposed

productInPlace() [6/7]

template<typename T >

static void gstlrn::AMatrix::productInPlace ( vect  res, const constvect  vec, const T &  other, bool  transpose = false, bool  flagInit = true  )

inlinestatic

Operate: 'res' = 'vec' * 'other'.

Template Parameters

T

Parameters

res	Output vector
other	First matrix
vec	Vector
transpose	True if 'other' must be transposed
flagInit	True if the resulting vector must be initialized beforehand

productInPlace() [7/7]

template<typename T >

static void gstlrn::AMatrix::productInPlace ( vect  res, const T &  other, const constvect  vec, bool  transpose = false, bool  flagInit = true  )

inlinestatic

Operate: 'res' = 'other' * 'vec'.

Template Parameters

T

Parameters

res	Output matrix
other	First matrix
vec	Vector
transpose	True if 'other' must be transposed
flagInit	True if the resulting vector must be initialized beforehand

prodVecMatVec()

double gstlrn::AMatrix::prodVecMatVec	(	const 1 &	x,
		const 1 &	y
	)		const

Perform x %*% 'this' %*% y

reset()

void gstlrn::AMatrix::reset ( Id  nrows, Id  ncols  )

virtual

Reimplemented in gstlrn::Table.

resetFromArray()

void gstlrn::AMatrix::resetFromArray ( Id  nrows, Id  ncols, const double *  tab, bool  byCol = true  )

virtual

Reset the matrix from an array of double values.

Parameters

nrows	New number of rows
ncols	New number of columns
tab	The array of values
byCol	True if values are column-major in the array

Reimplemented in gstlrn::MatrixSparse.

resetFromValue()

void gstlrn::AMatrix::resetFromValue ( Id  nrows, Id  ncols, double  value  )

virtual

Reset the matrix to new dimensions and fill with a new value.

Parameters

nrows	New number of rows
ncols	New number of columns
value	The new value used to fill the matrix

Reimplemented in gstlrn::MatrixSparse.

resetFromVD()

void gstlrn::AMatrix::resetFromVD ( Id  nrows, Id  ncols, const 1 &  tab, bool  byCol = true  )

virtual

Reset the matrix from a vector of double values.

Parameters

nrows	New number of rows
ncols	New number of columns
tab	The vector of values
byCol	True if values are column-major in the vector

Reimplemented in gstlrn::MatrixSparse.

resetFromVVD()

void gstlrn::AMatrix::resetFromVVD ( const 1 &  tab, bool  byCol = true  )

virtual

Reset the matrix from an array of double values.

Parameters

tab	The array of values
byCol	True if values are column-major in the array

Reimplemented in gstlrn::MatrixSparse, gstlrn::MatrixSquare, and gstlrn::MatrixSymmetric.

resize()

void gstlrn::AMatrix::resize	(	Id	nrows,
		Id	ncols
	)

Resize the matrix to new dimensions (this method doesn't change the storage type)

Modify the dimension of the matrix (if needed)

Parameters

nrows	New number of rows
ncols	New number of columns

setColumn()

virtual void gstlrn::AMatrix::setColumn ( Id  icol, const 1 &  tab  )

pure virtual

Set the contents of a Column

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setColumnToConstant()

virtual void gstlrn::AMatrix::setColumnToConstant ( Id  icol, double  value  )

pure virtual

Set the contents of a Column to a constant value

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setDiagonal()

virtual void gstlrn::AMatrix::setDiagonal ( const 1 &  tab )

pure virtual

Set the contents of the (main) Diagonal

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setDiagonalToConstant()

virtual void gstlrn::AMatrix::setDiagonalToConstant ( double  value = 1. )

pure virtual

Set the contents of the (main) Diagonal to a constant value

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setIdentity()

void gstlrn::AMatrix::setIdentity

(

double

value = 1.

)

Sets the matrix as Identity

setRow()

virtual void gstlrn::AMatrix::setRow ( Id  irow, const 1 &  tab  )

pure virtual

Set the contents of a Row

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setRowToConstant()

virtual void gstlrn::AMatrix::setRowToConstant ( Id  irow, double  value  )

pure virtual

Set the contents of a Row to a constant value

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setValue()

virtual void gstlrn::AMatrix::setValue ( Id  irow, Id  icol, double  value  )

pure virtual

Sets the value at row 'irow' and column 'icol'

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setValues()

void gstlrn::AMatrix::setValues	(	const 1 &	values,
		bool	byCol = true
	)

Filling the matrix with an array of values Note that this array is ALWAYS dimensioned to the total number of elements in the matrix. Kept for compatibility with old code where matrix contents was stored as a VectorDouble

Parameters

values
byCol	true for Column major; false for Row Major

size()

Id gstlrn::AMatrix::size ( ) const

inline

Get the total number of elements of the (full) matrix (as for VectorT)

solve()

Id gstlrn::AMatrix::solve	(	const 1 &	b,
		1 &	x
	)		const

Solving the Matrix Linear system

toString()

String gstlrn::AMatrix::toString ( const AStringFormat *  strfmt = nullptr ) const

overridevirtual

Interface to AStringable.

Reimplemented from gstlrn::AStringable.

Reimplemented in gstlrn::ProjMatrix, and gstlrn::Table.

transpose()

AMatrix * gstlrn::AMatrix::transpose ( ) const

virtual

Transpose the matrix and return it as a copy

Reimplemented in gstlrn::MatrixSparse.

transposeInPlace()

void gstlrn::AMatrix::transposeInPlace ( )

virtual

Transpose the matrix in place

updValue()

virtual void gstlrn::AMatrix::updValue ( Id  irow, Id  icol, const EOperator &  oper, double  value  )

pure virtual

Update the value at row 'irow' and column 'icol'

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

---

The documentation for this class was generated from the following files:

• include/Matrix/AMatrix.hpp
• src/Matrix/AMatrix.cpp
