gstlrn::AMatrix Class Reference

TODO : Transform into template for storing something else than double. More...

#include <AMatrix.hpp>

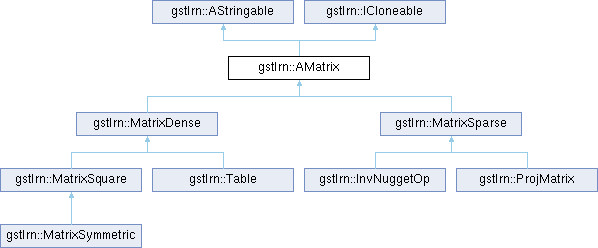

Inheritance diagram for gstlrn::AMatrix:

Detailed Description

TODO : Transform into template for storing something else than double.

This class is the root of the Matrix organization in gstlearn A matrix is a 2-D organization: it is characterized by its number of rows and its number of columns. Although the user should not bother with this remark, the elements of a matrix processed in 'gstlearn' are stored in a Row-major format. This is to say that the internal rank of an element characterized by its row and column numbers is: (icol * getNRows() + irow)

Since gstlearn version v1.3:

• Dense Matrices storage and algebra rely on Eigen3 library
• Sparse Matrices storage and algebra rely on Eigen3 library

Public Member Functions
	AMatrix (Id nrow=0, Id ncol=0)
	AMatrix (const AMatrix &m)
AMatrix &	operator= (const AMatrix &m)
virtual	~AMatrix ()
String	toString (const AStringFormat *strfmt=nullptr) const override
	Interface to AStringable.
virtual bool	isSparse () const =0
	Functions to be implemented in derived classes.
virtual bool	isDense () const =0
virtual double	getValue (Id irow, Id icol) const =0
virtual void	setValue (Id irow, Id icol, double value)=0
virtual void	updValue (Id irow, Id icol, const EOperator &oper, double value)=0
virtual void	setColumn (Id icol, const 1 &tab)=0
virtual void	setColumnToConstant (Id icol, double value)=0
virtual void	setRow (Id irow, const 1 &tab)=0
virtual void	setRowToConstant (Id irow, double value)=0
virtual void	setDiagonal (const 1 &tab)=0
virtual void	setDiagonalToConstant (double value=1.)=0
virtual void	addScalar (double v)=0
virtual void	addScalarDiag (double v)=0
virtual void	prodScalar (double v)=0
virtual void	fill (double value)=0
virtual void	multiplyRow (const 1 &vec)=0
virtual void	multiplyColumn (const 1 &vec)=0
virtual void	divideRow (const 1 &vec)=0
virtual void	divideColumn (const 1 &vec)=0
virtual bool	isSquare (bool printWhyNot=false) const
virtual bool	isSymmetric (double eps=EPSILON10, bool printWhyNot=false) const
virtual bool	mustBeSymmetric () const
virtual void	reset (Id nrows, Id ncols)
virtual void	resetFromValue (Id nrows, Id ncols, double value)
	Reset the matrix to new dimensions and fill with a new value.
virtual void	resetFromArray (Id nrows, Id ncols, const double *tab, bool byCol=true)
	Reset the matrix from an array of double values.
virtual void	resetFromVD (Id nrows, Id ncols, const 1 &tab, bool byCol=true)
	Reset the matrix from a vector of double values.
virtual void	resetFromVVD (const 1 &tab, bool byCol=true)
	Reset the matrix from an array of double values.
virtual void	transposeInPlace ()
virtual AMatrix *	transpose () const
virtual	getRow (Id irow) const
virtual	getColumn (Id icol) const
virtual void	prodMatMatInPlace (const AMatrix *x, const AMatrix *y, bool transposeX=false, bool transposeY=false)
virtual void	prodNormMatMatInPlace (const AMatrix *a, const AMatrix *m, bool transpose=false)
virtual void	prodNormMatVecInPlace (const AMatrix *a, const 1 &vec, bool transpose=false)
virtual void	prodNormMatInPlace (const AMatrix *a, bool transpose=false)
virtual void	linearCombination (double val1, const AMatrix *mat1, double val2=1., const AMatrix *mat2=nullptr, double val3=1., const AMatrix *mat3=nullptr)
	Perfom the algebraic equation this = val1 * mat1 + val2 * mat2 + val3 * mat3.
virtual void	addMat (const AMatrix &y, double cx=1., double cy=1.)
virtual NF_Triplet	getMatrixToTriplet (Id shiftRow=0, Id shiftCol=0) const
void	clear ()
void	resize (Id nrows, Id ncols)
	Resize the matrix to new dimensions (this method doesn't change the storage type)
bool	isValid (Id irow, Id icol, bool printWhyNot=false) const
bool	isIdentity (bool printWhyNot=false) const
void	addValue (Id irow, Id icol, double value)
bool	isSame (const AMatrix &m, double eps=EPSILON4, bool printWhyNot=false)
bool	isSameSize (const AMatrix &m) const
bool	empty () const
double	compare (const AMatrix &mat) const
Id	getNRows () const
Id	getNCols () const
Id	size () const
	getValues (bool byCol=true) const
const &	getDiagonal (Id shift=0) const
bool	isColumnDefined (Id icol) const
bool	isRowDefined (Id irow) const
Id	getNColDefined () const
Id	getNRowDefined () const
	getColumnByRowRange (Id icol, Id rowFrom, Id rowTo) const
bool	isNonNegative (bool verbose=false) const
	prodMatVec (const 1 &x, bool transpose=false) const
void	prodMatVecInPlace (const 1 &x, 1 &y, bool transpose=false) const
void	prodMatVecInPlaceC (const constvect x, vect y, bool transpose=false) const
void	addProdMatVecInPlaceC (const constvect x, vect y, bool transpose=false) const
	prodVecMat (const 1 &x, bool transpose=false) const
void	prodVecMatInPlace (const 1 &x, 1 &y, bool transpose=false) const
void	prodVecMatInPlaceC (const constvect x, vect y, bool transpose=false) const
void	addProdVecMatInPlaceC (const constvect x, vect y, bool transpose=false) const
double	prodVecMatVec (const 1 &x, const 1 &y) const
void	prodMat (const AMatrix *matY, bool transposeY=false)
Id	invert ()
Id	solve (const 1 &b, 1 &x) const
void	dumpElements (const String &title, Id ifrom, Id ito) const
void	dumpStatistics (const String &title) const
void	setIdentity (double value=1.)
void	fillRandom (Id seed=432432, double zeroPercent=0)
void	setValues (const 1 &values, bool byCol=true)
double	getMeanByColumn (Id icol) const
double	getMinimum () const
double	getMaximum () const
double	getNormInf () const
void	copyReduce (const AMatrix *x, const 1 &validRows, const 1 &validCols)
void	copyElements (const AMatrix &m, double factor=1.)
void	makePositiveColumn ()
void	dumpRange (const char *title)
double	operator() (Id row, Id col) const
double &	operator() (Id row, Id col)
Public Member Functions inherited from gstlrn::AStringable
	AStringable ()
	AStringable (const AStringable &r)
AStringable &	operator= (const AStringable &r)
virtual	~AStringable ()
virtual void	display (const AStringFormat *strfmt=nullptr) const final
virtual void	display (Id level) const final
Public Member Functions inherited from gstlrn::ICloneable
	ICloneable ()
virtual	~ICloneable ()
virtual ICloneable *	clone () const =0
std::shared_ptr< ICloneable >	cloneShared () const
std::unique_ptr< ICloneable >	cloneUnique () const

Constructor & Destructor Documentation

AMatrix() [1/2]

gstlrn::AMatrix::AMatrix	(	Id	nrow = 0,
		Id	ncol = 0
	)

AMatrix() [2/2]

gstlrn::AMatrix::AMatrix

(

const AMatrix &

m

)

~AMatrix()

gstlrn::AMatrix::~AMatrix ( )

virtual

Member Function Documentation

addMat()

void gstlrn::AMatrix::addMat ( const AMatrix &  y, double  cx = 1., double  cy = 1.  )

virtual

Add a matrix (multiplied by a constant)

Add the matrix 'y' to the current Matrix

Parameters

y	Matrix to be added
cx	Multiplicative parameter for this
cy	Multiplicative parameter for y

Reimplemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

addProdMatVecInPlaceC()

void gstlrn::AMatrix::addProdMatVecInPlaceC	(	const constvect	x,
		vect	y,
		bool	transpose = false
	)		const

addProdVecMatInPlaceC()

void gstlrn::AMatrix::addProdVecMatInPlaceC	(	const constvect	x,
		vect	y,
		bool	transpose = false
	)		const

addScalar()

virtual void gstlrn::AMatrix::addScalar ( double  v )

pure virtual

Add a value to each matrix component

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

addScalarDiag()

virtual void gstlrn::AMatrix::addScalarDiag ( double  v )

pure virtual

Add value to matrix diagonal

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

addValue()

void gstlrn::AMatrix::addValue	(	Id	irow,
		Id	icol,
		double	value
	)

Add a value to a matrix term

clear()

void gstlrn::AMatrix::clear

(

)

compare()

double gstlrn::AMatrix::compare

(

const AMatrix &

mat

)

const

Returns the sum of absolute difference between argument and this

copyElements()

void gstlrn::AMatrix::copyElements	(	const AMatrix &	m,
		double	factor = 1.
	)

Copy the contents of matrix 'm' into 'this' Warning: matrices must have the same dimensions (not checked)

Parameters

m	Input matrix
factor	Multiplicative factor (applied to each element)

copyReduce()

void gstlrn::AMatrix::copyReduce	(	const AMatrix *	x,
		const 1 &	validRows,
		const 1 &	validCols
	)

divideColumn()

virtual void gstlrn::AMatrix::divideColumn ( const 1 &  vec )

pure virtual

Divide a Matrix column-wise

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

divideRow()

virtual void gstlrn::AMatrix::divideRow ( const 1 &  vec )

pure virtual

Divide a Matrix row-wise

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

dumpElements()

void gstlrn::AMatrix::dumpElements	(	const String &	title,
		Id	ifrom,
		Id	ito
	)		const

Dump a specific range of samples from the internal storage

dumpRange()

void gstlrn::AMatrix::dumpRange

(

const char *

title

)

dumpStatistics()

void gstlrn::AMatrix::dumpStatistics

(

const String &

title

)

const

Dump statistics on the Matrix

empty()

bool gstlrn::AMatrix::empty ( ) const

inline

Returns if the current matrix is Empty

fill()

virtual void gstlrn::AMatrix::fill ( double  value )

pure virtual

Set all the values of the Matrix at once

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

fillRandom()

void gstlrn::AMatrix::fillRandom	(	Id	seed = 432432,
		double	zeroPercent = 0
	)

getColumn()

gstlrn::AMatrix::getColumn ( Id  icol ) const

virtual

Extract a Column

Reimplemented in gstlrn::MatrixDense.

getColumnByRowRange()

gstlrn::AMatrix::getColumnByRowRange	(	Id	icol,
		Id	rowFrom,
		Id	rowTo
	)		const

Extract a portion of a Column

getDiagonal()

const & gstlrn::AMatrix::getDiagonal

(

Id

shift = 0

)

const

Extract a Diagonal (main or secondary) of this

getMatrixToTriplet()

NF_Triplet gstlrn::AMatrix::getMatrixToTriplet ( Id  shiftRow = 0, Id  shiftCol = 0  ) const

virtual

Extract the contents of the matrix

From a matrix of any type, creates the three vectors of the triplet (specific format for creating efficiently a Sparse matrix) It only takes the only non-zero elements of the matrix

Reimplemented in gstlrn::MatrixSparse.

getMaximum()

double gstlrn::AMatrix::getMaximum

(

)

const

getMeanByColumn()

double gstlrn::AMatrix::getMeanByColumn

(

Id

icol

)

const

getMinimum()

double gstlrn::AMatrix::getMinimum

(

)

const

getNColDefined()

Id gstlrn::AMatrix::getNColDefined

(

)

const

Define the number of defined columns

getNCols()

Id gstlrn::AMatrix::getNCols ( ) const

inline

Returns the number of columns

getNormInf()

double gstlrn::AMatrix::getNormInf

(

)

const

getNRowDefined()

Id gstlrn::AMatrix::getNRowDefined

(

)

const

Define the number of defined rows

getNRows()

Id gstlrn::AMatrix::getNRows ( ) const

inline

Returns the number of rows

getRow()

gstlrn::AMatrix::getRow ( Id  irow ) const

virtual

Extract a Row

Reimplemented in gstlrn::MatrixDense.

getValue()

virtual double gstlrn::AMatrix::getValue ( Id  irow, Id  icol  ) const

pure virtual

Gets the value at row 'irow' and column 'icol'

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

getValues()

gstlrn::AMatrix::getValues

(

bool

byCol = true

)

const

Returns the contents of the whole matrix as a VectorDouble

invert()

Id gstlrn::AMatrix::invert

(

)

Matrix inversion in place

isColumnDefined()

bool gstlrn::AMatrix::isColumnDefined

(

Id

icol

)

const

Checks if a Column is valid (contains a non TEST value)

isDense()

virtual bool gstlrn::AMatrix::isDense ( ) const

pure virtual

Returns if the matrix belongs to the MatrixDense class

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

isIdentity()

bool gstlrn::AMatrix::isIdentity

(

bool

printWhyNot = false

)

const

Check if the matrix is square and Identity

Indicate if the current matrix is the Identity

Parameters

printWhyNot

Print the message is the answer is false

Returns

true if the current matrix is the Identity

isNonNegative()

bool gstlrn::AMatrix::isNonNegative

(

bool

verbose = false

)

const

Check if the matrix does not contain any negative element

Check if all the elements of a matrix are non-negative

Returns

True if the matrix is non-negative; False otherwise

Parameters

[in]

verbose

True for the verbose option

isRowDefined()

bool gstlrn::AMatrix::isRowDefined

(

Id

irow

)

const

Checks if a Row is valid (contains a non TEST value)

isSame()

bool gstlrn::AMatrix::isSame	(	const AMatrix &	m,
		double	eps = EPSILON4,
		bool	printWhyNot = false
	)

Check if a matrix is the same as me (norm L1)

Check that Matrix 'm' is equal to the current Matrix

Parameters

m	Matrix to be compared to the current Matrix
eps	Epsilon for double equality comparison
printWhyNot	Print the message is the answer is false

Returns

true if 'm' is equal to the current Matrix

isSameSize()

bool gstlrn::AMatrix::isSameSize

(

const AMatrix &

m

)

const

Check that 'm' has the same dimensions as 'this'

Check that Matrix 'm' share the same dimensions as current one

Parameters

m	Matrix to be compared to the current Matrix

Returns

true if 'm' has same dimensions as the current Matrix

Remarks

: message is issued if dimensions are different

isSparse()

virtual bool gstlrn::AMatrix::isSparse ( ) const

pure virtual

Functions to be implemented in derived classes.

Returns if the current matrix is Sparse

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

isSquare()

bool gstlrn::AMatrix::isSquare ( bool  printWhyNot = false ) const

virtual

Check if the matrix is (non empty) square

Indicate if the given matrce is a square matrix

Parameters

printWhyNot

Print the message is the answer is false

Returns

true if the matrix is square

Reimplemented in gstlrn::MatrixSquare.

isSymmetric()

bool gstlrn::AMatrix::isSymmetric ( double  eps = EPSILON10, bool  printWhyNot = false  ) const

virtual

Check if the input matrix is (non empty and square) symmetric

Indicate if the current matrix is symmetric

Parameters

eps	Epsilon for double equality comparison
printWhyNot	Print the message is the answer is false

Returns

true if the current matrix is symmetric

Reimplemented in gstlrn::MatrixSymmetric.

isValid()

bool gstlrn::AMatrix::isValid	(	Id	irow,
		Id	icol,
		bool	printWhyNot = false
	)		const

Indicate if the given indices are valid for the current matrix size

Indicate if the given indices are valid for the current matrix size

Parameters

irow	Row index
icol	Column index
printWhyNot	Print the message is the answer is false

Returns

true if indices are valid for the current matrix size

linearCombination()

void gstlrn::AMatrix::linearCombination ( double  val1, const AMatrix *  mat1, double  val2 = 1., const AMatrix *  mat2 = nullptr, double  val3 = 1., const AMatrix *  mat3 = nullptr  )

virtual

Perfom the algebraic equation this = val1 * mat1 + val2 * mat2 + val3 * mat3.

Perform 'this' = 'val1' * 'mat1' + 'val2' * 'mat2' + 'val3' * 'mat3'

Parameters

val1	Coefficient of first matrx
mat1	First matrix (optional)
val2	Coefficient of second matrix
mat2	Second matrix (optional)
val3	Coefficient of third matrix
mat3	Third matrix (optional)

Reimplemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

makePositiveColumn()

void gstlrn::AMatrix::makePositiveColumn

(

)

Modify the contents of the matrix so that each column has a positive sum of elements. If this is not the case, simply invert the sign of the column

multiplyColumn()

virtual void gstlrn::AMatrix::multiplyColumn ( const 1 &  vec )

pure virtual

Multiply a Matrix column-wise

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

multiplyRow()

virtual void gstlrn::AMatrix::multiplyRow ( const 1 &  vec )

pure virtual

Multiply a Matrix row-wise

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

mustBeSymmetric()

virtual bool gstlrn::AMatrix::mustBeSymmetric ( ) const

inlinevirtual

Say if the matrix must be symmetric

Reimplemented in gstlrn::MatrixSymmetric, gstlrn::MatrixDense, and gstlrn::MatrixSquare.

operator()() [1/2]

double & gstlrn::AMatrix::operator() ( Id  row, Id  col  )

inline

Set value operator

operator()() [2/2]

double gstlrn::AMatrix::operator() ( Id  row, Id  col  ) const

inline

Get value operator

operator=()

AMatrix & gstlrn::AMatrix::operator=

(

const AMatrix &

m

)

prodMat()

void gstlrn::AMatrix::prodMat	(	const AMatrix *	matY,
		bool	transposeY = false
	)

Perform 'this' = 'y' %*% 'this' or 'this' %*% 'y'

prodMatMatInPlace()

void gstlrn::AMatrix::prodMatMatInPlace ( const AMatrix *  x, const AMatrix *  y, bool  transposeX = false, bool  transposeY = false  )

virtual

Perform 'this' = 'x' * 'y'

Store the product of 'x'(or 't(x)') by 'y' (or 't(y') in this

Parameters

x	First Matrix
y	Second matrix
transposeX	True if first matrix must be transposed
transposeY	True if second matrix must be transposed

Reimplemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

prodMatVec()

gstlrn::AMatrix::prodMatVec	(	const 1 &	x,
		bool	transpose = false
	)		const

Perform 'y' = 'this' * 'x'

prodMatVecInPlace()

void gstlrn::AMatrix::prodMatVecInPlace	(	const 1 &	x,
		1 &	y,
		bool	transpose = false
	)		const

Returns 'y' = 'this' %*% 'x'

Parameters

x	Input vector
y	Output vector
transpose	True if the matrix 'this' must be transposed

prodMatVecInPlaceC()

void gstlrn::AMatrix::prodMatVecInPlaceC	(	const constvect	x,
		vect	y,
		bool	transpose = false
	)		const

prodNormMatInPlace()

void gstlrn::AMatrix::prodNormMatInPlace ( const AMatrix *  a, bool  transpose = false  )

virtual

Perform 'this' = 't(A)' %*% 'A' or 'A' %*% 't(A)'

Reimplemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

prodNormMatMatInPlace()

void gstlrn::AMatrix::prodNormMatMatInPlace ( const AMatrix *  a, const AMatrix *  m, bool  transpose = false  )

virtual

Perform 'this' = 't(A)' %*% 'M' %*% 'A' or 'A' %*% 'M' %*% 't(A)'

Product 't(A)' %*% 'M' %*% 'A' or 'A' %*% 'M' %*% 't(A)' stored in 'this'

Parameters

a	Matrix A
m	Matrix M
transpose	True for first implementation, False for the second

Reimplemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

prodNormMatVecInPlace()

void gstlrn::AMatrix::prodNormMatVecInPlace ( const AMatrix *  a, const 1 &  vec, bool  transpose = false  )

virtual

Perform 'this' = 't(A)' %*% 'vec' %*% 'A' or 'A' %*% 'vec' %*% 't(A)'

Reimplemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

prodScalar()

virtual void gstlrn::AMatrix::prodScalar ( double  v )

pure virtual

Multiply each matrix component by a value

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

prodVecMat()

gstlrn::AMatrix::prodVecMat	(	const 1 &	x,
		bool	transpose = false
	)		const

Perform 'y' = 'x' * 'this'

prodVecMatInPlace()

void gstlrn::AMatrix::prodVecMatInPlace	(	const 1 &	x,
		1 &	y,
		bool	transpose = false
	)		const

prodVecMatInPlaceC()

void gstlrn::AMatrix::prodVecMatInPlaceC	(	const constvect	x,
		vect	y,
		bool	transpose = false
	)		const

prodVecMatVec()

double gstlrn::AMatrix::prodVecMatVec	(	const 1 &	x,
		const 1 &	y
	)		const

Perform x %*% 'this' %*% y

reset()

void gstlrn::AMatrix::reset ( Id  nrows, Id  ncols  )

virtual

Reimplemented in gstlrn::Table.

resetFromArray()

void gstlrn::AMatrix::resetFromArray ( Id  nrows, Id  ncols, const double *  tab, bool  byCol = true  )

virtual

Reset the matrix from an array of double values.

Parameters

nrows	New number of rows
ncols	New number of columns
tab	The array of values
byCol	True if values are column-major in the array

Reimplemented in gstlrn::MatrixSparse.

resetFromValue()

void gstlrn::AMatrix::resetFromValue ( Id  nrows, Id  ncols, double  value  )

virtual

Reset the matrix to new dimensions and fill with a new value.

Parameters

nrows	New number of rows
ncols	New number of columns
value	The new value used to fill the matrix

Reimplemented in gstlrn::MatrixSparse.

resetFromVD()

void gstlrn::AMatrix::resetFromVD ( Id  nrows, Id  ncols, const 1 &  tab, bool  byCol = true  )

virtual

Reset the matrix from a vector of double values.

Parameters

nrows	New number of rows
ncols	New number of columns
tab	The vector of values
byCol	True if values are column-major in the vector

Reimplemented in gstlrn::MatrixSparse.

resetFromVVD()

void gstlrn::AMatrix::resetFromVVD ( const 1 &  tab, bool  byCol = true  )

virtual

Reset the matrix from an array of double values.

Parameters

tab	The array of values
byCol	True if values are column-major in the array

Reimplemented in gstlrn::MatrixSparse, gstlrn::MatrixSquare, and gstlrn::MatrixSymmetric.

resize()

void gstlrn::AMatrix::resize	(	Id	nrows,
		Id	ncols
	)

Resize the matrix to new dimensions (this method doesn't change the storage type)

Modify the dimension of the matrix (if needed)

Parameters

nrows	New number of rows
ncols	New number of columns

setColumn()

virtual void gstlrn::AMatrix::setColumn ( Id  icol, const 1 &  tab  )

pure virtual

Set the contents of a Column

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setColumnToConstant()

virtual void gstlrn::AMatrix::setColumnToConstant ( Id  icol, double  value  )

pure virtual

Set the contents of a Column to a constant value

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setDiagonal()

virtual void gstlrn::AMatrix::setDiagonal ( const 1 &  tab )

pure virtual

Set the contents of the (main) Diagonal

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setDiagonalToConstant()

virtual void gstlrn::AMatrix::setDiagonalToConstant ( double  value = 1. )

pure virtual

Set the contents of the (main) Diagonal to a constant value

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setIdentity()

void gstlrn::AMatrix::setIdentity

(

double

value = 1.

)

Sets the matrix as Identity

setRow()

virtual void gstlrn::AMatrix::setRow ( Id  irow, const 1 &  tab  )

pure virtual

Set the contents of a Row

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setRowToConstant()

virtual void gstlrn::AMatrix::setRowToConstant ( Id  irow, double  value  )

pure virtual

Set the contents of a Row to a constant value

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setValue()

virtual void gstlrn::AMatrix::setValue ( Id  irow, Id  icol, double  value  )

pure virtual

Sets the value at row 'irow' and column 'icol'

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

setValues()

void gstlrn::AMatrix::setValues	(	const 1 &	values,
		bool	byCol = true
	)

Filling the matrix with an array of values Note that this array is ALWAYS dimensioned to the total number of elements in the matrix. Kept for compatibility with old code where matrix contents was stored as a VectorDouble

Parameters

values
byCol	true for Column major; false for Row Major

size()

Id gstlrn::AMatrix::size ( ) const

inline

Get the total number of elements of the (full) matrix

solve()

Id gstlrn::AMatrix::solve	(	const 1 &	b,
		1 &	x
	)		const

Solving the Matrix Linear system

toString()

String gstlrn::AMatrix::toString ( const AStringFormat *  strfmt = nullptr ) const

overridevirtual

Interface to AStringable.

Reimplemented from gstlrn::AStringable.

Reimplemented in gstlrn::ProjMatrix, gstlrn::MatrixSparse, and gstlrn::Table.

transpose()

AMatrix * gstlrn::AMatrix::transpose ( ) const

virtual

Transpose the matrix and return it as a copy

Reimplemented in gstlrn::MatrixSparse.

transposeInPlace()

void gstlrn::AMatrix::transposeInPlace ( )

virtual

Transpose the matrix in place

updValue()

virtual void gstlrn::AMatrix::updValue ( Id  irow, Id  icol, const EOperator &  oper, double  value  )

pure virtual

Update the value at row 'irow' and column 'icol'

Implemented in gstlrn::MatrixDense, and gstlrn::MatrixSparse.

---

The documentation for this class was generated from the following files:

• include/Matrix/AMatrix.hpp
• src/Matrix/AMatrix.cpp
