Class containing the Data Information. More...

#include <Db.hpp>

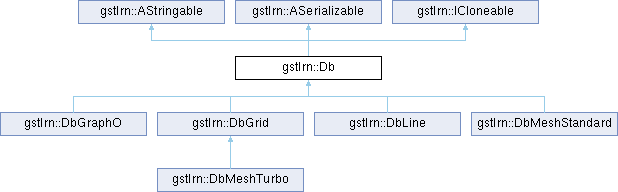

Inheritance diagram for gstlrn::Db:

Detailed Description

Class containing the Data Information.

This Data Set benefits from the comparison to an Excel spread sheet: it can be considered as a Data Frame with a number of rows and a number of columns. The columns will correspond to variables and the rows to samples.

Notes:

For short, this Data Base organization is referred to as Db,
At any time, variables can be added, renamed or deleted,
In the current version, this Data Set is currently limited to numerical contents. The data frame is necessarily completely filled with values: therefore, a specific value stands for a missing value (printed as NA);

Moreover each variable may be assigned a role (or functionality) in the rest of a script. This role is defined by a locator: for example, a variable can serve as a coordinate, or a target variable. The locators can be viewed in the following list (see ELoc.hpp). Note that a variable which does not play any role in particular may be assigned to an idle role (locator NA); This locator may be modified or cancelled (by the user) at any time.

There are two status for these locators: unique or multiple.

Unique. Only one variable can be assigned this unique locator: this is the case for the selection (SEL) as there may be only one current selection activated at a time.

Multiple. Several variable may be assigned the same locator: this is the case for the coordinates (X). In that case, the locator name is followed by its rank (1-based). Then the first coordinate will correspond to the locator X1, the second coordinate to X2, ... Note that:

for a given locator name, the ranks are always consecutive between 1 and N (if it happens that you delete X3, the locator X4 is automatically modified into X3, X5 into X4, and so on up to X{N} into X{N-1}.
there is no limitation in the number of ranks for a given locator name.

Each variable (or column) can be designated:

by its name (unique in the Data Base) or
by its locator (name and rank) or
by its column index (0-based): this designation mode is dangerous (and not recommended) as the index may change over time.

Public Member Functions
	Db ()

	Db (const Db &r)

Db &	operator= (const Db &r)

virtual	~Db ()

String	toString (const AStringFormat *strfmt=nullptr) const override
	ICloneable interface.

virtual bool	isGrid () const
	Interface for Db.

virtual bool	isLine () const

virtual bool	isMesh () const

virtual double	getCoordinate (Id iech, Id idim, bool flag_rotate=true) const

virtual void	getCoordinatesInPlace (1 &coor, Id iech, bool flag_rotate=true) const
	Update the vector of coordinates (optimized manner) No check is done with respect to the dimension of the returned vector.

virtual double	getUnit (Id idim=0) const

virtual Id	getNDim () const

virtual bool	mayChangeSampleNumber () const

virtual void	resetDims (Id ncol, Id nech)

virtual bool	isConsistent () const

Id	resetFromSamples (Id nech, const ELoadBy &order=ELoadBy::fromKey("SAMPLE"), const 1 &tab=1(), const VectorString &names=VectorString(), const VectorString &locatorNames=VectorString(), bool flagAddSampleRank=true)

Id	resetFromCSV (const String &filename, bool verbose, const CSVformat &csvfmt, Id ncol_max=-1, Id nrow_max=-1, bool flagAddSampleRank=true)

Id	resetFromBox (Id nech, const 1 &coormin, const 1 &coormax, Id ndim=2, double extend=0., Id seed=321415, bool flagAddSampleRank=true)

Id	resetFromOnePoint (const 1 &tab=1(), bool flagAddSampleRank=true)

Id	resetSamplingDb (const Db *dbin, double proportion=0, Id number=0, const VectorString &names=VectorString(), Id seed=23241, bool verbose=false, bool flagAddSampleRank=true)

Id	resetReduce (const Db *dbin, const VectorString &names=VectorString(), const 1 &ranks=1(), bool verbose=false)

Id	resetFromGridRandomized (const DbGrid *dbin, double randperc=0., bool flagAddSampleRank=true)

const std::vector< double > &	getArrays () const

String	getNameByLocator (const ELoc &locatorType, Id locatorIndex=0) const

String	getNameByColIdx (Id icol) const

String	getNameByUID (Id iuid) const

virtual void	initThread () const

VectorString	getName (const String &name) const

VectorString	getNames (const VectorString &names) const

VectorString	getNamesByLocator (const ELoc &locatorType) const

VectorString	getNamesByColIdx (const 1 &icols) const

VectorString	getNamesByUID (const 1 &iuids) const

VectorString	getAllNames (bool excludeRankAndCoordinates=false, bool verbose=false) const

void	setName (const String &old_name, const String &name)

void	setName (const VectorString &list, const String &name)

void	setNameByUID (Id iuid, const String &name)

void	setNameByColIdx (Id icol, const String &name)

void	setNameByLocator (const ELoc &locatorType, const String &name)

VectorString	expandNameList (const VectorString &names) const

VectorString	expandNameList (const String &names) const

VectorString	identifyNames (const VectorString &names) const

Id	getNUIDMax () const

Id	getNColumn () const

Id	getNSample (bool useSel=false) const

Id	getNSampleActiveAndDefined (Id item) const

Id	getNSampleActiveAndDefined (const String &name) const

Id	getNSampleActive () const

Id	getRankRelativeToAbsolute (Id irel) const

Id	getRankAbsoluteToRelative (Id iabs) const

void	clearLocators (const ELoc &locatorType)

void	clearSelection ()

void	setLocatorByUID (Id iuid, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocatorByColIdx (Id icol, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocator (const String &name, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocators (const VectorString &names, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocatorsByUID (Id number, Id iuid, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocatorsByUID (const 1 &iuids, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocatorsByColIdx (const 1 &icols, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	addColumnsByVVD (const 1 &tab, const String &radix, const ELoc &locatorType, Id locatorIndex=0, bool useSel=false)

Id	addColumns (const 1 &tab, const String &radix="New", const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool useSel=false, double valinit=0., Id nvar=1)

Id	addColumnsByConstant (Id nadd=1, double valinit=0., const String &radix="New", const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, Id nechInit=0)

Id	addColumnsRandom (Id nadd, const String &radix="New", const ELoc &locatorType=ELoc::fromKey("Z"), Id locatorIndex=0, Id seed=1352, Id nechInit=0)

Id	addSelection (const 1 &tab=1(), const String &name="NewSel", const String &combine="set")

Id	addSelectionByVariable (const String &varname, double lower=TEST, double upper=TEST, const String &name="NewSel", const String &oldSelName="")
	Create a selection by testing a target variable against 'lower' and 'upper'.

Id	addSelectionByRanks (const 1 &ranks, const String &name="NewSel", const String &combine="set")

Id	addSelectionByLimit (const String &testvar, const Limits &limits=Limits(), const String &name="NewSel", const String &combine="set")

Id	addSelectionFromDbByConvexHull (Db *db, double dilate=0., bool verbose=false, const NamingConvention &namconv=NamingConvention("Hull", true, true, true, ELoc::fromKey("SEL")))

Id	addSelectionRandom (double prop, Id seed=138213, const String &name="NewSel", const String &combine="set")

Id	addSamples (Id nadd, double valinit=TEST)

Id	deleteSample (Id e_del)

Id	deleteSamples (const 1 &e_dels)

void	switchLocator (const ELoc &locatorType_in, const ELoc &locatorType_out)

Id	getLastUID (Id number=0) const

String	getLastName (Id number=0) const

Id	getColIdx (const String &name) const

Id	getColIdxByUID (Id iuid) const

Id	getColIdxByLocator (const ELoc &locatorType, Id locatorIndex=0) const

	getColIdxs (const String &name) const

	getColIdxs (const VectorString &names) const

	getColIdxsByUID (const 1 &iuids) const

	getColIdxsByLocator (const ELoc &locatorType) const

void	setColumn (const 1 &tab, const String &name, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool useSel=false)

void	setColumnByUIDOldStyle (const double *tab, Id iuid, bool useSel=false)

void	setColumnByUID (const 1 &tab, Id iuid, bool useSel=false)

void	setColumnByColIdx (const 1 &tab, Id icol, bool useSel=false)

void	setColumnsByColIdx (const 1 &tabs, const 1 &icols, bool useSel=false)

void	setColumnByColIdxOldStyle (const double *tab, Id icol, bool useSel=false)

void	duplicateColumnByUID (Id iuid_in, Id iuid_out)

	getItem (const 1 &rows, const VectorString &colnames, bool useSel=false) const

	getItem (const 1 &rows, const String &colname, bool useSel=false) const

	getItem (const 1 &rows, const ELoc &locatorType, bool useSel=false) const

	getItem (const VectorString &colnames, bool useSel=false) const

	getItem (const String &colname, bool useSel=false) const

	getItem (const ELoc &locatorType, bool useSel=false) const

VectorString	getItemNames (const VectorString &colnames) const

VectorString	getItemNames (const String &colname) const

VectorString	getItemNames (const ELoc &locatorType) const

Id	setItem (const 1 &rows, const VectorString &colnames, const 1 &values, bool useSel=false)

Id	setItem (const 1 &rows, const ELoc &locatorType, const 1 &values, bool useSel=false)

Id	setItem (const VectorString &colnames, const 1 &values, bool useSel=false)

Id	setItem (const ELoc &locatorType, const 1 &values, bool useSel=false)

Id	setItem (const 1 &rows, const String &colname, const 1 &values, bool useSel=false)

Id	setItem (const String &colname, const 1 &values, bool useSel=false)

bool	getLocator (const String &name, ELoc ret_locatorType, Id ret_locatorIndex) const

bool	getLocatorByColIdx (Id icol, ELoc ret_locatorType, Id ret_locatorIndex) const

bool	getLocatorByUID (Id iuid, ELoc ret_locatorType, Id ret_locatorIndex) const

VectorString	getLocators (bool anyLocator=true, const ELoc &locatorType=ELoc::fromKey("UNKNOWN")) const

bool	isUIDDefined (Id iuid) const

Id	getUID (const String &name) const

Id	getUIDByColIdx (Id icol) const

Id	getUIDByLocator (const ELoc &locatorType, Id locatorIndex=0) const

	getUIDs (const VectorString &names) const

	getUIDsByLocator (const ELoc &locatorType) const

	getUIDsByColIdx (const 1 &icols) const

	getAllUIDs () const

void	getAllUIDs (1 &iuids) const

void	copyByUID (Id iuidIn, Id iuidOut)

void	copyByCol (Id icolIn, Id icolOut)

Id	getNFacies (void) const

bool	hasLocatorDefined (const String &name, const ELoc &locatorType, Id locatorIndex=0) const

	getSampleCoordinates (Id iech) const

void	getSampleAsSPInPlace (SpacePoint &P, Id iabs) const
	In the SpacePoint 'P', define the sample rank and coordinates.

virtual void	getSampleAsSTInPlace (Id iech, SpaceTarget &P) const

	getSampleLocators (const ELoc &locatorType, Id iech) const

	getIncrements (const 1 &iechs, const 1 &jechs) const

	getOneCoordinate (Id idim, bool useSel=false, bool flag_rotate=true) const

	getAllCoordinates (bool useSel=false) const

MatrixDense	getAllCoordinatesMat (const MatrixDense &box=MatrixDense()) const

void	setCoordinate (Id iech, Id idim, double value)

void	setCoordinates (Id idim, const 1 &coor, bool useSel=false)

void	setSampleCoordinates (Id iech, const 1 &coor)

double	getDistance1D (Id iech, Id jech, Id idim=0, bool flagAbs=false) const

double	getDistance (Id iech, Id jech) const

Id	getDistanceVecInPlace (Id iech, Id jech, 1 &dd, const Db *db2=nullptr) const

double	getValue (const String &name, Id iech) const

void	setValue (const String &name, Id iech, double value)

double	getArray (Id iech, Id iuid) const

void	getArrayVec (const 1 &iechs, Id iuid, 1 &values) const

void	setArray (Id iech, Id iuid, double value)

void	setArrayVec (const 1 &iechs, Id iuid, const 1 &values)

void	updArray (Id iech, Id iuid, const EOperator &oper, double value)

void	updArrayVec (const 1 &iechs, Id iuid, const EOperator &oper, 1 &values)

	getArrayByUID (Id iuid, bool useSel=false) const

void	setArrayByUID (const 1 &tab, Id iuid)

void	getArrayBySample (std::vector< double > &vals, Id iech) const

void	setArrayBySample (Id iech, const 1 &vec)

void	getSamplesAsSP (std::vector< SpacePoint > &pvec, const ASpaceSharedPtr &space, bool useSel=false) const

void	getSamplesFromNbghAsSP (std::vector< SpacePoint > &pvec, const 1 &nbgh) const

bool	hasLocator (const ELoc &locatorType) const

double	getFromLocator (const ELoc &locatorType, Id iech, Id locatorIndex=0) const

void	setFromLocator (const ELoc &locatorType, Id iech, Id locatorIndex, double value)

double	getValueByColIdx (Id iech, Id icol, bool flagCheck=true) const

const double *	getColAdressByColIdx (Id icol) const

void	setValueByColIdx (Id iech, Id icol, double value, bool flagCheck=true)

	getValuesByNames (const 1 &iechs, const VectorString &names, bool bySample=false) const

	getValuesByColIdx (const 1 &iechs, const 1 &icols, bool bySample=false) const

void	setValuesByNames (const 1 &iechs, const VectorString &names, const 1 &values, bool bySample=false)

void	setValuesByColIdx (const 1 &iechs, const 1 &icols, const 1 &values, bool bySample=false)

Id	getNLoc (const ELoc &loctype) const

bool	hasLocVariable (const ELoc &loctype) const

double	getLocVariable (const ELoc &loctype, Id iech, Id item) const

void	setLocVariable (const ELoc &loctype, Id iech, Id item, double value)

void	updLocVariable (const ELoc &loctype, Id iech, Id item, const EOperator &oper, double value)

Id	getNZValues () const

bool	hasZVariable () const

double	getZVariable (Id iech, Id item) const

void	setZVariable (Id iech, Id item, double value)

void	updZVariable (Id iech, Id item, const EOperator &oper, double value)

	getLocVariables (const ELoc &loctype, Id iech, Id nitemax=0) const

void	setLocVariables (const ELoc &loctype, Id iech, const 1 &values)

bool	isNVarComparedTo (Id nvar, Id compare=0) const

bool	isIsotopic (Id iech, Id nvar_max=-1) const

bool	isAllUndefined (Id iech) const

bool	isAllUndefinedByType (const ELoc &loctype, Id iech) const

bool	isAllIsotopic () const

void	setInterval (Id iech, Id item, double rklow=TEST, double rkup=TEST)

Id	getNInterval () const

void	setBound (Id iech, Id item, double lower=TEST, double upper=TEST)

	getWithinBounds (Id item, bool useSel=false) const

	getGradient (Id item, bool useSel=false) const

	getTangent (Id item, bool useSel=false) const

	getCodeList (void) const

Id	getSelection (Id iech) const

	getSelections (void) const

void	getSampleRanksPerVariable (1 &ranks, const 1 &nbgh=1(), Id ivar=-1, bool useSel=true, bool useZ=true, bool useVerr=false, bool useExtD=true) const
	Create the vector of elligible sample ranks for the variable 'ivar'.

	getSampleRanks (const 1 &ivars=1(), const 1 &nbgh=1(), bool useSel=true, bool useZ=true, bool useVerr=false, bool useExtD=true) const

void	getSampleRanksInPlace (1 &sampleRanks, const 1 &ivars=1(), const 1 &nbgh=1(), bool useSel=true, bool useZ=true, bool useVerr=false, bool useExtD=true) const

	getValuesByRanks (const 1 &sampleRanks, const 1 &means=1(), bool subtractMean=true) const

void	getValuesByRanksInPlace (1 *values, const 1 &sampleRanks, const 1 &means=1(), bool subtractMean=true) const

Id	getListOfSampleIndicesPerVariableInPlace (1 &ranks, Id ivar=0, bool useSel=true) const
	Returns the vector of indices for samples with variable 'ivar' defined For the target variable 'ivar' and for sample 'iech',.

Id	getListOfSampleIndicesInPlace (Id nvar, 1 &cumul, 1 &ranks, bool useSel=true) const
	Updates (and resizes) the two arguments:

double	getWeight (Id iech) const

	getWeights (bool useSel=false) const

double	getSimvar (const ELoc &locatorType, Id iech, Id isimu, Id ivar, Id icase, Id nbsimu, Id nvar) const

void	setSimvar (const ELoc &locatorType, Id iech, Id isimu, Id ivar, Id icase, Id nbsimu, Id nvar, double value)

void	updSimvar (const ELoc &locatorType, Id iech, Id isimu, Id ivar, Id icase, Id nbsimu, Id nvar, const EOperator &oper, double value)

bool	isActive (Id iech) const

bool	isActiveDomain (Id iech) const

bool	isActiveAndDefined (Id iech, Id item) const

VectorBool	getActiveArray () const

	getSortArray () const

double	getCosineToDirection (Id iech1, Id iech2, const 1 &codir) const

	getColumn (const String &name, bool useSel=false, bool flagCompress=true) const

	getColumnByUID (Id iuid, bool useSel=false, bool flagCompress=true) const

	getColumnByLocator (const ELoc &locatorType, Id locatorIndex=0, bool useSel=false, bool flagCompress=true) const

	getColumnByColIdx (Id icol, bool useSel=false, bool flagCompress=true) const

	getAllColumns (bool useSel=false, bool flagCompress=true) const

	getColumns (const VectorString &names=VectorString(), bool useSel=false, bool flagCompress=true, const 1 &origins=1()) const

	getColumnsAsVVD (const VectorString &names=VectorString(), bool useSel=false, bool flagCompress=true) const

MatrixDense	getColumnsAsMatrix (const VectorString &names, bool useSel=false, bool flagCompress=true) const

	getColumnsByColIdx (const 1 &icols=1(), bool useSel=false, bool flagCompress=true, const 1 &origins=1()) const

	getColumnsByColIdxInterval (Id icol_beg, Id icol_end, bool useSel=false, bool flagCompress=true) const

	getColumnsActiveAndDefined (const ELoc &locatorType, const 1 &origins=1()) const

	getColumnsByLocator (const ELoc &locatorType, bool useSel=false, bool flagCompress=true, const 1 &origins=1()) const

	getColumnsByUID (const 1 &iuids, bool useSel=false, bool flagCompress=true, const 1 &origins=1()) const

	getColumnsByUIDInterval (Id iuid_beg, Id iuid_end, bool useSel=false, bool flagCompress=true) const

void	setAllColumns (const 1 &tabs)

void	deleteColumn (const String &name)

void	deleteColumnByUID (Id iuid_del)

void	deleteColumnByColIdx (Id icol_del)

void	deleteColumns (const VectorString &names)

void	deleteColumnsByLocator (const ELoc &locatorType)

void	deleteColumnsByUID (const 1 &iuids)

void	deleteColumnsByColIdx (const 1 &icols)

void	deleteColumnsByUIDRange (Id i_del, Id n_del)

	getExtrema (Id idim, bool useSel=false) const

	getExtremas (bool useSel=false) const

	getExtends (bool useSel=false) const

	getCoorMinimum (bool useSel=false) const

	getCoorMaximum (bool useSel=false) const

double	getExtension (Id idim, bool useSel=false) const

double	getExtensionDiagonal (bool useSel=false) const

double	getCenter (Id idim, bool useSel=false) const

	getCenters (bool useSel=false) const

void	getExtensionInPlace (1 &mini, 1 &maxi, bool flagPreserve=false, bool useSel=false) const

double	getMinimum (const String &name, bool useSel=false) const

double	getMaximum (const String &name, bool useSel=false) const

	getRange (const String &name, bool useSel=false) const

double	getMean (const String &name, bool useSel=false) const

double	getVariance (const String &name, bool useSel=false) const

double	getStdv (const String &name, bool useSel=false) const

double	getCorrelation (const String &name1, const String &name2, bool useSel=false) const

bool	hasSameDimension (const Db *dbaux) const

bool	hasLargerDimension (const Db *dbaux) const

bool	isColIdxValid (Id icol) const

bool	isUIDValid (Id iuid) const

bool	isSampleIndexValid (Id iech) const

bool	isSampleIndicesValid (const 1 &iechs, bool useSel=false) const

bool	isLocatorIndexValid (const ELoc &locatorType, Id locatorIndex) const

bool	isDimensionIndexValid (Id idim) const

void	combineSelection (1 &sel, const String &combine="set") const

void	generateRank (const String &radix="rank")

	shrinkToValidRows (const 1 &rows) const

	shrinkToValidCols (const 1 &cols) const

void	statisticsBySample (const VectorString &names, const std::vector< EStatOption > &opers=EStatOption::fromKeys({"MEAN"}), bool flagIso=true, double proba=TEST, double vmin=TEST, double vmax=TEST, const NamingConvention &namconv=NamingConvention("Stats"))

	statisticsMulti (const VectorString &names, bool flagIso=true, bool verbose=false, const String &title="")

bool	areSame (const String &name1, const String &name2, double eps=EPSILON3, bool useSel=true, bool verbose=false) const

	filter (const String &name, const Interval &interval, Id belowRow=ITEST, Id aboveRow=ITEST) const

Table	printOneSample (Id iech, const VectorString &names=VectorString(), bool excludeCoordinates=true, bool skipTitle=false) const

void	dumpGeometry (Id iech, Id jech) const

Public Member Functions inherited from gstlrn::AStringable
	AStringable ()

	AStringable (const AStringable &r)

AStringable &	operator= (const AStringable &r)

virtual	~AStringable ()

virtual void	display (const AStringFormat *strfmt=nullptr) const final

virtual void	display (Id level) const final

Public Member Functions inherited from gstlrn::ASerializable
	ASerializable ()

	ASerializable (const ASerializable &r)

ASerializable &	operator= (const ASerializable &r)

	ASerializable (ASerializable &&r) noexcept

ASerializable &	operator= (ASerializable &&r) noexcept

virtual	~ASerializable ()

bool	dumpToNF (const String &NFFilename, const EFormatNF &format=EFormatNF::fromKey("DEFAULT"), bool verbose=false) const
	Dump the contents of an object into an Output File using a given Output NF Format.

void	setDefaultFormatNF (const EFormatNF &format)

Public Member Functions inherited from gstlrn::ICloneable
	ICloneable ()

virtual	~ICloneable ()

virtual ICloneable *	clone () const =0

std::shared_ptr< ICloneable >	cloneShared () const

std::unique_ptr< ICloneable >	cloneUnique () const

Static Public Member Functions
static Db *	create ()

static Db *	createFromNF (const String &NFFilename, bool verbose=true)

static Db *	createFromSamples (Id nech, const ELoadBy &order=ELoadBy::fromKey("SAMPLE"), const 1 &tab=1(), const VectorString &names=VectorString(), const VectorString &locatorNames=VectorString(), bool flagAddSampleRank=true)

static Db *	createFromCSV (const String &filename, const CSVformat &csv=CSVformat(), bool verbose=false, Id ncol_max=-1, Id nrow_max=-1, bool flagAddSampleRank=true)

static Db *	createFromBox (Id nech, const 1 &coormin, const 1 &coormax, Id seed=43241, bool flag_exact=true, bool flag_repulsion=false, double range=0., double beta=0., double extend=0., bool flagAddSampleRank=true)

static Db *	createFromOnePoint (const 1 &tab=1(), bool flagAddSampleRank=true)

static Db *	createSamplingDb (const Db *dbin, double proportion=0., Id number=0, const VectorString &names=VectorString(), Id seed=23241, bool verbose=false, bool flagAddSampleRank=true)

static Db *	createFromDbGrid (Id nech, DbGrid *dbgrid, Id seed=432423, bool flag_exact=true, bool flag_repulsion=false, double range=0., double beta=0., bool flagAddSampleRank=true)

static Db *	createReduce (const Db *dbin, const VectorString &names=VectorString(), const 1 &ranks=1(), bool verbose=false)

static Db *	createFillRandom (Id ndat, Id ndim=2, Id nvar=1, Id nfex=0, Id ncode=0, double varmax=0., double selRatio=0., const 1 &heteroRatio=1(), const 1 &coormin=1(), const 1 &coormax=1(), Id seed=124234, bool flagAddSampleRank=true)

static Db *	createEmpty (Id ndat, Id ndim=2, Id nvar=1, Id nfex=0, Id ncode=0, bool flagVerr=false, bool flagSel=false, bool flagAddSampleRank=true)

static Db *	createFromGridRandomized (DbGrid *dbgrid, double randperc=0., bool flagAddSampleRank=true)

static Id	getNEloc ()

static	getMultipleSelectedRanks (const 1 &index, const 1 &ivars=1(), const 1 &nbgh=1())
	Return the vector of the ranks within 'index' of data beloging:

static	getMultipleSelectedVariables (const 1 &index, const 1 &ivars=1(), const 1 &nbgh=1())

static Id	getSimRank (Id isimu, Id ivar, Id icase, Id nbsimu, Id nvar)

static const Db *	coverSeveralDbs (const Db db1, const Db db2, bool *isBuilt)

Static Public Member Functions inherited from gstlrn::ASerializable
static String	buildFileName (Id status, const String &filename, bool ensureDirExist=false)

static String	getFileIdentity (const String &filename, bool verbose=false)

static void	setPrefixName (const String &prefixName)

static void	unsetPrefixName ()

static const String &	getPrefixName ()

Public Attributes
	DECLARE_TOTL
	Has a specific implementation in the Target language.

Constructor & Destructor Documentation

◆ Db() [1/2]

gstlrn::Db::Db ( )

◆ Db() [2/2]

gstlrn::Db::Db ( const Db & r )

◆ ~Db()

gstlrn::Db::~Db ( )

virtual

Member Function Documentation

◆ addColumns()

Id gstlrn::Db::addColumns	(	const 1 &	tab,
		const String &	radix = `"New"`,
		const ELoc &	locatorType = `ELoc::fromKey("UNKNOWN")`,
		Id	locatorIndex = `0`,
		bool	useSel = `false`,
		double	valinit = `0.`,
		Id	nvar = `1`
	)

Add one or several columns to an already existing Db. This is performed by providing an array of values 'tab'. Its dimension must be equal to the number of samples (or active samples if 'useSel' is true, times the number of variables 'nvar'.

Parameters

tab	Array to be loaded
radix	Generic name for the newly created variables
locatorType	Generic locator assigned to new variables
locatorIndex	Locator index (starting from 0)
useSel	true if the Selection must be taken into account
valinit	initial value (for unselected samples)
nvar	Number of variables loaded

Returns: Rank of the first UID

Remarks: When 'useSel' is used, you must have a Selection already defined. Then the number; of samples provided in 'tab' must match the number of active samples; When a vector 'tab' is provided, the number of variables 'nvar'; is calculated as its size divided by the number of samples in the grid.

◆ addColumnsByConstant()

Id gstlrn::Db::addColumnsByConstant	(	Id	nadd = `1`,
		double	valinit = `0.`,
		const String &	radix = `"New"`,
		const ELoc &	locatorType = `ELoc::fromKey("UNKNOWN")`,
		Id	locatorIndex = `0`,
		Id	nechInit = `0`
	)

Create a set of new variables in an already existing Db and initialize their contents to a constant value

Parameters

nadd	Number of variables to be added
valinit	Value to be used for variable initialization
radix	Generic radix given to the newly created variables
locatorType	Generic locator assigned to new variables
locatorIndex	Locator index (starting from 0)
nechInit	Number of samples (used only if the Db is initially empty)

Returns: Rank of the first UID

◆ addColumnsByVVD()

void gstlrn::Db::addColumnsByVVD	(	const 1 &	tab,
		const String &	radix,
		const ELoc &	locatorType,
		Id	locatorIndex = `0`,
		bool	useSel = `false`
	)

◆ addColumnsRandom()

Id gstlrn::Db::addColumnsRandom	(	Id	nadd,
		const String &	radix = `"New"`,
		const ELoc &	locatorType = `ELoc::fromKey("Z")`,
		Id	locatorIndex = `0`,
		Id	seed = `1352`,
		Id	nechInit = `0`
	)

Create a set of new variables in an already existing Db and initialize their contents as a random value (from Normal distribution)

Parameters

nadd	Number of variables to be added
radix	Generic radix given to the newly created variables
locatorType	Generic locator assigned to new variables
locatorIndex	Locator index (starting from 0)
seed	Seed value
nechInit	Number of samples (used only if the Db is initially empty)

Returns: Rank of the first UID

◆ addSamples()

Id gstlrn::Db::addSamples	(	Id	nadd,
		double	valinit = `TEST`
	)

Add samples to the Data Base

Parameters

nadd	Number of samples to be added
valinit	Default value given to the added samples

Returns: Index of the first newly added sample (or -1 if adding samples is not authorized)

◆ addSelection()

Id gstlrn::Db::addSelection	(	const 1 &	tab = `1()`,
		const String &	name = `"NewSel"`,
		const String &	combine = `"set"`
	)

Add the contents of the 'tab' as a Selection

Parameters

tab	Input array
name	Name given to the newly created Selection variable
combine	How to combine with an already existing selection (see combineSelection() for details)

Returns: Rank of the newly created Column within the Data Base

Remarks: The Selection is set to True if tab is not zero and to False otherwise.; If the dimension of 'tab' does not match the number of samples in the Db; the action is cancelled (a message is issued)

◆ addSelectionByLimit()

Id gstlrn::Db::addSelectionByLimit	(	const String &	testvar,
		const Limits &	limits = `Limits()`,
		const String &	name = `"NewSel"`,
		const String &	combine = `"set"`
	)

Create a selection around the only defined values of the target variable

Parameters

testvar	Name of the target variable
limits	Limits defining the Definition Domain to be tested (optional)
name	Name of the newly created selection
combine	How to combine with an already existing selection (see combineSelection() for details)

Returns: The rank of the newly created selection variable within the Db

◆ addSelectionByRanks()

Id gstlrn::Db::addSelectionByRanks	(	const 1 &	ranks,
		const String &	name = `"NewSel"`,
		const String &	combine = `"set"`
	)

Add a Selection by considering the input 'ranks' vector which give the ranks of the active samples (starting from 0)

Parameters

ranks	Vector of ranks of active samples
name	Name given to the newly created Selection variable
combine	How to combine with an already existing selection (see combineSelection() for details)

Returns

◆ addSelectionByVariable()

Id gstlrn::Db::addSelectionByVariable	(	const String &	varname,
		double	lower = `TEST`,
		double	upper = `TEST`,
		const String &	name = `"NewSel"`,
		const String &	oldSelName = `""`
	)

Create a selection by testing a target variable against 'lower' and 'upper'.

Parameters

varname	Name of the target variable
lower	Lower bound (included) or TEST for no lower bound
upper	Upper bound (included) or TEST for no upper bound
name	Name given to the newly created selection
oldSelName	If defined, the current selection is combined with the existing one

Returns: Id

◆ addSelectionFromDbByConvexHull()

Id gstlrn::Db::addSelectionFromDbByConvexHull	(	Db *	db,
		double	dilate = `0.`,
		bool	verbose = `false`,
		const NamingConvention &	namconv = `NamingConvention("Hull", true, true, true, ELoc::fromKey("SEL"))`
	)

Create a Selection based on the Convex Hull of the active samples of 'Db'

Parameters

db	Data Base providing the (active) samples
dilate	The convex hull can be dilated: this gives the radius
verbose	Verbose option
namconv	Naming Convention

Returns

◆ addSelectionRandom()

Id gstlrn::Db::addSelectionRandom	(	double	prop,
		Id	seed = `138213`,
		const String &	name = `"NewSel"`,
		const String &	combine = `"set"`
	)

Create a Selection based on a proportion of active samples

Parameters

prop	Proportion of active samples (between 0 and 1)
seed	Seed for the random number generator
name	Name of the newly created selection
combine	How to combine with an already existing selection (see combineSelection() for details)

Returns

◆ areSame()

bool gstlrn::Db::areSame	(	const String &	name1,
		const String &	name2,
		double	eps = `EPSILON3`,
		bool	useSel = `true`,
		bool	verbose = `false`
	)		const

◆ clearLocators()

void gstlrn::Db::clearLocators ( const ELoc & locatorType )

◆ clearSelection()

void gstlrn::Db::clearSelection ( )

inline

◆ combineSelection()

void gstlrn::Db::combineSelection	(	1 &	sel,
		const String &	combine = `"set"`
	)		const

Combine 'sel' input argument with an already existing selection (if any)

Parameters

sel	Input selection (only 0 and 1)
combine	Type of combination: "set", "not", "or", "and", "xor"

Remarks: Argument 'sel' may be modified by this procedure

◆ copyByCol()

void gstlrn::Db::copyByCol	(	Id	icolIn,
		Id	icolOut
	)

◆ copyByUID()

void gstlrn::Db::copyByUID	(	Id	iuidIn,
		Id	iuidOut
	)

◆ coverSeveralDbs()

const Db * gstlrn::Db::coverSeveralDbs	(	const Db *	db1,
		const Db *	db2,
		bool *	isBuilt
	)

static

◆ deleteSample()

Id gstlrn::Db::deleteSample ( Id e_del )

Deleting a sample

Parameters

e_del Index of the sample to be deleted

Returns: 0 if successfull or -1 if sample deletion is not authorized

◆ deleteSamples()

Id gstlrn::Db::deleteSamples ( const 1 & e_dels )

◆ dumpGeometry()

void gstlrn::Db::dumpGeometry	(	Id	iech,
		Id	jech
	)		const

◆ duplicateColumnByUID()

void gstlrn::Db::duplicateColumnByUID	(	Id	iuid_in,
		Id	iuid_out
	)

◆ filter()

gstlrn::Db::filter	(	const String &	name,
		const Interval &	interval,
		Id	belowRow = `ITEST`,
		Id	aboveRow = `ITEST`
	)		const

Find the occurrence of a given range of values for a given variable

Parameters

name	Name of the Target variable
interval	Interval definition
belowRow	If specified, search must be performed below this row
aboveRow	If specified, search must be performed above this row

Returns

◆ generateRank()

void gstlrn::Db::generateRank ( const String & radix = "rank" )

◆ getActiveArray()

VectorBool gstlrn::Db::getActiveArray ( ) const

◆ getAllCoordinates()

gstlrn::Db::getAllCoordinates ( bool useSel = false ) const

Constitute a Vector of Vector of coordinates for all (active) samples

the first dimension is the space dimension
the second dimension is the number of (active) samples
Parameters

useSel

Returns

◆ getAllCoordinatesMat()

MatrixDense gstlrn::Db::getAllCoordinatesMat ( const MatrixDense & box = MatrixDense() ) const

Constitute a Matrix of coordinates for all (active) samples

one row per sample
one column by Space Dimension
Returns

◆ getAllUIDs() [1/2]

gstlrn::Db::getAllUIDs ( ) const

◆ getAllUIDs() [2/2]

void gstlrn::Db::getAllUIDs ( 1 & iuids ) const

◆ getArray()

double gstlrn::Db::getArray	(	Id	iech,
		Id	iuid
	)		const

Return the value defined by Sample and UID

Parameters

iech	Sample Index
iuid	UID Index

Returns

◆ getArrayBySample()

void gstlrn::Db::getArrayBySample	(	std::vector< double > &	vals,
		Id	iech
	)		const

◆ getArrayByUID()

gstlrn::Db::getArrayByUID	(	Id	iuid,
		bool	useSel = `false`
	)		const

◆ getArrays()

const std::vector< double > & gstlrn::Db::getArrays ( ) const

inline

◆ getArrayVec()

void gstlrn::Db::getArrayVec	(	const 1 &	iechs,
		Id	iuid,
		1 &	values
	)		const

Get the values of a series of samples

Parameters

iechs	List of sample indices
iuid	Index of the UID
values	List of values to be written

Remarks: : for efficiency purpose, no check is performed on the sample ranks

◆ getCodeList()

gstlrn::Db::getCodeList ( void ) const

Returns the list of Unique codes

Returns: Pointer to the array containing a single occurence of each code

◆ getColAdressByColIdx()

const double * gstlrn::Db::getColAdressByColIdx ( Id icol ) const

◆ getColIdx()

Id gstlrn::Db::getColIdx ( const String & name ) const

Returns the rank of the Single Column corresponding to 'name'

Parameters

name	Named for the searched column

Returns: The rank of the Single column or -1

◆ getColIdxByLocator()

Id gstlrn::Db::getColIdxByLocator	(	const ELoc &	locatorType,
		Id	locatorIndex = `0`
	)		const

Find Column for a given Locator characteristics

Parameters

locatorType	Locator type
locatorIndex	Locator index (starting from 0)

Returns

◆ getColIdxByUID()

Id gstlrn::Db::getColIdxByUID ( Id iuid ) const

◆ getColIdxs() [1/2]

gstlrn::Db::getColIdxs ( const String & name ) const

◆ getColIdxs() [2/2]

gstlrn::Db::getColIdxs ( const VectorString & names ) const

◆ getColIdxsByLocator()

gstlrn::Db::getColIdxsByLocator ( const ELoc & locatorType ) const

◆ getColIdxsByUID()

gstlrn::Db::getColIdxsByUID ( const 1 & iuids ) const

◆ getCoordinate()

double gstlrn::Db::getCoordinate	(	Id	iech,
		Id	idim,
		bool	flag_rotate = `true`
	)		const

virtual

Return the coordinate of a sample along one Space Dimension

Parameters

iech	Rank of the sample
idim	Rank of the Space Dimension
flag_rotate	Use the rotation (only for Grid)

Returns

Reimplemented in gstlrn::DbGrid.

◆ getCoordinatesInPlace()

void gstlrn::Db::getCoordinatesInPlace	(	1 &	coor,
		Id	iech,
		bool	flag_rotate = `true`
	)		const

virtual

Update the vector of coordinates (optimized manner) No check is done with respect to the dimension of the returned vector.

Parameters

coor	Returned vector of coordinates (should be dimensionned beforehand)
iech	Rank of the target
flag_rotate	True if Grid rotation must be taken into account

Reimplemented in gstlrn::DbGrid.

◆ getCosineToDirection()

double gstlrn::Db::getCosineToDirection	(	Id	iech1,
		Id	iech2,
		const 1 &	codir
	)		const

Calculates the cosine of the angle between a reference direction and the increment between two points in the same Db

Returns: Cosine of the angle

Parameters

[in]	iech1	rank of the first sample
[in]	iech2	rank of the second sample
[in]	codir	Direction coefficient

◆ getDistance()

double gstlrn::Db::getDistance	(	Id	iech,
		Id	jech
	)		const

◆ getDistance1D()

double gstlrn::Db::getDistance1D	(	Id	iech,
		Id	jech,
		Id	idim = `0`,
		bool	flagAbs = `false`
	)		const

◆ getDistanceVecInPlace()

Id gstlrn::Db::getDistanceVecInPlace	(	Id	iech,
		Id	jech,
		1 &	dd,
		const Db *	db2 = `nullptr`
	)		const

Calculate the distance vector in place

Parameters

iech	Rank of the first sample
jech	Rank of the second sample (from db2 if db2 provided)
dd	Vector for distances (It must be dimensioned to getNDim())
db2	Second Db if different from current one (or nullptr)

Returns

◆ getFromLocator()

double gstlrn::Db::getFromLocator	(	const ELoc &	locatorType,
		Id	iech,
		Id	locatorIndex = `0`
	)		const

◆ getGradient()

gstlrn::Db::getGradient	(	Id	item,
		bool	useSel = `false`
	)		const

◆ getIncrements()

gstlrn::Db::getIncrements	(	const 1 &	iechs,
		const 1 &	jechs
	)		const

◆ getItem() [1/6]

gstlrn::Db::getItem	(	const 1 &	rows,
		const ELoc &	locatorType,
		bool	useSel = `false`
	)		const

◆ getItem() [2/6]

gstlrn::Db::getItem	(	const 1 &	rows,
		const String &	colname,
		bool	useSel = `false`
	)		const

◆ getItem() [3/6]

gstlrn::Db::getItem	(	const 1 &	rows,
		const VectorString &	colnames,
		bool	useSel = `false`
	)		const

◆ getItem() [4/6]

gstlrn::Db::getItem	(	const ELoc &	locatorType,
		bool	useSel = `false`
	)		const

◆ getItem() [5/6]

gstlrn::Db::getItem	(	const String &	colname,
		bool	useSel = `false`
	)		const

◆ getItem() [6/6]

gstlrn::Db::getItem	(	const VectorString &	colnames,
		bool	useSel = `false`
	)		const

◆ getItemNames() [1/3]

VectorString gstlrn::Db::getItemNames ( const ELoc & locatorType ) const

◆ getItemNames() [2/3]

VectorString gstlrn::Db::getItemNames ( const String & colname ) const

◆ getItemNames() [3/3]

VectorString gstlrn::Db::getItemNames ( const VectorString & colnames ) const

◆ getLastName()

String gstlrn::Db::getLastName ( Id number = 0 ) const

◆ getLastUID()

Id gstlrn::Db::getLastUID ( Id number = 0 ) const

Returns the rank of (one of) the lastly added UID in the Db

Parameters

number 0 designates the last, 1 the one before last...

Returns

◆ getListOfSampleIndicesInPlace()

Id gstlrn::Db::getListOfSampleIndicesInPlace	(	Id	nvar,
		1 &	cumul,
		1 &	ranks,
		bool	useSel = `true`
	)		const

Updates (and resizes) the two arguments:

cumul cumulated number of samples where each variable is defined
ranks Each vector gives the ranks of defined samples (or ITEST) if not defined These two arguments have 'nvar' as first dimension

Parameters

nvar	Number of variables
cumul	Vector of cumulated number of defined samples per variable
ranks	Vector of vectors of ranks of defined samples
useSel	Discard the masked samples (if True)

Returns: The total number of samples where ALL variables are defined

Remarks: Argument 'nvar' is provided as it may serve for a file which does not contain any variable (Loc::Z) defined.

◆ getListOfSampleIndicesPerVariableInPlace()

Id gstlrn::Db::getListOfSampleIndicesPerVariableInPlace	(	1 &	ranks,
		Id	ivar = `0`,
		bool	useSel = `true`
	)		const

Returns the vector of indices for samples with variable 'ivar' defined For the target variable 'ivar' and for sample 'iech',.

ranks[iech] = IFFFF if variable 'ivar' is not defined for sample 'iech'
ranks[iech] = 'ipos' if the variable 'ivar' is defined for sample 'iech', where 'ipos' is rank within the list of samples where 'ivar' is defined

Parameters

ranks	Vector of the (defined) sample indices
ivar	Index of the variable of interest
useSel	Discard the masked samples (if True)

Returns: Count of samples defined

Remarks: When the file has NO Z-locator variable defined, we consider that all active samples are available

◆ getLocator()

bool gstlrn::Db::getLocator	(	const String &	name,
		ELoc *	ret_locatorType,
		Id *	ret_locatorIndex
	)		const

Return the locator information corresponding to the input variable

Parameters

name	Input variable name (unique)
ret_locatorType	Locator Type
ret_locatorIndex	Locator Index (starting from 0)

Returns

◆ getLocatorByColIdx()

bool gstlrn::Db::getLocatorByColIdx	(	Id	icol,
		ELoc *	ret_locatorType,
		Id *	ret_locatorIndex
	)		const

Find the locator characteristics of a given Column

Parameters

icol	Index of the target column
ret_locatorType	Locator type
ret_locatorIndex	Locator index (starting from 0)

Returns: true if the target variable has a locator assigned and false otherwise

◆ getLocatorByUID()

bool gstlrn::Db::getLocatorByUID	(	Id	iuid,
		ELoc *	ret_locatorType,
		Id *	ret_locatorIndex
	)		const

◆ getLocators()

VectorString gstlrn::Db::getLocators	(	bool	anyLocator = `true`,
		const ELoc &	locatorType = `ELoc::fromKey("UNKNOWN")`
	)		const

◆ getLocVariables()

gstlrn::Db::getLocVariables	(	const ELoc &	loctype,
		Id	iech,
		Id	nitemax = `0`
	)		const

◆ getMultipleSelectedRanks()

gstlrn::Db::getMultipleSelectedRanks	(	const 1 &	index,
		const 1 &	ivars = `1()`,
		const 1 &	nbgh = `1()`
	)

static

Return the vector of the ranks within 'index' of data beloging:

to the variable indices 'ivars' (default: all samples)
to the sample indices 'nbgh' (default: all samples)

Parameters

index	Input data information ranks
ivars	Vector of selection variables
nbgh	Vector of selection samples

Returns: VectorInt

◆ getMultipleSelectedVariables()

gstlrn::Db::getMultipleSelectedVariables	(	const 1 &	index,
		const 1 &	ivars = `1()`,
		const 1 &	nbgh = `1()`
	)

static

◆ getNColumn()

Id gstlrn::Db::getNColumn ( ) const

inline

◆ getNDim()

Id gstlrn::Db::getNDim ( ) const

virtual

Reimplemented in gstlrn::DbGrid.

◆ getNEloc()

Id gstlrn::Db::getNEloc ( )

static

◆ getNFacies()

Id gstlrn::Db::getNFacies ( void ) const

Returns the Number of different facies (labelling starts at 1) The facies variable must be locatorized as ELoc::Z and be unique

◆ getNInterval()

Id gstlrn::Db::getNInterval ( ) const

◆ getNSample()

Id gstlrn::Db::getNSample ( bool useSel = false ) const

Returns the Number of samples

Parameters

useSel When FALSE returns the total sample number. When TRUE returns the number of active samples

Returns

◆ getNSampleActive()

GSTLEARN_DEPRECATED Id gstlrn::Db::getNSampleActive ( ) const

Returns the number of active samples if a Selection is already defined.

If no Selection is currently defined, it returns the total number of samples (see getNSample())

Returns: Number of active samples

Remarks: This method is deprecated and should be replaced by a call to getNSample()

◆ getNSampleActiveAndDefined() [1/2]

Id gstlrn::Db::getNSampleActiveAndDefined ( const String & name ) const

Returns the number of active samples for which the variable 'name' is defined

Parameters

name	Name of the Target variable

Returns: Number of samples

◆ getNSampleActiveAndDefined() [2/2]

Id gstlrn::Db::getNSampleActiveAndDefined ( Id item ) const

Returns the number of active samples for which the target variable (ELoc::Z) is defined

Parameters

item	Rank of the ELoc::Z variable

Returns: Number of samples

◆ getNUIDMax()

Id gstlrn::Db::getNUIDMax ( ) const

inline

◆ getNZValues()

Id gstlrn::Db::getNZValues ( ) const

◆ getOneCoordinate()

gstlrn::Db::getOneCoordinate	(	Id	idim,
		bool	useSel = `false`,
		bool	flag_rotate = `true`
	)		const

Returns the vector of coordinates along a given Space Dimension

Parameters

idim	Rank of the Space dimension
useSel	Use the Data Selection
flag_rotate	Flag for rotation (only for Grid)

Returns

◆ getRankAbsoluteToRelative()

Id gstlrn::Db::getRankAbsoluteToRelative ( Id iabs ) const

◆ getRankRelativeToAbsolute()

Id gstlrn::Db::getRankRelativeToAbsolute ( Id irel ) const

Return the absolute rank of a sample from its relative rank

Parameters

irel	Relative rank

Returns

◆ getSampleAsSPInPlace()

void gstlrn::Db::getSampleAsSPInPlace	(	SpacePoint &	P,
		Id	iabs
	)		const

In the SpacePoint 'P', define the sample rank and coordinates.

Parameters

P	SpacePoint reference (output)
iabs	Rank of the sample

◆ getSampleAsSTInPlace()

void gstlrn::Db::getSampleAsSTInPlace	(	Id	iech,
		SpaceTarget &	P
	)		const

virtual

Load a Space Target with all possible contents gathered from Db

Parameters

iech	Rank of the target sample
P	Space Target (used to store information)

Reimplemented in gstlrn::DbGrid.

◆ getSampleCoordinates()

gstlrn::Db::getSampleCoordinates ( Id iech ) const

◆ getSampleLocators()

gstlrn::Db::getSampleLocators	(	const ELoc &	locatorType,
		Id	iech
	)		const

◆ getSampleRanks()

gstlrn::Db::getSampleRanks	(	const 1 &	ivars = `1()`,
		const 1 &	nbgh = `1()`,
		bool	useSel = `true`,
		bool	useZ = `true`,
		bool	useVerr = `false`,
		bool	useExtD = `true`
	)		const

Returns the list of indices 'index' for valid samples for the set of variables 'ivars'. Note: each address is ABSOLUTE to the target set of available samples.

Parameters

ivars	Vector giving the indices of the variables of interest
nbgh	Vector giving the ranks of the elligible samples (optional)
useSel	Discard the masked samples (if True)
useZ	Discard samples when Z is not defined
useVerr	Discard the samples where Verr (optional) is not defined
useExtD	True if the definition of the External Drift must be checked

Note: : if the current 'db' has some Z-variable defined, only samples; : where a variable is defined is considered (search for heterotopy).; : if 'nbgh' is not provided, the absolute and relative indices; : returned by this function are similar.; : if 'useExtD' is ON, each sample for each variable is tested against; : all the values of External Drift functions.

◆ getSampleRanksInPlace()

void gstlrn::Db::getSampleRanksInPlace	(	1 &	sampleRanks,
		const 1 &	ivars = `1()`,
		const 1 &	nbgh = `1()`,
		bool	useSel = `true`,
		bool	useZ = `true`,
		bool	useVerr = `false`,
		bool	useExtD = `true`
	)		const

Compute the list of indices 'index' for valid samples for the set of variables 'ivars'. Note: each address is ABSOLUTE to the target set of available samples.

Parameters

sampleRanks	Return the list of indices 'index' for valid samples
ivars	Vector giving the indices of the variables of interest
nbgh	Vector giving the ranks of the elligible samples (optional)
useSel	Discard the masked samples (if True)
useZ	Discard samples when Z is not defined
useVerr	Discard the samples where Verr (optional) is not defined
useExtD	True if the definition of the External Drift must be checked

Note: : if the current 'db' has some Z-variable defined, only samples; : where a variable is defined is considered (search for heterotopy).; : if 'nbgh' is not provided, the absolute and relative indices; : returned by this function are similar.; : if 'useExtD' is ON, each sample for each variable is tested against; : all the values of External Drift functions.

◆ getSampleRanksPerVariable()

void gstlrn::Db::getSampleRanksPerVariable	(	1 &	ranks,
		const 1 &	nbgh = `1()`,
		Id	ivar = `-1`,
		bool	useSel = `true`,
		bool	useZ = `true`,
		bool	useVerr = `false`,
		bool	useExtD = `true`
	)		const

Create the vector of elligible sample ranks for the variable 'ivar'.

Parameters

ranks	Vector of elligible sample ranks (Input/Output)
nbgh	Set of potentiel sample ranks
ivar	Target variable rank
useSel	True if the selection must be taken into account
useZ	True if the definition of the target variable must be checked
useVerr	True if the definition of the Variance of Measurement Error must be checked
useExtD	True if the definition of the External Drift must be checked

◆ getSamplesAsSP()

void gstlrn::Db::getSamplesAsSP	(	std::vector< SpacePoint > &	pvec,
		const ASpaceSharedPtr &	space,
		bool	useSel = `false`
	)		const

◆ getSamplesFromNbghAsSP()

void gstlrn::Db::getSamplesFromNbghAsSP	(	std::vector< SpacePoint > &	pvec,
		const 1 &	nbgh
	)		const

◆ getSelection()

Id gstlrn::Db::getSelection ( Id iech ) const

Return the Selection value at Sample 'iech'

Parameters

iech	Sample number

Returns

Remarks: If the selection value if TEST, the sample is considered as masked off.

◆ getSelections()

gstlrn::Db::getSelections ( void ) const

◆ getSortArray()

gstlrn::Db::getSortArray ( ) const

Return the vector of ordered samples by increasing coordinate along X

Returns: Array containing the increasing order

Remarks: The returned array must be desallocated

◆ getTangent()

gstlrn::Db::getTangent	(	Id	item,
		bool	useSel = `false`
	)		const

◆ getUID()

Id gstlrn::Db::getUID ( const String & name ) const

Returns the Single UID which corresponds to the searched name

Parameters

name	Name to be searched for

Returns: Rank of the UID or -1

◆ getUIDByColIdx()

Id gstlrn::Db::getUIDByColIdx ( Id icol ) const

◆ getUIDByLocator()

Id gstlrn::Db::getUIDByLocator	(	const ELoc &	locatorType,
		Id	locatorIndex = `0`
	)		const

◆ getUIDs()

gstlrn::Db::getUIDs ( const VectorString & names ) const

◆ getUIDsByColIdx()

gstlrn::Db::getUIDsByColIdx ( const 1 & icols ) const

◆ getUIDsByLocator()

gstlrn::Db::getUIDsByLocator ( const ELoc & locatorType ) const

◆ getUnit()

double gstlrn::Db::getUnit ( Id idim = 0 ) const

virtual

Return a Unit calculated for a Db (in a given Space dimension)

Parameters

idim	Rank of the Space dimension

Returns

Remarks: This unit is defined as 1/1000 of the extension in the given space dimension

Reimplemented in gstlrn::DbGrid.

◆ getValue()

double gstlrn::Db::getValue	(	const String &	name,
		Id	iech
	)		const

Returns the value of the 'iech' sample of the variable 'name'

This function does not use 'ids' mechanism in order to allow referring to a non-existing variable

◆ getValueByColIdx()

double gstlrn::Db::getValueByColIdx	(	Id	iech,
		Id	icol,
		bool	flagCheck = `true`
	)		const

◆ getValuesByColIdx()

gstlrn::Db::getValuesByColIdx	(	const 1 &	iechs,
		const 1 &	icols,
		bool	bySample = `false`
	)		const

◆ getValuesByNames()

gstlrn::Db::getValuesByNames	(	const 1 &	iechs,
		const VectorString &	names,
		bool	bySample = `false`
	)		const

◆ getValuesByRanks()

gstlrn::Db::getValuesByRanks	(	const 1 &	sampleRanks,
		const 1 &	means = `1()`,
		bool	subtractMean = `true`
	)		const

Returns the values of the Z variables for the samples

Parameters

sampleRanks	Vector of ranks of the samples
means	Vector of means (optional)
subtractMean	Subtract the mean from the values

Returns: VectorDouble

◆ getValuesByRanksInPlace()

void gstlrn::Db::getValuesByRanksInPlace	(	1 *	values,
		const 1 &	sampleRanks,
		const 1 &	means = `1()`,
		bool	subtractMean = `true`
	)		const

◆ getWeight()

double gstlrn::Db::getWeight ( Id iech ) const

◆ getWeights()

gstlrn::Db::getWeights ( bool useSel = false ) const

◆ getWithinBounds()

gstlrn::Db::getWithinBounds	(	Id	item,
		bool	useSel = `false`
	)		const

◆ getZVariable()

double gstlrn::Db::getZVariable	(	Id	iech,
		Id	item
	)		const

◆ hasLargerDimension()

bool gstlrn::Db::hasLargerDimension ( const Db * dbaux ) const

Check if the Space Dimension of 'dbaux' is larger (or equal) than the one of 'this'

Parameters

dbaux Second Db

Returns

◆ hasLocator()

bool gstlrn::Db::hasLocator ( const ELoc & locatorType ) const

◆ hasLocatorDefined()

bool gstlrn::Db::hasLocatorDefined	(	const String &	name,
		const ELoc &	locatorType,
		Id	locatorIndex = `0`
	)		const

Check if a variable (specified by its name) matches the required locator

Parameters

name	Name of the target Variable
locatorType	Characteristics of the required Locator Type
locatorIndex	Index of the required Locator (or -1)

Returns

◆ hasSameDimension()

bool gstlrn::Db::hasSameDimension ( const Db * dbaux ) const

◆ hasZVariable()

bool gstlrn::Db::hasZVariable ( ) const

◆ isActive()

bool gstlrn::Db::isActive ( Id iech ) const

◆ isActiveAndDefined()

bool gstlrn::Db::isActiveAndDefined	(	Id	iech,
		Id	item
	)		const

◆ isActiveDomain()

bool gstlrn::Db::isActiveDomain ( Id iech ) const

◆ isAllIsotopic()

bool gstlrn::Db::isAllIsotopic ( ) const

Check that all the active samples are isotopic

◆ isAllUndefined()

bool gstlrn::Db::isAllUndefined ( Id iech ) const

◆ isAllUndefinedByType()

bool gstlrn::Db::isAllUndefinedByType	(	const ELoc &	loctype,
		Id	iech
	)		const

◆ isConsistent()

virtual bool gstlrn::Db::isConsistent ( ) const

inlinevirtual

Reimplemented in gstlrn::DbGraphO, gstlrn::DbGrid, gstlrn::DbLine, gstlrn::DbMeshStandard, and gstlrn::DbMeshTurbo.

◆ isGrid()

virtual bool gstlrn::Db::isGrid ( ) const

inlinevirtual

Interface for Db.

Reimplemented in gstlrn::DbGrid.

◆ isIsotopic()

bool gstlrn::Db::isIsotopic	(	Id	iech,
		Id	nvar_max = `-1`
	)		const

Check if the information (ELOC.Z) for a sample is isotopic or not Isotopic says that all variables (for this sample) are defined

Parameters

iech	Rank of the sample
nvar_max	Maximum number of variables to be checked (or -1)

Remarks: The returned answer is false is there is no variable defined or if the sample rank is not valid. If 'nvar_max' is defined, the test is performed on the 'nvar_max' first variables. Otherwise, it is performed on all ELOC.Z variables

◆ isLine()

virtual bool gstlrn::Db::isLine ( ) const

inlinevirtual

Reimplemented in gstlrn::DbGraphO, and gstlrn::DbLine.

◆ isMesh()

virtual bool gstlrn::Db::isMesh ( ) const

inlinevirtual

Reimplemented in gstlrn::DbMeshStandard, and gstlrn::DbMeshTurbo.

◆ isNVarComparedTo()

bool gstlrn::Db::isNVarComparedTo	(	Id	nvar,
		Id	compare = `0`
	)		const

Checks the number of variables in 'this' compared to the required 'nvar'

compare=0: they should be equal
compare<0: 'this' should contain less (or equal) than 'nvar'
compare>0: 'this' should contain more (or equal) than 'nvar'

◆ isUIDDefined()

bool gstlrn::Db::isUIDDefined ( Id iuid ) const

◆ mayChangeSampleNumber()

virtual bool gstlrn::Db::mayChangeSampleNumber ( ) const

inlinevirtual

Reimplemented in gstlrn::DbGraphO, gstlrn::DbGrid, gstlrn::DbLine, gstlrn::DbMeshStandard, and gstlrn::DbMeshTurbo.

◆ operator=()

Db & gstlrn::Db::operator= ( const Db & r )

◆ printOneSample()

Table gstlrn::Db::printOneSample	(	Id	iech,
		const VectorString &	names = `VectorString()`,
		bool	excludeCoordinates = `true`,
		bool	skipTitle = `false`
	)		const

◆ resetDims()

void gstlrn::Db::resetDims	(	Id	ncol,
		Id	nech
	)

virtual

Reimplemented in gstlrn::DbGrid.

◆ setAllColumns()

void gstlrn::Db::setAllColumns ( const 1 & tabs )

Setting the contents of all the Columns of a Db

Parameters

tabs	Vector of vectors containing the values to be assigned

◆ setArray()

void gstlrn::Db::setArray	(	Id	iech,
		Id	iuid,
		double	value
	)

Set the value by Sample and UID

Parameters

iech	Index of the Sample
iuid	Index of the UID
value	Value to be assigned

◆ setArrayBySample()

void gstlrn::Db::setArrayBySample	(	Id	iech,
		const 1 &	vec
	)

◆ setArrayByUID()

void gstlrn::Db::setArrayByUID	(	const 1 &	tab,
		Id	iuid
	)

◆ setArrayVec()

void gstlrn::Db::setArrayVec	(	const 1 &	iechs,
		Id	iuid,
		const 1 &	values
	)

Set the values of a series of samples

Parameters

iechs	List of sample indices
iuid	Index of the UID
values	List of values to be written

Remarks: : for efficiency purpose, no check is performed on the sample ranks

◆ setBound()

void gstlrn::Db::setBound	(	Id	iech,
		Id	item,
		double	lower = `TEST`,
		double	upper = `TEST`
	)

◆ setColumn()

void gstlrn::Db::setColumn	(	const 1 &	tab,
		const String &	name,
		const ELoc &	locatorType = `ELoc::fromKey("UNKNOWN")`,
		Id	locatorIndex = `0`,
		bool	useSel = `false`
	)

Set the values for an already existing Column. Note that, if the Column does not exist, this Column is added beforehand

Parameters

tab	Array of values to be stored in the target Column
name	Name of the Column
locatorType	Locator type
locatorIndex	Locator index (starting from 0)
useSel	Should an already existing Selection be taken into account

Remarks: : Arguments 'locatorType' and 'locatorIndex' are only used; : for newly added variables

◆ setColumnByColIdx()

void gstlrn::Db::setColumnByColIdx	(	const 1 &	tab,
		Id	icol,
		bool	useSel = `false`
	)

◆ setColumnByColIdxOldStyle()

void gstlrn::Db::setColumnByColIdxOldStyle	(	const double *	tab,
		Id	icol,
		bool	useSel = `false`
	)

◆ setColumnByUID()

void gstlrn::Db::setColumnByUID	(	const 1 &	tab,
		Id	iuid,
		bool	useSel = `false`
	)

◆ setColumnByUIDOldStyle()

void gstlrn::Db::setColumnByUIDOldStyle	(	const double *	tab,
		Id	iuid,
		bool	useSel = `false`
	)

Update the contents of an already existing variable in a Db

Parameters

tab	Vector containing the values to be written
iuid	UID of the already existing variable to be written
useSel	When TRUE, take the Selection into account (seed remarks)

Remarks: When useSel=TRUE, the input vector should be dimensioned to; the number of active samples. Only the active samples of the Db; are updated using the contents of the input 'tab' vector.

◆ setColumnsByColIdx()

void gstlrn::Db::setColumnsByColIdx	(	const 1 &	tabs,
		const 1 &	icols,
		bool	useSel = `false`
	)

◆ setCoordinate()

void gstlrn::Db::setCoordinate	(	Id	iech,
		Id	idim,
		double	value
	)

◆ setCoordinates()

void gstlrn::Db::setCoordinates	(	Id	idim,
		const 1 &	coor,
		bool	useSel = `false`
	)

◆ setFromLocator()

void gstlrn::Db::setFromLocator	(	const ELoc &	locatorType,
		Id	iech,
		Id	locatorIndex,
		double	value
	)

◆ setInterval()

void gstlrn::Db::setInterval	(	Id	iech,
		Id	item,
		double	rklow = `TEST`,
		double	rkup = `TEST`
	)

◆ setItem() [1/6]

Id gstlrn::Db::setItem	(	const 1 &	rows,
		const ELoc &	locatorType,
		const 1 &	values,
		bool	useSel = `false`
	)

◆ setItem() [2/6]

Id gstlrn::Db::setItem	(	const 1 &	rows,
		const String &	colname,
		const 1 &	values,
		bool	useSel = `false`
	)

◆ setItem() [3/6]

Id gstlrn::Db::setItem	(	const 1 &	rows,
		const VectorString &	colnames,
		const 1 &	values,
		bool	useSel = `false`
	)

◆ setItem() [4/6]

Id gstlrn::Db::setItem	(	const ELoc &	locatorType,
		const 1 &	values,
		bool	useSel = `false`
	)

◆ setItem() [5/6]

Id gstlrn::Db::setItem	(	const String &	colname,
		const 1 &	values,
		bool	useSel = `false`
	)

◆ setItem() [6/6]

Id gstlrn::Db::setItem	(	const VectorString &	colnames,
		const 1 &	values,
		bool	useSel = `false`
	)

◆ setLocator()

void gstlrn::Db::setLocator	(	const String &	name,
		const ELoc &	locatorType = `ELoc::fromKey("UNKNOWN")`,
		Id	locatorIndex = `0`,
		bool	cleanSameLocator = `false`
	)

Define the Locator(s) for the given variable(s)

Parameters

name	Variable name
locatorType	Locator Type
locatorIndex	Locator Index (for the first variable) (starting from 0)
cleanSameLocator	When TRUE, clean variables with same locator beforehand

◆ setLocatorByColIdx()

void gstlrn::Db::setLocatorByColIdx	(	Id	icol,
		const ELoc &	locatorType = `ELoc::fromKey("UNKNOWN")`,
		Id	locatorIndex = `0`,
		bool	cleanSameLocator = `false`
	)

◆ setLocatorByUID()

void gstlrn::Db::setLocatorByUID	(	Id	iuid,
		const ELoc &	locatorType = `ELoc::fromKey("UNKNOWN")`,
		Id	locatorIndex = `0`,
		bool	cleanSameLocator = `false`
	)

Setting the locator for a variable designated by its UID

Parameters

iuid	Index of the UID
locatorType	Type of locator (include ELoc::UNKNOWN)
locatorIndex	Rank in the Locator (starting from 0)
cleanSameLocator	When TRUE, clean variables with same locator beforehand

Remarks: : 1) At this stage, no check is performed to see if items; : are consecutive and all defined. This allow using this function in any order.; : Argument 'locatorIndex' can be set to a negative value: in that case,; : the next index of the same 'locatorType' is generated automatically

◆ setLocators()

void gstlrn::Db::setLocators	(	const VectorString &	names,
		const ELoc &	locatorType = `ELoc::fromKey("UNKNOWN")`,
		Id	locatorIndex = `0`,
		bool	cleanSameLocator = `false`
	)

Setting the locator for a set of variables designated by their names

Parameters

names	Vector of variable names
locatorType	Locator type (include ELoc::UNKNOWN)
locatorIndex	Starting locator rank (starting from 0)
cleanSameLocator	When TRUE, clean variables with same locator beforehand

◆ setLocatorsByColIdx()

void gstlrn::Db::setLocatorsByColIdx	(	const 1 &	icols,
		const ELoc &	locatorType = `ELoc::fromKey("UNKNOWN")`,
		Id	locatorIndex = `0`,
		bool	cleanSameLocator = `false`
	)

◆ setLocatorsByUID() [1/2]

void gstlrn::Db::setLocatorsByUID	(	const 1 &	iuids,
		const ELoc &	locatorType = `ELoc::fromKey("UNKNOWN")`,
		Id	locatorIndex = `0`,
		bool	cleanSameLocator = `false`
	)

◆ setLocatorsByUID() [2/2]

void gstlrn::Db::setLocatorsByUID	(	Id	number,
		Id	iuid,
		const ELoc &	locatorType = `ELoc::fromKey("UNKNOWN")`,
		Id	locatorIndex = `0`,
		bool	cleanSameLocator = `false`
	)

Set the Locators for a set of variables identified by their UID

Parameters

number	Number of variables to be set
iuid	Index of the first UID
locatorType	Type of the Locator (include ELoc::UNKNOWN)
locatorIndex	Rank of the first Locator index (starting from 0)
cleanSameLocator	When TRUE, clean variables with same locator beforehand

◆ setLocVariables()

void gstlrn::Db::setLocVariables	(	const ELoc &	loctype,
		Id	iech,
		const 1 &	values
	)

◆ setSampleCoordinates()

void gstlrn::Db::setSampleCoordinates	(	Id	iech,
		const 1 &	coor
	)

◆ setValue()

void gstlrn::Db::setValue	(	const String &	name,
		Id	iech,
		double	value
	)

Sets the value of the 'iech' sample of the variable 'name'

This function does not use 'ids' mechanism in order to allow referring to a non-existing variable

◆ setValueByColIdx()

void gstlrn::Db::setValueByColIdx	(	Id	iech,
		Id	icol,
		double	value,
		bool	flagCheck = `true`
	)

◆ setValuesByColIdx()

void gstlrn::Db::setValuesByColIdx	(	const 1 &	iechs,
		const 1 &	icols,
		const 1 &	values,
		bool	bySample = `false`
	)

◆ setValuesByNames()

void gstlrn::Db::setValuesByNames	(	const 1 &	iechs,
		const VectorString &	names,
		const 1 &	values,
		bool	bySample = `false`
	)

◆ setZVariable()

void gstlrn::Db::setZVariable	(	Id	iech,
		Id	item,
		double	value
	)

◆ shrinkToValidCols()

gstlrn::Db::shrinkToValidCols ( const 1 & cols ) const

◆ shrinkToValidRows()

gstlrn::Db::shrinkToValidRows ( const 1 & rows ) const

◆ switchLocator()

void gstlrn::Db::switchLocator	(	const ELoc &	locatorType_in,
		const ELoc &	locatorType_out
	)

◆ toString()

String gstlrn::Db::toString ( const AStringFormat * strfmt = nullptr ) const

overridevirtual

ICloneable interface.

AStringable Interface

Reimplemented from gstlrn::AStringable.

Reimplemented in gstlrn::DbGraphO, gstlrn::DbGrid, gstlrn::DbLine, gstlrn::DbMeshStandard, and gstlrn::DbMeshTurbo.

◆ updArray()

void gstlrn::Db::updArray	(	Id	iech,
		Id	iuid,
		const EOperator &	oper,
		double	value
	)

◆ updArrayVec()

void gstlrn::Db::updArrayVec	(	const 1 &	iechs,
		Id	iuid,
		const EOperator &	oper,
		1 &	values
	)

◆ updZVariable()

void gstlrn::Db::updZVariable	(	Id	iech,
		Id	item,
		const EOperator &	oper,
		double	value
	)

Member Data Documentation

◆ DECLARE_TOTL

gstlrn::Db::DECLARE_TOTL

Has a specific implementation in the Target language.

The documentation for this class was generated from the following files:

include/Db/Db.hpp
src/Db/Db.cpp

Detailed Description

Public Member Functions

Static Public Member Functions

Public Attributes

Constructor & Destructor Documentation

◆ Db() [1/2]

◆ Db() [2/2]

◆ ~Db()

Member Function Documentation

◆ addColumns()

◆ addColumnsByConstant()

◆ addColumnsByVVD()

◆ addColumnsRandom()

◆ addSamples()

◆ addSelection()

◆ addSelectionByLimit()

◆ addSelectionByRanks()

◆ addSelectionByVariable()

◆ addSelectionFromDbByConvexHull()

◆ addSelectionRandom()

◆ areSame()

◆ clearLocators()

◆ clearSelection()

◆ combineSelection()

◆ copyByCol()

◆ copyByUID()

◆ coverSeveralDbs()

◆ deleteSample()

◆ deleteSamples()

◆ dumpGeometry()

◆ duplicateColumnByUID()

◆ filter()

◆ generateRank()

◆ getActiveArray()

◆ getAllCoordinates()

◆ getAllCoordinatesMat()

◆ getAllUIDs() [1/2]

◆ getAllUIDs() [2/2]

◆ getArray()

◆ getArrayBySample()

◆ getArrayByUID()

◆ getArrays()

◆ getArrayVec()

◆ getCodeList()

◆ getColAdressByColIdx()

◆ getColIdx()

◆ getColIdxByLocator()

◆ getColIdxByUID()

◆ getColIdxs() [1/2]

◆ getColIdxs() [2/2]

◆ getColIdxsByLocator()

◆ getColIdxsByUID()

◆ getCoordinate()

◆ getCoordinatesInPlace()

◆ getCosineToDirection()

◆ getDistance()

◆ getDistance1D()

◆ getDistanceVecInPlace()

◆ getFromLocator()

◆ getGradient()

◆ getIncrements()

◆ getItem() [1/6]

◆ getItem() [2/6]

◆ getItem() [3/6]

◆ getItem() [4/6]

◆ getItem() [5/6]

◆ getItem() [6/6]

◆ getItemNames() [1/3]

◆ getItemNames() [2/3]

◆ getItemNames() [3/3]

◆ getLastName()

◆ getLastUID()

◆ getListOfSampleIndicesInPlace()

◆ getListOfSampleIndicesPerVariableInPlace()

◆ getLocator()

◆ getLocatorByColIdx()

◆ getLocatorByUID()

◆ getLocators()

◆ getLocVariables()

◆ getMultipleSelectedRanks()
