Class containing the Data Information organized as a Regular Grid. More...

#include <DbGrid.hpp>

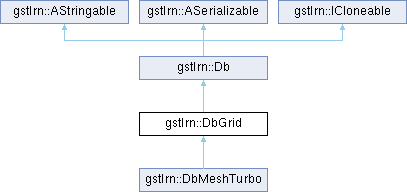

Inheritance diagram for gstlrn::DbGrid:

Detailed Description

Class containing the Data Information organized as a Regular Grid.

This class is derived from the Db class, with a specific decoration: its samples correspond to the nodes of a regular grid defined in the current space.

A regular grid is a tessellation of n-dimensional Euclidean space by congruent parallelotopes (e.g. bricks). The number of meshes along each space direction is defined by NX and the total number of samples is equal to: NX[1] x NX[2] x ... x NX[NDIM] where NDIM is he space dimension.

Note that this particular Db does not allow the modification of the sample number by addition or deletion.

The grid decoration contains the following information:

the number of meshes per direction (NX)
the coordinates of the grid origin (X0) defined as the node located in first position (smallest index) along each space direction
the mesh value along each space direction (DX)
the rotation angles around the grid origin (the origin is invariant through this rotation).

Note that rotation is defined by as many angles as the space dimension. This general property is not valid:

for 1D where the rotation concept does not make sense
for 2D where a single angle would be sufficient: however a second dummy angle (always set to 0) is used for generality sake.

Note that this grid decoration essentially describes the organization of the grid nodes. Then the same grid can be considered as a grid of points (punctual grid) or a grid of cells (block grid). In the latter case:

the origin is (currently) the lower-left corner (for 2D) or the origin cell.
the extensions of the cells are considered as constant by default and equal to DX. However, they can be replaced by a set of variables allowing the user to assign a variable cell extension for each cell.

Public Member Functions
	DbGrid ()

	DbGrid (const DbGrid &r)

DbGrid &	operator= (const DbGrid &r)

virtual	~DbGrid ()

String	toString (const AStringFormat *strfmt=nullptr) const override
	ICloneable interface.

bool	isGrid () const override
	Db Interface.

double	getCoordinate (Id iech, Id idim, bool flag_rotate=true) const override

void	getCoordinatesInPlace (1 &coor, Id iech, bool flag_rotate=true) const override
	Update the vector of coordinates (optimized manner) No check is done with respect to the dimension of the returned vector.

double	getUnit (Id idim=0) const override

Id	getNDim () const override

bool	mayChangeSampleNumber () const override

void	resetDims (Id ncol, Id nech) override

bool	isConsistent () const override

Id	reset (const 1 &nx, const 1 &dx=1(), const 1 &x0=1(), const 1 &angles=1(), const ELoadBy &order=ELoadBy::fromKey("SAMPLE"), const 1 &tab=1(), const VectorString &names=VectorString(), const VectorString &locatorNames=VectorString(), bool flagAddSampleRank=true, bool flagAddCoordinates=true)

Id	resetCoveringDb (const Db *db, const 1 &nx=1(), const 1 &dx=1(), const 1 &x0=1(), const 1 &margin=1())

Id	resetFromPolygon (Polygons *polygon, const 1 &nodes, const 1 &dcell, bool flagAddSampleRank=true)

DbGrid *	coarsify (const 1 &nmult)

DbGrid *	refine (const 1 &nmult)

bool	migrateAllVariables (Db *dbin, bool flag_fill=true, bool flag_inter=true, bool flag_ball=false, bool flagAddSampleRank=true)

const Grid &	getGrid () const

void	generateCoordinates (const String &radix="x")

	getColumnSubGrid (const String &name, Id idim0, Id rank, bool useSel=false)

Id	gridDefine (const 1 &nx, const 1 &dx=1(), const 1 &x0=1(), const 1 &angles=1())

void	gridCopyParams (Id mode, const Grid &gridaux)

bool	isSameGrid (const Grid &grid) const

bool	isSameGridMesh (const DbGrid &dbaux) const

bool	isSameGridRotation (const DbGrid &dbaux) const

bool	isGridRotated () const

Id	getNTotal () const

double	getCellSize () const

double	getVolume () const

	getExtends () const

double	getExtend (Id idim) const

Id	getNX (Id idim) const

	getNXs () const

	getNXsExt (Id ndimMax) const

bool	hasSingleBlock () const

double	getDX (Id idim) const

	getDXs () const

double	getX0 (Id idim) const

	getX0s () const

double	getAngle (Id idim) const

	getAngles () const

	getRotMat () const

void	setNX (Id idim, Id value)

void	setX0 (Id idim, double value)

void	setDX (Id idim, double value)

void	setRotation (const Rotation &rotation)

	getGridAxis (Id idim) const

	getCoordinateFromCorner (const 1 &icorner) const

void	getCoordinateFromCornerInPlace (1 &coor, const 1 &icorner) const

	getCoordinatesByIndice (const 1 &indice, bool flag_rotate=true, const 1 &shift=1(), const 1 &dxsPerCell=1()) const

void	getCoordinatesByIndiceInPlace (1 &coor, const 1 &indice, bool flag_rotate=true, const 1 &shift=1(), const 1 &dxsPerCell=1()) const

	getCoordinatesPerSample (Id iech, bool flag_rotate=true) const

void	getCoordinatesPerSampleInPlace (1 &coor, Id iech, bool flag_rotate=true) const

Id	coordinateToRank (const 1 &coor, bool centered=false, double eps=EPSILON6) const

	coordinateToIndices (const 1 &coor, bool centered=false, double eps=EPSILON6) const

Id	coordinateToIndicesInPlace (const 1 &coor, 1 &indices, bool centered=false, double eps=EPSILON6) const

	getCenterIndices (bool flagSup=false) const

Id	indiceToRank (const 1 &indice) const

void	rankToIndice (Id node, 1 &indices, bool minusOne=false) const

void	rankToCoordinatesInPlace (Id rank, 1 &coor, const 1 &percent=1()) const

	rankToCoordinates (Id rank, const 1 &percent=1()) const

void	indicesToCoordinateInPlace (const 1 &indice, 1 &coor, const 1 &percent=1()) const

	indicesToCoordinate (const 1 &indice, const 1 &percent=1()) const

bool	sampleBelongsToCell (const 1 &coor, Id rank, const 1 &dxsPerCell=1()) const

Id	centerCoordinateInPlace (1 &coor, bool centered=false, bool stopIfOut=false, double eps=EPSILON6) const

	locateDataInGrid (const Db *data, const 1 &rankIn=1(), bool centered=false, bool useSel=false) const

Id	getMirrorIndex (Id idim, Id ix) const

	getSlice (const String &name, Id pos=0, Id indice=0, bool useSel=false) const

	getOneSlice (const String &name, Id posx=0, Id posy=1, const 1 &corner=1(), bool useSel=false) const

	getOneSliceForCoordinate (Id idim, Id posx=0, Id posy=1, const 1 &corner=1(), bool useSel=false) const

Id	assignGridColumn (const String &name, Id idim, Id rank, double value, bool useSel=false)

	getBlockExtensions (Id node) const

	getCellEdges (Id node=0, bool forceGridMesh=false) const

	getAllCellsEdges (bool forceGridMesh=false) const

	getGridEdges () const

	getCodir (const 1 &grincr) const

	getLimitsFromVariableExtend (const String &nameTop, const String &nameBot, const 1 &dimExclude=1()) const

Id	setSelectionFromVariableExtend (const String &nameTop, const String &nameBot)

void	clean3DFromSurfaces (const VectorString &names, const DbGrid *surf2D, const String &nameTop=String(), const String &nameBot=String(), bool verbose=false)

Id	morpho (const EMorpho &oper, double vmin=0.5, double vmax=1.5, Id option=0, const 1 &radius=1(), bool flagDistErode=false, bool verbose=false, const NamingConvention &namconv=NamingConvention("Morpho"))

Id	smooth (ANeigh *neigh, Id type=1, double range=1., const NamingConvention &namconv=NamingConvention("Smooth"))

Id	addSelectionFromDbByMorpho (Db *db, Id nmin=0, Id radius=0, Id option=0, const 1 &dilation=1(), bool verbose=false, const NamingConvention &namconv=NamingConvention("Morpho", false, false, true, ELoc::fromKey("SEL")))

void	getSampleAsSTInPlace (Id iech, SpaceTarget &P) const override

	getDiscretizedBlock (const 1 &ndiscs, Id iech=0, bool flagPerCell=false, bool flagRandom=false, Id seed=132433) const

void	getGridPileInPlace (Id iuid, const 1 &indg, Id idim0, 1 &vec) const

void	setGridPileInPlace (Id iuid, const 1 &indg, Id idim0, const 1 &vec)

	getDistanceToOrigin (const 1 &origin, const 1 &radius=1())

void	initThread () const override

Public Member Functions inherited from gstlrn::Db
	Db ()

	Db (const Db &r)

Db &	operator= (const Db &r)

virtual	~Db ()

virtual bool	isLine () const

virtual bool	isMesh () const

Id	resetFromSamples (Id nech, const ELoadBy &order=ELoadBy::fromKey("SAMPLE"), const 1 &tab=1(), const VectorString &names=VectorString(), const VectorString &locatorNames=VectorString(), bool flagAddSampleRank=true)

Id	resetFromCSV (const String &filename, bool verbose, const CSVformat &csvfmt, Id ncol_max=-1, Id nrow_max=-1, bool flagAddSampleRank=true)

Id	resetFromBox (Id nech, const 1 &coormin, const 1 &coormax, Id ndim=2, double extend=0., Id seed=321415, bool flagAddSampleRank=true)

Id	resetFromOnePoint (const 1 &tab=1(), bool flagAddSampleRank=true)

Id	resetSamplingDb (const Db *dbin, double proportion=0, Id number=0, const VectorString &names=VectorString(), Id seed=23241, bool verbose=false, bool flagAddSampleRank=true)

Id	resetReduce (const Db *dbin, const VectorString &names=VectorString(), const 1 &ranks=1(), bool verbose=false)

Id	resetFromGridRandomized (const DbGrid *dbin, double randperc=0., bool flagAddSampleRank=true)

const std::vector< double > &	getArrays () const

String	getNameByLocator (const ELoc &locatorType, Id locatorIndex=0) const

String	getNameByColIdx (Id icol) const

String	getNameByUID (Id iuid) const

VectorString	getName (const String &name) const

VectorString	getNames (const VectorString &names) const

VectorString	getNamesByLocator (const ELoc &locatorType) const

VectorString	getNamesByColIdx (const 1 &icols) const

VectorString	getNamesByUID (const 1 &iuids) const

VectorString	getAllNames (bool excludeRankAndCoordinates=false, bool verbose=false) const

void	setName (const String &old_name, const String &name)

void	setName (const VectorString &list, const String &name)

void	setNameByUID (Id iuid, const String &name)

void	setNameByColIdx (Id icol, const String &name)

void	setNameByLocator (const ELoc &locatorType, const String &name)

VectorString	expandNameList (const VectorString &names) const

VectorString	expandNameList (const String &names) const

VectorString	identifyNames (const VectorString &names) const

Id	getNUIDMax () const

Id	getNColumn () const

Id	getNSample (bool useSel=false) const

Id	getNSampleActiveAndDefined (Id item) const

Id	getNSampleActiveAndDefined (const String &name) const

Id	getNSampleActive () const

Id	getRankRelativeToAbsolute (Id irel) const

Id	getRankAbsoluteToRelative (Id iabs) const

void	clearLocators (const ELoc &locatorType)

void	clearSelection ()

void	setLocatorByUID (Id iuid, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocatorByColIdx (Id icol, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocator (const String &name, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocators (const VectorString &names, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocatorsByUID (Id number, Id iuid, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocatorsByUID (const 1 &iuids, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	setLocatorsByColIdx (const 1 &icols, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool cleanSameLocator=false)

void	addColumnsByVVD (const 1 &tab, const String &radix, const ELoc &locatorType, Id locatorIndex=0, bool useSel=false)

Id	addColumns (const 1 &tab, const String &radix="New", const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool useSel=false, double valinit=0., Id nvar=1)

Id	addColumnsByConstant (Id nadd=1, double valinit=0., const String &radix="New", const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, Id nechInit=0)

Id	addColumnsRandom (Id nadd, const String &radix="New", const ELoc &locatorType=ELoc::fromKey("Z"), Id locatorIndex=0, Id seed=1352, Id nechInit=0)

Id	addSelection (const 1 &tab=1(), const String &name="NewSel", const String &combine="set")

Id	addSelectionByVariable (const String &varname, double lower=TEST, double upper=TEST, const String &name="NewSel", const String &oldSelName="")
	Create a selection by testing a target variable against 'lower' and 'upper'.

Id	addSelectionByRanks (const 1 &ranks, const String &name="NewSel", const String &combine="set")

Id	addSelectionByLimit (const String &testvar, const Limits &limits=Limits(), const String &name="NewSel", const String &combine="set")

Id	addSelectionFromDbByConvexHull (Db *db, double dilate=0., bool verbose=false, const NamingConvention &namconv=NamingConvention("Hull", true, true, true, ELoc::fromKey("SEL")))

Id	addSelectionRandom (double prop, Id seed=138213, const String &name="NewSel", const String &combine="set")

Id	addSamples (Id nadd, double valinit=TEST)

Id	deleteSample (Id e_del)

Id	deleteSamples (const 1 &e_dels)

void	switchLocator (const ELoc &locatorType_in, const ELoc &locatorType_out)

Id	getLastUID (Id number=0) const

String	getLastName (Id number=0) const

Id	getColIdx (const String &name) const

Id	getColIdxByUID (Id iuid) const

Id	getColIdxByLocator (const ELoc &locatorType, Id locatorIndex=0) const

	getColIdxs (const String &name) const

	getColIdxs (const VectorString &names) const

	getColIdxsByUID (const 1 &iuids) const

	getColIdxsByLocator (const ELoc &locatorType) const

void	setColumn (const 1 &tab, const String &name, const ELoc &locatorType=ELoc::fromKey("UNKNOWN"), Id locatorIndex=0, bool useSel=false)

void	setColumnByUIDOldStyle (const double *tab, Id iuid, bool useSel=false)

void	setColumnByUID (const 1 &tab, Id iuid, bool useSel=false)

void	setColumnByColIdx (const 1 &tab, Id icol, bool useSel=false)

void	setColumnsByColIdx (const 1 &tabs, const 1 &icols, bool useSel=false)

void	setColumnByColIdxOldStyle (const double *tab, Id icol, bool useSel=false)

void	duplicateColumnByUID (Id iuid_in, Id iuid_out)

	getItem (const 1 &rows, const VectorString &colnames, bool useSel=false) const

	getItem (const 1 &rows, const String &colname, bool useSel=false) const

	getItem (const 1 &rows, const ELoc &locatorType, bool useSel=false) const

	getItem (const VectorString &colnames, bool useSel=false) const

	getItem (const String &colname, bool useSel=false) const

	getItem (const ELoc &locatorType, bool useSel=false) const

VectorString	getItemNames (const VectorString &colnames) const

VectorString	getItemNames (const String &colname) const

VectorString	getItemNames (const ELoc &locatorType) const

Id	setItem (const 1 &rows, const VectorString &colnames, const 1 &values, bool useSel=false)

Id	setItem (const 1 &rows, const ELoc &locatorType, const 1 &values, bool useSel=false)

Id	setItem (const VectorString &colnames, const 1 &values, bool useSel=false)

Id	setItem (const ELoc &locatorType, const 1 &values, bool useSel=false)

Id	setItem (const 1 &rows, const String &colname, const 1 &values, bool useSel=false)

Id	setItem (const String &colname, const 1 &values, bool useSel=false)

bool	getLocator (const String &name, ELoc ret_locatorType, Id ret_locatorIndex) const

bool	getLocatorByColIdx (Id icol, ELoc ret_locatorType, Id ret_locatorIndex) const

bool	getLocatorByUID (Id iuid, ELoc ret_locatorType, Id ret_locatorIndex) const

VectorString	getLocators (bool anyLocator=true, const ELoc &locatorType=ELoc::fromKey("UNKNOWN")) const

bool	isUIDDefined (Id iuid) const

Id	getUID (const String &name) const

Id	getUIDByColIdx (Id icol) const

Id	getUIDByLocator (const ELoc &locatorType, Id locatorIndex=0) const

	getUIDs (const VectorString &names) const

	getUIDsByLocator (const ELoc &locatorType) const

	getUIDsByColIdx (const 1 &icols) const

	getAllUIDs () const

void	getAllUIDs (1 &iuids) const

void	copyByUID (Id iuidIn, Id iuidOut)

void	copyByCol (Id icolIn, Id icolOut)

Id	getNFacies (void) const

bool	hasLocatorDefined (const String &name, const ELoc &locatorType, Id locatorIndex=0) const

	getSampleCoordinates (Id iech) const

void	getSampleAsSPInPlace (SpacePoint &P, Id iabs) const
	In the SpacePoint 'P', define the sample rank and coordinates.

	getSampleLocators (const ELoc &locatorType, Id iech) const

	getIncrements (const 1 &iechs, const 1 &jechs) const

	getOneCoordinate (Id idim, bool useSel=false, bool flag_rotate=true) const

	getAllCoordinates (bool useSel=false) const

MatrixDense	getAllCoordinatesMat (const MatrixDense &box=MatrixDense()) const

void	setCoordinate (Id iech, Id idim, double value)

void	setCoordinates (Id idim, const 1 &coor, bool useSel=false)

void	setSampleCoordinates (Id iech, const 1 &coor)

double	getDistance1D (Id iech, Id jech, Id idim=0, bool flagAbs=false) const

double	getDistance (Id iech, Id jech) const

Id	getDistanceVecInPlace (Id iech, Id jech, 1 &dd, const Db *db2=nullptr) const

double	getValue (const String &name, Id iech) const

void	setValue (const String &name, Id iech, double value)

double	getArray (Id iech, Id iuid) const

void	getArrayVec (const 1 &iechs, Id iuid, 1 &values) const

void	setArray (Id iech, Id iuid, double value)

void	setArrayVec (const 1 &iechs, Id iuid, const 1 &values)

void	updArray (Id iech, Id iuid, const EOperator &oper, double value)

void	updArrayVec (const 1 &iechs, Id iuid, const EOperator &oper, 1 &values)

	getArrayByUID (Id iuid, bool useSel=false) const

void	setArrayByUID (const 1 &tab, Id iuid)

void	getArrayBySample (std::vector< double > &vals, Id iech) const

void	setArrayBySample (Id iech, const 1 &vec)

void	getSamplesAsSP (std::vector< SpacePoint > &pvec, const ASpaceSharedPtr &space, bool useSel=false) const

void	getSamplesFromNbghAsSP (std::vector< SpacePoint > &pvec, const 1 &nbgh) const

bool	hasLocator (const ELoc &locatorType) const

double	getFromLocator (const ELoc &locatorType, Id iech, Id locatorIndex=0) const

void	setFromLocator (const ELoc &locatorType, Id iech, Id locatorIndex, double value)

double	getValueByColIdx (Id iech, Id icol, bool flagCheck=true) const

const double *	getColAdressByColIdx (Id icol) const

void	setValueByColIdx (Id iech, Id icol, double value, bool flagCheck=true)

	getValuesByNames (const 1 &iechs, const VectorString &names, bool bySample=false) const

	getValuesByColIdx (const 1 &iechs, const 1 &icols, bool bySample=false) const

void	setValuesByNames (const 1 &iechs, const VectorString &names, const 1 &values, bool bySample=false)

void	setValuesByColIdx (const 1 &iechs, const 1 &icols, const 1 &values, bool bySample=false)

Id	getNLoc (const ELoc &loctype) const

bool	hasLocVariable (const ELoc &loctype) const

double	getLocVariable (const ELoc &loctype, Id iech, Id item) const

void	setLocVariable (const ELoc &loctype, Id iech, Id item, double value)

void	updLocVariable (const ELoc &loctype, Id iech, Id item, const EOperator &oper, double value)

Id	getNZValues () const

bool	hasZVariable () const

double	getZVariable (Id iech, Id item) const

void	setZVariable (Id iech, Id item, double value)

void	updZVariable (Id iech, Id item, const EOperator &oper, double value)

	getLocVariables (const ELoc &loctype, Id iech, Id nitemax=0) const

void	setLocVariables (const ELoc &loctype, Id iech, const 1 &values)

bool	isNVarComparedTo (Id nvar, Id compare=0) const

bool	isIsotopic (Id iech, Id nvar_max=-1) const

bool	isAllUndefined (Id iech) const

bool	isAllUndefinedByType (const ELoc &loctype, Id iech) const

bool	isAllIsotopic () const

void	setInterval (Id iech, Id item, double rklow=TEST, double rkup=TEST)

Id	getNInterval () const

void	setBound (Id iech, Id item, double lower=TEST, double upper=TEST)

	getWithinBounds (Id item, bool useSel=false) const

	getGradient (Id item, bool useSel=false) const

	getTangent (Id item, bool useSel=false) const

	getCodeList (void) const

Id	getSelection (Id iech) const

	getSelections (void) const

void	getSampleRanksPerVariable (1 &ranks, const 1 &nbgh=1(), Id ivar=-1, bool useSel=true, bool useZ=true, bool useVerr=false, bool useExtD=true) const
	Create the vector of elligible sample ranks for the variable 'ivar'.

	getSampleRanks (const 1 &ivars=1(), const 1 &nbgh=1(), bool useSel=true, bool useZ=true, bool useVerr=false, bool useExtD=true) const

void	getSampleRanksInPlace (1 &sampleRanks, const 1 &ivars=1(), const 1 &nbgh=1(), bool useSel=true, bool useZ=true, bool useVerr=false, bool useExtD=true) const

	getValuesByRanks (const 1 &sampleRanks, const 1 &means=1(), bool subtractMean=true) const

void	getValuesByRanksInPlace (1 *values, const 1 &sampleRanks, const 1 &means=1(), bool subtractMean=true) const

Id	getListOfSampleIndicesPerVariableInPlace (1 &ranks, Id ivar=0, bool useSel=true) const
	Returns the vector of indices for samples with variable 'ivar' defined For the target variable 'ivar' and for sample 'iech',.

Id	getListOfSampleIndicesInPlace (Id nvar, 1 &cumul, 1 &ranks, bool useSel=true) const
	Updates (and resizes) the two arguments:

double	getWeight (Id iech) const

	getWeights (bool useSel=false) const

double	getSimvar (const ELoc &locatorType, Id iech, Id isimu, Id ivar, Id icase, Id nbsimu, Id nvar) const

void	setSimvar (const ELoc &locatorType, Id iech, Id isimu, Id ivar, Id icase, Id nbsimu, Id nvar, double value)

void	updSimvar (const ELoc &locatorType, Id iech, Id isimu, Id ivar, Id icase, Id nbsimu, Id nvar, const EOperator &oper, double value)

bool	isActive (Id iech) const

bool	isActiveDomain (Id iech) const

bool	isActiveAndDefined (Id iech, Id item) const

VectorBool	getActiveArray () const

	getSortArray () const

double	getCosineToDirection (Id iech1, Id iech2, const 1 &codir) const

	getColumn (const String &name, bool useSel=false, bool flagCompress=true) const

	getColumnByUID (Id iuid, bool useSel=false, bool flagCompress=true) const

	getColumnByLocator (const ELoc &locatorType, Id locatorIndex=0, bool useSel=false, bool flagCompress=true) const

	getColumnByColIdx (Id icol, bool useSel=false, bool flagCompress=true) const

	getAllColumns (bool useSel=false, bool flagCompress=true) const

	getColumns (const VectorString &names=VectorString(), bool useSel=false, bool flagCompress=true, const 1 &origins=1()) const

	getColumnsAsVVD (const VectorString &names=VectorString(), bool useSel=false, bool flagCompress=true) const

MatrixDense	getColumnsAsMatrix (const VectorString &names, bool useSel=false, bool flagCompress=true) const

	getColumnsByColIdx (const 1 &icols=1(), bool useSel=false, bool flagCompress=true, const 1 &origins=1()) const

	getColumnsByColIdxInterval (Id icol_beg, Id icol_end, bool useSel=false, bool flagCompress=true) const

	getColumnsActiveAndDefined (const ELoc &locatorType, const 1 &origins=1()) const

	getColumnsByLocator (const ELoc &locatorType, bool useSel=false, bool flagCompress=true, const 1 &origins=1()) const

	getColumnsByUID (const 1 &iuids, bool useSel=false, bool flagCompress=true, const 1 &origins=1()) const

	getColumnsByUIDInterval (Id iuid_beg, Id iuid_end, bool useSel=false, bool flagCompress=true) const

void	setAllColumns (const 1 &tabs)

void	deleteColumn (const String &name)

void	deleteColumnByUID (Id iuid_del)

void	deleteColumnByColIdx (Id icol_del)

void	deleteColumns (const VectorString &names)

void	deleteColumnsByLocator (const ELoc &locatorType)

void	deleteColumnsByUID (const 1 &iuids)

void	deleteColumnsByColIdx (const 1 &icols)

void	deleteColumnsByUIDRange (Id i_del, Id n_del)

	getExtrema (Id idim, bool useSel=false) const

	getExtremas (bool useSel=false) const

	getExtends (bool useSel=false) const

	getCoorMinimum (bool useSel=false) const

	getCoorMaximum (bool useSel=false) const

double	getExtension (Id idim, bool useSel=false) const

double	getExtensionDiagonal (bool useSel=false) const

double	getCenter (Id idim, bool useSel=false) const

	getCenters (bool useSel=false) const

void	getExtensionInPlace (1 &mini, 1 &maxi, bool flagPreserve=false, bool useSel=false) const

double	getMinimum (const String &name, bool useSel=false) const

double	getMaximum (const String &name, bool useSel=false) const

	getRange (const String &name, bool useSel=false) const

double	getMean (const String &name, bool useSel=false) const

double	getVariance (const String &name, bool useSel=false) const

double	getStdv (const String &name, bool useSel=false) const

double	getCorrelation (const String &name1, const String &name2, bool useSel=false) const

bool	hasSameDimension (const Db *dbaux) const

bool	hasLargerDimension (const Db *dbaux) const

bool	isColIdxValid (Id icol) const

bool	isUIDValid (Id iuid) const

bool	isSampleIndexValid (Id iech) const

bool	isSampleIndicesValid (const 1 &iechs, bool useSel=false) const

bool	isLocatorIndexValid (const ELoc &locatorType, Id locatorIndex) const

bool	isDimensionIndexValid (Id idim) const

void	combineSelection (1 &sel, const String &combine="set") const

void	generateRank (const String &radix="rank")

	shrinkToValidRows (const 1 &rows) const

	shrinkToValidCols (const 1 &cols) const

void	statisticsBySample (const VectorString &names, const std::vector< EStatOption > &opers=EStatOption::fromKeys({"MEAN"}), bool flagIso=true, double proba=TEST, double vmin=TEST, double vmax=TEST, const NamingConvention &namconv=NamingConvention("Stats"))

	statisticsMulti (const VectorString &names, bool flagIso=true, bool verbose=false, const String &title="")

bool	areSame (const String &name1, const String &name2, double eps=EPSILON3, bool useSel=true, bool verbose=false) const

	filter (const String &name, const Interval &interval, Id belowRow=ITEST, Id aboveRow=ITEST) const

Table	printOneSample (Id iech, const VectorString &names=VectorString(), bool excludeCoordinates=true, bool skipTitle=false) const

void	dumpGeometry (Id iech, Id jech) const

Public Member Functions inherited from gstlrn::AStringable
	AStringable ()

	AStringable (const AStringable &r)

AStringable &	operator= (const AStringable &r)

virtual	~AStringable ()

virtual void	display (const AStringFormat *strfmt=nullptr) const final

virtual void	display (Id level) const final

Public Member Functions inherited from gstlrn::ASerializable
	ASerializable ()

	ASerializable (const ASerializable &r)

ASerializable &	operator= (const ASerializable &r)

	ASerializable (ASerializable &&r) noexcept

ASerializable &	operator= (ASerializable &&r) noexcept

virtual	~ASerializable ()

bool	dumpToNF (const String &NFFilename, const EFormatNF &format=EFormatNF::fromKey("DEFAULT"), bool verbose=false) const
	Dump the contents of an object into an Output File using a given Output NF Format.

void	setDefaultFormatNF (const EFormatNF &format)

Public Member Functions inherited from gstlrn::ICloneable
	ICloneable ()

virtual	~ICloneable ()

virtual ICloneable *	clone () const =0

std::shared_ptr< ICloneable >	cloneShared () const

std::unique_ptr< ICloneable >	cloneUnique () const

Static Public Member Functions
static DbGrid *	createFromNF (const String &NFFilename, bool verbose=true)

static DbGrid *	create (const 1 &nx, const 1 &dx=1(), const 1 &x0=1(), const 1 &angles=1(), const ELoadBy &order=ELoadBy::fromKey("SAMPLE"), const 1 &tab=1(), const VectorString &names=VectorString(), const VectorString &locatorNames=VectorString(), bool flagAddSampleRank=true, bool flagAddCoordinates=true)

static DbGrid *	createCoveringDb (const Db *dbin, const 1 &nx=1(), const 1 &dx=1(), const 1 &x0=1(), const 1 &margin=1())

static DbGrid *	createFromPolygon (Polygons *polygon, const 1 &nodes, const 1 &dcell, bool flagAddSampleRank=true)

static DbGrid *	createCoarse (DbGrid *dbin, const 1 &nmult, bool flagCell=true, bool flagAddSampleRank=true)

static DbGrid *	createRefine (DbGrid *dbin, const 1 &nmult, bool flagCell=true, bool flagAddSampleRank=true)

static DbGrid *	createFromGridExtend (const DbGrid &gridIn, const VectorString &tops, const VectorString &bots, const 1 &nxnew, bool verbose=false, double eps=EPSILON3)

static DbGrid *	createFromGridShrink (const DbGrid &gridIn, const 1 &deletedRanks)

static DbGrid *	createGrid2D (const ELoadBy &order, Id nx, Id ny, double x0=0., double y0=0., double dx=1., double dy=1., double angle=0., bool flagAddSampleRank=true, const 1 &tab=1())

static DbGrid *	createSqueezeAndStretchForward (const DbGrid grid3Din, const DbGrid surf2D, const String &nameTop, const String &nameBot, const VectorString &names, Id nzout, double thickmin=0.)

static DbGrid *	createSqueezeAndStretchBackward (const DbGrid grid3Din, const DbGrid surf2D, const String &nameTop, const String &nameBot, const VectorString &names, Id nzout, double z0out, double dzout)

static DbGrid *	createSubGrid (const DbGrid *gridin, 1 limits, bool flagAddCoordinates=false)

static DbGrid *	createMultiple (DbGrid *dbin, const 1 &nmult, bool flagAddSampleRank)

static DbGrid *	createDivider (DbGrid *dbin, const 1 &nmult, bool flagAddSampleRank)

static DbGrid *	createFillRandom (const 1 &nx, Id nvar=1, Id nfex=0, Id ncode=0, double varmax=0., double selRatio=0., const 1 &heteroRatio=1(), const 1 &means=1(), const 1 &x0=1(), Id seed=1367843)

static DbGrid *	createFromGrid (const Grid &grid)
	Create an empty DbGrid structure from the characteristics of a Grid.

Static Public Member Functions inherited from gstlrn::Db
static Db *	create ()

static Db *	createFromNF (const String &NFFilename, bool verbose=true)

static Db *	createFromSamples (Id nech, const ELoadBy &order=ELoadBy::fromKey("SAMPLE"), const 1 &tab=1(), const VectorString &names=VectorString(), const VectorString &locatorNames=VectorString(), bool flagAddSampleRank=true)

static Db *	createFromCSV (const String &filename, const CSVformat &csv=CSVformat(), bool verbose=false, Id ncol_max=-1, Id nrow_max=-1, bool flagAddSampleRank=true)

static Db *	createFromBox (Id nech, const 1 &coormin, const 1 &coormax, Id seed=43241, bool flag_exact=true, bool flag_repulsion=false, double range=0., double beta=0., double extend=0., bool flagAddSampleRank=true)

static Db *	createFromOnePoint (const 1 &tab=1(), bool flagAddSampleRank=true)

static Db *	createSamplingDb (const Db *dbin, double proportion=0., Id number=0, const VectorString &names=VectorString(), Id seed=23241, bool verbose=false, bool flagAddSampleRank=true)

static Db *	createFromDbGrid (Id nech, DbGrid *dbgrid, Id seed=432423, bool flag_exact=true, bool flag_repulsion=false, double range=0., double beta=0., bool flagAddSampleRank=true)

static Db *	createReduce (const Db *dbin, const VectorString &names=VectorString(), const 1 &ranks=1(), bool verbose=false)

static Db *	createFillRandom (Id ndat, Id ndim=2, Id nvar=1, Id nfex=0, Id ncode=0, double varmax=0., double selRatio=0., const 1 &heteroRatio=1(), const 1 &coormin=1(), const 1 &coormax=1(), Id seed=124234, bool flagAddSampleRank=true)

static Db *	createEmpty (Id ndat, Id ndim=2, Id nvar=1, Id nfex=0, Id ncode=0, bool flagVerr=false, bool flagSel=false, bool flagAddSampleRank=true)

static Db *	createFromGridRandomized (DbGrid *dbgrid, double randperc=0., bool flagAddSampleRank=true)

static Id	getNEloc ()

static	getMultipleSelectedRanks (const 1 &index, const 1 &ivars=1(), const 1 &nbgh=1())
	Return the vector of the ranks within 'index' of data beloging:

static	getMultipleSelectedVariables (const 1 &index, const 1 &ivars=1(), const 1 &nbgh=1())

static Id	getSimRank (Id isimu, Id ivar, Id icase, Id nbsimu, Id nvar)

static const Db *	coverSeveralDbs (const Db db1, const Db db2, bool *isBuilt)

Static Public Member Functions inherited from gstlrn::ASerializable
static String	buildFileName (Id status, const String &filename, bool ensureDirExist=false)

static String	getFileIdentity (const String &filename, bool verbose=false)

static void	setPrefixName (const String &prefixName)

static void	unsetPrefixName ()

static const String &	getPrefixName ()

Additional Inherited Members
Public Attributes inherited from gstlrn::Db
	DECLARE_TOTL
	Has a specific implementation in the Target language.

Constructor & Destructor Documentation

◆ DbGrid() [1/2]

gstlrn::DbGrid::DbGrid ( )

◆ DbGrid() [2/2]

gstlrn::DbGrid::DbGrid ( const DbGrid & r )

◆ ~DbGrid()

gstlrn::DbGrid::~DbGrid ( )

virtual

Member Function Documentation

◆ addSelectionFromDbByMorpho()

Id gstlrn::DbGrid::addSelectionFromDbByMorpho	(	Db *	db,
		Id	nmin = `0`,
		Id	radius = `0`,
		Id	option = `0`,
		const 1 &	dilation = `1()`,
		bool	verbose = `false`,
		const NamingConvention &	namconv = `NamingConvention("Morpho", false, false, true, ELoc::fromKey("SEL"))`
	)

Create a selection based on the count of active samples of 'db'

Parameters

db	Db used for statistics
nmin	Minimum number of samples
radius	Radius of the cell neighborhood used when counting the samples
option	Type of structuring element: 0 for Cross and 1 for Block
dilation	Vector giving the radius extension for Dilation operation
verbose	Verbose flag
namconv	Naming convention

Returns

◆ assignGridColumn()

Id gstlrn::DbGrid::assignGridColumn	(	const String &	name,
		Id	idim,
		Id	rank,
		double	value,
		bool	useSel = `false`
	)

Set all elements of a column (1-D) along a given space dimension to a constant value

Parameters

name	Name of the target variable
idim	Rank of the Space dimension
rank	Rank of the target Column
value	Assigned value
useSel	Use the selection

◆ centerCoordinateInPlace()

Id gstlrn::DbGrid::centerCoordinateInPlace	(	1 &	coor,
		bool	centered = `false`,
		bool	stopIfOut = `false`,
		double	eps = `EPSILON6`
	)		const

◆ clean3DFromSurfaces()

void gstlrn::DbGrid::clean3DFromSurfaces	(	const VectorString &	names,
		const DbGrid *	surf2D,
		const String &	nameTop = `String()`,
		const String &	nameBot = `String()`,
		bool	verbose = `false`
	)

Clean the contents of a 3D file by using surfaces extracted from the 2D file

Parameters

names	Vector of variable of the current grid which must be processed
surf2D	Name of the 2-D grid file containing the surfaces
nameTop	Name of the Top surface (optional)
nameBot	Name of the Bottom surface (optional)
verbose	Verbose flag

Remarks: The input file 'surf2D' and the current grid should match (in 2-D)

◆ coarsify()

DbGrid * gstlrn::DbGrid::coarsify ( const 1 & nmult )

◆ coordinateToIndices()

gstlrn::DbGrid::coordinateToIndices	(	const 1 &	coor,
		bool	centered = `false`,
		double	eps = `EPSILON6`
	)		const

◆ coordinateToIndicesInPlace()

Id gstlrn::DbGrid::coordinateToIndicesInPlace	(	const 1 &	coor,
		1 &	indices,
		bool	centered = `false`,
		double	eps = `EPSILON6`
	)		const

◆ coordinateToRank()

Id gstlrn::DbGrid::coordinateToRank	(	const 1 &	coor,
		bool	centered = `false`,
		double	eps = `EPSILON6`
	)		const

◆ create()

DbGrid * gstlrn::DbGrid::create	(	const 1 &	nx,
		const 1 &	dx = `1()`,
		const 1 &	x0 = `1()`,
		const 1 &	angles = `1()`,
		const ELoadBy &	order = `ELoadBy::fromKey("SAMPLE")`,
		const 1 &	tab = `1()`,
		const VectorString &	names = `VectorString()`,
		const VectorString &	locatorNames = `VectorString()`,
		bool	flagAddSampleRank = `true`,
		bool	flagAddCoordinates = `true`
	)

static

◆ createCoarse()

DbGrid * gstlrn::DbGrid::createCoarse	(	DbGrid *	dbin,
		const 1 &	nmult,
		bool	flagCell = `true`,
		bool	flagAddSampleRank = `true`
	)

static

◆ createCoveringDb()

DbGrid * gstlrn::DbGrid::createCoveringDb	(	const Db *	dbin,
		const 1 &	nx = `1()`,
		const 1 &	dx = `1()`,
		const 1 &	x0 = `1()`,
		const 1 &	margin = `1()`
	)

static

◆ createDivider()

DbGrid * gstlrn::DbGrid::createDivider	(	DbGrid *	dbin,
		const 1 &	nmult,
		bool	flagAddSampleRank
	)

static

Create a Grid Db as a divider of another Grid Db

Returns: Pointer to the newly created Db grid structure

Parameters

[in]	dbin	Initial Db Grid
[in]	nmult	Array of subdivision coefficients
[in]	flagAddSampleRank	true to add the 'rank' as first column

◆ createFillRandom()

DbGrid * gstlrn::DbGrid::createFillRandom	(	const 1 &	nx,
		Id	nvar = `1`,
		Id	nfex = `0`,
		Id	ncode = `0`,
		double	varmax = `0.`,
		double	selRatio = `0.`,
		const 1 &	heteroRatio = `1()`,
		const 1 &	means = `1()`,
		const 1 &	x0 = `1()`,
		Id	seed = `1367843`
	)

static

Creating a new Db loaded with random values

Parameters

nx	Vector of mesh indices
nvar	Number of variables
nfex	Number of external drift functions
ncode	Number of codes (no code when 0)
varmax	Maximum value for the measurement error
selRatio	Percentage of samples that must be masked off (between 0 and 1)
heteroRatio	Vector of proportions of NA to be generated per variable
means	Vector of means per variable (optional)
x0	Vector of coordinates of the origin of the grid (optional)
seed	Value for the Random Generator seed

Returns: A pointer to the newly created DbGrid

Remarks: The generated grid lies within a [0,1] hypercube. The variance of measurement error is created only if 'varmax' is positive. Then a field is created for each variable. this field is filled with random values uniformly generated in [0, varmax] The external drift values are generated according to Normal distribution.

◆ createFromGrid()

DbGrid * gstlrn::DbGrid::createFromGrid ( const Grid & grid )

static

Create an empty DbGrid structure from the characteristics of a Grid.

Parameters

grid	Grid structure containing the grid architecture definition

Returns: DbGrid* A Pointer to the newly created data base

◆ createFromGridExtend()

DbGrid * gstlrn::DbGrid::createFromGridExtend	(	const DbGrid &	gridIn,
		const VectorString &	tops,
		const VectorString &	bots,
		const 1 &	nxnew,
		bool	verbose = `false`,
		double	eps = `EPSILON3`
	)

static

Create a new Grid, starting from an initial Grid, and extending its space dimensions A set of Top and Bottom variables is provided which serve in designing the Top and Bottom of the new coordinates.

Parameters

gridIn	Initial
tops	Vector of Variable names which define the Tops
bots	Vector of Variable names which define the Bottoms
nxnew	Vector giving the number of meshes for each additional space dimension
verbose	Verbose flag
eps	Each new coordinate is calculated from the top to bottom extension inflated by eps

Returns

◆ createFromGridShrink()

DbGrid * gstlrn::DbGrid::createFromGridShrink	(	const DbGrid &	gridIn,
		const 1 &	deletedRanks
	)

static

Create a new grid, from an Initial Grid, by suppressing a set of space dimensions

Parameters

gridIn	Initial grid
deletedRanks	Vector of indices of space dimensions to be suppressed

Returns

◆ createFromNF()

DbGrid * gstlrn::DbGrid::createFromNF	(	const String &	NFFilename,
		bool	verbose = `true`
	)

static

Create a Db by loading the contents of a Neutral File

Parameters

NFFilename	Name of the Neutral File (Db format)
verbose	Verbose

Remarks: The name does not need to be completed in particular when defined by absolute path; or read from the Data Directory (in the gstlearn distribution)

◆ createFromPolygon()

DbGrid * gstlrn::DbGrid::createFromPolygon	(	Polygons *	polygon,
		const 1 &	nodes,
		const 1 &	dcell,
		bool	flagAddSampleRank = `true`
	)

static

◆ createGrid2D()

DbGrid * gstlrn::DbGrid::createGrid2D	(	const ELoadBy &	order,
		Id	nx,
		Id	ny,
		double	x0 = `0.`,
		double	y0 = `0.`,
		double	dx = `1.`,
		double	dy = `1.`,
		double	angle = `0.`,
		bool	flagAddSampleRank = `true`,
		const 1 &	tab = `1()`
	)

static

Create a 2-D Db structure

Returns: Pointer to the newly created 2-D Db grid structure

Parameters

[in]	order	Manner in which values in tab are ordered (ELoadBy)
[in]	flagAddSampleRank	true to add 'rank' as a supplementary field
[in]	nx	Number of grid nodes along X
[in]	ny	Number of grid nodes along Y
[in]	x0	Grid origin along X
[in]	y0	Grid origin along Y
[in]	dx	Grid mesh along X
[in]	dy	Grid mesh along Y
[in]	angle	Rotation angle
[in]	tab	Array containing the data

◆ createMultiple()

DbGrid * gstlrn::DbGrid::createMultiple	(	DbGrid *	dbin,
		const 1 &	nmult,
		bool	flagAddSampleRank
	)

static

Create a Grid Db as a multiple of another Grid Db

Returns: Pointer to the newly created Db grid structure

Parameters

[in]	dbin	Initial Db Grid
[in]	nmult	Array of multiplicity coefficients
[in]	flagAddSampleRank	true to add the 'rank' as first column **

◆ createRefine()

DbGrid * gstlrn::DbGrid::createRefine	(	DbGrid *	dbin,
		const 1 &	nmult,
		bool	flagCell = `true`,
		bool	flagAddSampleRank = `true`
	)

static

◆ createSqueezeAndStretchBackward()

DbGrid * gstlrn::DbGrid::createSqueezeAndStretchBackward	(	const DbGrid *	grid3Din,
		const DbGrid *	surf2D,
		const String &	nameTop,
		const String &	nameBot,
		const VectorString &	names,
		Id	nzout,
		double	z0out,
		double	dzout
	)

static

Creating a 3D grid by squeeze-and-stretch backwards, i.e. from sugar box to structural, from:

a 3D grid containing the relevant information

a 2D grid containing the top and bottom information

Parameters

grid3Din	3D input grid
surf2D	2D grid of surfaces
nameTop	Name of the variable in 'surf2D' containing the top information
nameBot	Name of the variable in 'surf2D' containing the bottom information
names	Vector of names in 'grid3D' to be exported in output 3D grid
nzout,z0out,dzout	Specification along third dimension of the output 3D Grid

Returns: The output 3D grid (or nullptr in case of error)

Remarks: :

the grid files 'surf2D' and 'grid3Din' should match (in 2-D)
the grid 'surf2D' contains the top and bottom (identified by the corresponding locators)
the grid 'surf2D' contains a selection which designates the only pixels where 'top' and 'bot' are defined and correctly ordered (o save time)

◆ createSqueezeAndStretchForward()

DbGrid * gstlrn::DbGrid::createSqueezeAndStretchForward	(	const DbGrid *	grid3Din,
		const DbGrid *	surf2D,
		const String &	nameTop,
		const String &	nameBot,
		const VectorString &	names,
		Id	nzout,
		double	thickmin = `0.`
	)

static

Creating a 3D grid by squeeze-and-stretch forwards, i.e. from structural to sugar box, from:

a 3D grid containing the relevant information

a 2D grid containing the top and bottom information

Parameters

grid3Din	3D input grid
surf2D	2D grid of surfaces
nameTop	Name of the variable in 'surf2D' containing the top information
nameBot	Name of the variable in 'surf2D' containing the bottom information
names	Vector of names in 'grid3D' to be exported in output 3D grid
nzout	Number of Vertical meshes in the output 3D grid
thickmin	The algorithm is not applied if

Returns: The output 3D grid (or nullptr in case of error)

Remarks: :

the grid files 'surf2D' and 'grid3Din' should match (in 2-D)
the grid 'surf2D' contains the top and bottom (identified by the corresponding locators)
the grid 'surf2D' contains a selection which designates the only pixels where 'top' and 'bot' are defined and correctly ordered (o save time)

◆ createSubGrid()

DbGrid * gstlrn::DbGrid::createSubGrid	(	const DbGrid *	gridIn,
		1	limits,
		bool	flagAddCoordinates = `false`
	)

static

Create the sub-grid, extracted from 'gridIn' and reduced to the vector of limits

Parameters

gridIn	Input grid
limits	A vector of Min and Max per space dimension (Dimension: [ndim][2])
flagAddCoordinates	True if the grid coordinates must be included in the output file

Returns

◆ generateCoordinates()

void gstlrn::DbGrid::generateCoordinates ( const String & radix = "x" )

◆ getAllCellsEdges()

gstlrn::DbGrid::getAllCellsEdges ( bool forceGridMesh = false ) const

◆ getAngle()

double gstlrn::DbGrid::getAngle ( Id idim ) const

inline

◆ getAngles()

gstlrn::DbGrid::getAngles ( ) const

inline

◆ getBlockExtensions()

gstlrn::DbGrid::getBlockExtensions ( Id node ) const

◆ getCellEdges()

gstlrn::DbGrid::getCellEdges	(	Id	node = `0`,
		bool	forceGridMesh = `false`
	)		const

Return the VectorVectorDouble containing the borders of a cell

Parameters

node	Target cell
forceGridMesh	When TRUE, returns the edges of the standard grid mesh even if a variable block extension is defined

Returns

◆ getCellSize()

double gstlrn::DbGrid::getCellSize ( ) const

inline

◆ getCenterIndices()

gstlrn::DbGrid::getCenterIndices ( bool flagSup = false ) const

inline

◆ getCodir()

gstlrn::DbGrid::getCodir ( const 1 & grincr ) const

◆ getColumnSubGrid()

gstlrn::DbGrid::getColumnSubGrid	(	const String &	name,
		Id	idim0,
		Id	rank,
		bool	useSel = `false`
	)

◆ getCoordinate()

double gstlrn::DbGrid::getCoordinate	(	Id	iech,
		Id	idim,
		bool	flag_rotate = `true`
	)		const

overridevirtual

Return the coordinate of a sample along one Space Dimension

Parameters

iech	Rank of the sample
idim	Rank of the Space Dimension
flag_rotate	Use the rotation (only for Grid)

Returns

Reimplemented from gstlrn::Db.

◆ getCoordinateFromCorner()

gstlrn::DbGrid::getCoordinateFromCorner ( const 1 & icorner ) const

inline

◆ getCoordinateFromCornerInPlace()

void gstlrn::DbGrid::getCoordinateFromCornerInPlace	(	1 &	coor,
		const 1 &	icorner
	)		const

inline

◆ getCoordinatesByIndice()

gstlrn::DbGrid::getCoordinatesByIndice	(	const 1 &	indice,
		bool	flag_rotate = `true`,
		const 1 &	shift = `1()`,
		const 1 &	dxsPerCell = `1()`
	)		const

inline

◆ getCoordinatesByIndiceInPlace()

void gstlrn::DbGrid::getCoordinatesByIndiceInPlace	(	1 &	coor,
		const 1 &	indice,
		bool	flag_rotate = `true`,
		const 1 &	shift = `1()`,
		const 1 &	dxsPerCell = `1()`
	)		const

inline

◆ getCoordinatesInPlace()

void gstlrn::DbGrid::getCoordinatesInPlace	(	1 &	coor,
		Id	iech,
		bool	flag_rotate = `true`
	)		const

overridevirtual

Update the vector of coordinates (optimized manner) No check is done with respect to the dimension of the returned vector.

Parameters

coor	Returned vector of coordinates (should be dimensionned beforehand)
iech	Rank of the target
flag_rotate	True if Grid rotation must be taken into account

Reimplemented from gstlrn::Db.

◆ getCoordinatesPerSample()

gstlrn::DbGrid::getCoordinatesPerSample	(	Id	iech,
		bool	flag_rotate = `true`
	)		const

inline

◆ getCoordinatesPerSampleInPlace()

void gstlrn::DbGrid::getCoordinatesPerSampleInPlace	(	1 &	coor,
		Id	iech,
		bool	flag_rotate = `true`
	)		const

inline

◆ getDiscretizedBlock()

gstlrn::DbGrid::getDiscretizedBlock	(	const 1 &	ndiscs,
		Id	iech = `0`,
		bool	flagPerCell = `false`,
		bool	flagRandom = `false`,
		Id	seed = `132433`
	)		const

Generate a set of discretization locations, relative to the block center Dimension: number of discretization locations, space dimension

Parameters

ndiscs	Number of discretization (per space dimension)
iech	Rank of the target sample (used if flagPerCell = true)
flagPerCell	TRUE when the cell dimension are read from the Db (BLEX)
flagRandom	TRUE if the discretization location must be randomized
seed	Seed for random number generator

Returns

Remarks: : Although randomization can be performed, this process does not consume random numbers.

◆ getDistanceToOrigin()

gstlrn::DbGrid::getDistanceToOrigin	(	const 1 &	origin,
		const 1 &	radius = `1()`
	)

◆ getDX()

double gstlrn::DbGrid::getDX ( Id idim ) const

inline

◆ getDXs()

gstlrn::DbGrid::getDXs ( ) const

inline

◆ getExtend()

double gstlrn::DbGrid::getExtend ( Id idim ) const

inline

◆ getExtends()

gstlrn::DbGrid::getExtends ( ) const

inline

◆ getGrid()

const Grid & gstlrn::DbGrid::getGrid ( ) const

inline

◆ getGridAxis()

gstlrn::DbGrid::getGridAxis ( Id idim ) const

inline

◆ getGridEdges()

gstlrn::DbGrid::getGridEdges ( ) const

Return the VectorVectorDouble containing the borders of the grid

Returns

◆ getGridPileInPlace()

void gstlrn::DbGrid::getGridPileInPlace	(	Id	iuid,
		const 1 &	indg,
		Id	idim0,
		1 &	vec
	)		const

◆ getLimitsFromVariableExtend()

gstlrn::DbGrid::getLimitsFromVariableExtend	(	const String &	nameTop,
		const String &	nameBot,
		const 1 &	dimExclude = `1()`
	)		const

Returns the minimum and maximum indices of the subgrid where variables 'nameTop' and 'nameBot' are both defined

Parameters

nameTop	Name of the Top variable
nameBot	Name of the Bottom variable
dimExclude	Array giving excluding dimension (see details)

Returns: A vector of Min and Max per space dimension (Dimension: [ndim][2])

: When a dimension is 'excluded', the reduction of the output grid should not be applied to this dimension

◆ getMirrorIndex()

Id gstlrn::DbGrid::getMirrorIndex	(	Id	idim,
		Id	ix
	)		const

inline

◆ getNDim()

Id gstlrn::DbGrid::getNDim ( ) const

overridevirtual

Reimplemented from gstlrn::Db.

◆ getNTotal()

Id gstlrn::DbGrid::getNTotal ( ) const

inline

◆ getNX()

Id gstlrn::DbGrid::getNX ( Id idim ) const

inline

◆ getNXs()

gstlrn::DbGrid::getNXs ( ) const

inline

◆ getNXsExt()

gstlrn::DbGrid::getNXsExt ( Id ndimMax ) const

◆ getOneSlice()

gstlrn::DbGrid::getOneSlice	(	const String &	name,
		Id	posx = `0`,
		Id	posy = `1`,
		const 1 &	corner = `1()`,
		bool	useSel = `false`
	)		const

Returns the contents of one slice extracted from a DbGrid

Parameters

name	Name of the targte variable
posx	Rank of the first extracted coordinate (in [0, ndim[)
posy	Rank of the second extracted coordinate (in [0, ndim[)
corner	Vector giving a reference node that belongs to the extracted section
useSel	Use of the current Selection

Returns

Remarks: The argument 'corner' gives the indices of a node that belongs to the; extracted section. Obviously corner[posx] and corner[posy] are not used

◆ getOneSliceForCoordinate()

gstlrn::DbGrid::getOneSliceForCoordinate	(	Id	idim,
		Id	posx = `0`,
		Id	posy = `1`,
		const 1 &	corner = `1()`,
		bool	useSel = `false`
	)		const

Returns the contents of one slice extracted from a DbGrid

Parameters

idim	Rank of the target coordinate
posx	Rank of the first extracted coordinate (in [0, ndim[)
posy	Rank of the second extracted coordinate (in [0, ndim[)
corner	Vector giving a reference node that belongs to the extracted section
useSel	Use of the current Selection

Returns

Remarks: If idim does not match the Space dimension of the DbGrid, empty vector if returned; If the variable exists physically, this variable is read; Otherwise, the coordinate is generated on the fly; The argument 'corner' gives the indices of a node that belongs to the; extracted section. Obviously corner[posx] and corner[posy] are not used

◆ getRotMat()

gstlrn::DbGrid::getRotMat ( ) const

inline

◆ getSampleAsSTInPlace()

void gstlrn::DbGrid::getSampleAsSTInPlace	(	Id	iech,
		SpaceTarget &	P
	)		const

overridevirtual

Load a Space Target with all possible contents gathered from Db

Parameters

iech	Rank of the target sample
P	Space Target (used to store information)

Reimplemented from gstlrn::Db.

◆ getSlice()

gstlrn::DbGrid::getSlice	(	const String &	name,
		Id	pos = `0`,
		Id	indice = `0`,
		bool	useSel = `false`
	)		const

Extracts a slice from a 3-D Grid

Parameters

name	Name of the target variable
pos	Type of section: 0 for YoZ; 1 for XoZ and 2 for XoY
indice	Rank of the section
useSel	Use the active selection

Returns: A VectorVectorDouble with 4 columns, i.e: X, Y, Z, Var

Remarks: In presence of a selection and if useSel is TRUE,; values are returned but set to TEST

◆ getUnit()

double gstlrn::DbGrid::getUnit ( Id idim = 0 ) const

overridevirtual

Return a Unit calculated for a Db (in a given Space dimension)

Parameters

idim	Rank of the Space dimension

Returns

Remarks: This unit is defined as 1/1000 of the extension in the given space dimension

Reimplemented from gstlrn::Db.

◆ getVolume()

double gstlrn::DbGrid::getVolume ( ) const

inline

◆ getX0()

double gstlrn::DbGrid::getX0 ( Id idim ) const

inline

◆ getX0s()

gstlrn::DbGrid::getX0s ( ) const

inline

◆ gridCopyParams()

void gstlrn::DbGrid::gridCopyParams	(	Id	mode,
		const Grid &	gridaux
	)

◆ gridDefine()

Id gstlrn::DbGrid::gridDefine	(	const 1 &	nx,
		const 1 &	dx = `1()`,
		const 1 &	x0 = `1()`,
		const 1 &	angles = `1()`
	)

◆ hasSingleBlock()

bool gstlrn::DbGrid::hasSingleBlock ( ) const

◆ indicesToCoordinate()

gstlrn::DbGrid::indicesToCoordinate	(	const 1 &	indice,
		const 1 &	percent = `1()`
	)		const

inline

◆ indicesToCoordinateInPlace()

void gstlrn::DbGrid::indicesToCoordinateInPlace	(	const 1 &	indice,
		1 &	coor,
		const 1 &	percent = `1()`
	)		const

inline

◆ indiceToRank()

Id gstlrn::DbGrid::indiceToRank ( const 1 & indice ) const

inline

◆ initThread()

void gstlrn::DbGrid::initThread ( ) const

overridevirtual

Reimplemented from gstlrn::Db.

◆ isConsistent()

bool gstlrn::DbGrid::isConsistent ( ) const

overridevirtual

Reimplemented from gstlrn::Db.

Reimplemented in gstlrn::DbMeshTurbo.

◆ isGrid()

bool gstlrn::DbGrid::isGrid ( ) const

inlineoverridevirtual

Db Interface.

Reimplemented from gstlrn::Db.

◆ isGridRotated()

bool gstlrn::DbGrid::isGridRotated ( ) const

◆ isSameGrid()

bool gstlrn::DbGrid::isSameGrid ( const Grid & grid ) const

◆ isSameGridMesh()

bool gstlrn::DbGrid::isSameGridMesh ( const DbGrid & dbaux ) const

◆ isSameGridRotation()

bool gstlrn::DbGrid::isSameGridRotation ( const DbGrid & dbaux ) const

◆ locateDataInGrid()

gstlrn::DbGrid::locateDataInGrid	(	const Db *	data,
		const 1 &	rankIn = `1()`,
		bool	centered = `false`,
		bool	useSel = `false`
	)		const

◆ mayChangeSampleNumber()

bool gstlrn::DbGrid::mayChangeSampleNumber ( ) const

inlineoverridevirtual

Reimplemented from gstlrn::Db.

Reimplemented in gstlrn::DbMeshTurbo.

◆ migrateAllVariables()

bool gstlrn::DbGrid::migrateAllVariables	(	Db *	dbin,
		bool	flag_fill = `true`,
		bool	flag_inter = `true`,
		bool	flag_ball = `false`,
		bool	flagAddSampleRank = `true`
	)

Migrate all the variables (Z_locator) from 'dbin' on the nodes of 'this' (grid)

Parameters

dbin	Input Db
flagAddSampleRank	true if the rank of the samples must be aaded
flag_fill	Filling option
flag_inter	Interpolation
flag_ball	Use BallTree sorting algorithm when available

Returns

◆ morpho()

Id gstlrn::DbGrid::morpho	(	const EMorpho &	oper,
		double	vmin = `0.5`,
		double	vmax = `1.5`,
		Id	option = `0`,
		const 1 &	radius = `1()`,
		bool	flagDistErode = `false`,
		bool	verbose = `false`,
		const NamingConvention &	namconv = `NamingConvention("Morpho")`
	)

◆ operator=()

DbGrid & gstlrn::DbGrid::operator= ( const DbGrid & r )

◆ rankToCoordinates()

gstlrn::DbGrid::rankToCoordinates	(	Id	rank,
		const 1 &	percent = `1()`
	)		const

inline

◆ rankToCoordinatesInPlace()

void gstlrn::DbGrid::rankToCoordinatesInPlace	(	Id	rank,
		1 &	coor,
		const 1 &	percent = `1()`
	)		const

inline

◆ rankToIndice()

void gstlrn::DbGrid::rankToIndice	(	Id	node,
		1 &	indices,
		bool	minusOne = `false`
	)		const

inline

◆ refine()

DbGrid * gstlrn::DbGrid::refine ( const 1 & nmult )

◆ reset()

Id gstlrn::DbGrid::reset	(	const 1 &	nx,
		const 1 &	dx = `1()`,
		const 1 &	x0 = `1()`,
		const 1 &	angles = `1()`,
		const ELoadBy &	order = `ELoadBy::fromKey("SAMPLE")`,
		const 1 &	tab = `1()`,
		const VectorString &	names = `VectorString()`,
		const VectorString &	locatorNames = `VectorString()`,
		bool	flagAddSampleRank = `true`,
		bool	flagAddCoordinates = `true`
	)

Creating a Db regular grid of any dimension

Parameters

nx	A vector of the number of grid meshes. The number of items in this argument gives the dimension of the space. (size = ndim)
dx	Vector cell meshes size in each direction (size = ndim) (by default, use 1)
x0	Vector of origin coordinates (size = ndim) (by default, use 0)
angles	Array giving the rotation angles (only for dimension 2 or 3). The first angle corresponds to the rotation around OZ axis, the second to a rotation around OY'and the third one around Ox. The dimension of this array cannot exceed the space dimension.
order	Flag for values order in 'tab' (defined ELoadBy.hpp)
tab	Variable values array (size = nvar * nsamples)
names	Names of the Variables of 'tab' (size = nvar)
locatorNames	Locators for each variable of array 'tab' (size = nvar)
flagAddSampleRank	If true, add an automatic rank variable
flagAddCoordinates	If TRUE, add the grid coordinates

◆ resetCoveringDb()

Id gstlrn::DbGrid::resetCoveringDb	(	const Db *	db,
		const 1 &	nx = `1()`,
		const 1 &	dx = `1()`,
		const 1 &	x0 = `1()`,
		const 1 &	margin = `1()`
	)

Creating a Grid Db which covers the extension of the input 'Db'

Parameters

db	Input Db from which the newly created Db is constructed
nx	Vector of the expected number of grid nodes (default = 10)
dx	Vector of the expected sizes for the grid meshes (in distance)
x0	Vector of the expected origin of the grid (in coordinate)
margin	Vector of the expected margins of the grid (in distance)

Remarks: Arguments 'nodes' and 'dcell' are disjunctive. If both defined, 'dcell' prevails

Load the data

◆ resetDims()

void gstlrn::DbGrid::resetDims	(	Id	ncol,
		Id	nech
	)

overridevirtual

Set dimension

Parameters

ncol	Number of columns (= variables)
nech	Number of samples (ignore in case of Grid)

Reimplemented from gstlrn::Db.

◆ resetFromPolygon()

Id gstlrn::DbGrid::resetFromPolygon	(	Polygons *	polygon,
		const 1 &	nodes,
		const 1 &	dcell,
		bool	flagAddSampleRank = `true`
	)

Creating a regular grid Db which covers the input Polygon

Parameters

polygon	Pointer to the input Polygon
nodes	Vector of the expected number of nodes
dcell	Vector of the expected dimensions for the grid cells
flagAddSampleRank	true if the sample rank must be generated

Load the data

◆ sampleBelongsToCell()

bool gstlrn::DbGrid::sampleBelongsToCell	(	const 1 &	coor,
		Id	rank,
		const 1 &	dxsPerCell = `1()`
	)		const

inline

◆ setDX()

void gstlrn::DbGrid::setDX	(	Id	idim,
		double	value
	)

inline

◆ setGridPileInPlace()

void gstlrn::DbGrid::setGridPileInPlace	(	Id	iuid,
		const 1 &	indg,
		Id	idim0,
		const 1 &	vec
	)

◆ setNX()

void gstlrn::DbGrid::setNX	(	Id	idim,
		Id	value
	)

inline

◆ setRotation()

void gstlrn::DbGrid::setRotation ( const Rotation & rotation )

inline

◆ setSelectionFromVariableExtend()

Id gstlrn::DbGrid::setSelectionFromVariableExtend	(	const String &	nameTop,
		const String &	nameBot
	)

Defines a selection in the current grid where variables 'nameTop' and 'nameBot' are both defined and ordered properly

Parameters

nameTop	Name of the Top variable
nameBot	Name of the Bottom variable

: This method also adds a selection in the current grid which masks off the pixels where 'nameTop' and 'nameBot' are defined but not correctly ordered. This is the reason why this method cannot be 'const'

◆ setX0()

void gstlrn::DbGrid::setX0	(	Id	idim,
		double	value
	)

inline

◆ smooth()

Id gstlrn::DbGrid::smooth	(	ANeigh *	neigh,
		Id	type = `1`,
		double	range = `1.`,
		const NamingConvention &	namconv = `NamingConvention("Smooth")`
	)

◆ toString()

String gstlrn::DbGrid::toString ( const AStringFormat * strfmt = nullptr ) const

overridevirtual

ICloneable interface.

AStringable Interface

Reimplemented from gstlrn::Db.

Reimplemented in gstlrn::DbMeshTurbo.

The documentation for this class was generated from the following files:

include/Db/DbGrid.hpp
src/Db/DbGrid.cpp

Detailed Description

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ DbGrid() [1/2]

◆ DbGrid() [2/2]

◆ ~DbGrid()

Member Function Documentation

◆ addSelectionFromDbByMorpho()

◆ assignGridColumn()

◆ centerCoordinateInPlace()

◆ clean3DFromSurfaces()

◆ coarsify()

◆ coordinateToIndices()

◆ coordinateToIndicesInPlace()

◆ coordinateToRank()

◆ create()

◆ createCoarse()

◆ createCoveringDb()

◆ createDivider()

◆ createFillRandom()

◆ createFromGrid()

◆ createFromGridExtend()

◆ createFromGridShrink()

◆ createFromNF()

◆ createFromPolygon()

◆ createGrid2D()

◆ createMultiple()

◆ createRefine()

◆ createSqueezeAndStretchBackward()

◆ createSqueezeAndStretchForward()

◆ createSubGrid()

◆ generateCoordinates()

◆ getAllCellsEdges()

◆ getAngle()

◆ getAngles()

◆ getBlockExtensions()

◆ getCellEdges()

◆ getCellSize()

◆ getCenterIndices()

◆ getCodir()

◆ getColumnSubGrid()

◆ getCoordinate()

◆ getCoordinateFromCorner()

◆ getCoordinateFromCornerInPlace()

◆ getCoordinatesByIndice()

◆ getCoordinatesByIndiceInPlace()

◆ getCoordinatesInPlace()

◆ getCoordinatesPerSample()

◆ getCoordinatesPerSampleInPlace()

◆ getDiscretizedBlock()

◆ getDistanceToOrigin()

◆ getDX()

◆ getDXs()

◆ getExtend()

◆ getExtends()

◆ getGrid()

◆ getGridAxis()

◆ getGridEdges()

◆ getGridPileInPlace()

◆ getLimitsFromVariableExtend()

◆ getMirrorIndex()

◆ getNDim()

◆ getNTotal()

◆ getNX()

◆ getNXs()

◆ getNXsExt()

◆ getOneSlice()

◆ getOneSliceForCoordinate()

◆ getRotMat()

◆ getSampleAsSTInPlace()

◆ getSlice()

◆ getUnit()

◆ getVolume()

◆ getX0()

◆ getX0s()

◆ gridCopyParams()

◆ gridDefine()

◆ hasSingleBlock()
