gstlrn::NeighMoving Class Reference

Moving Neighborhood definition. More...

#include <NeighMoving.hpp>

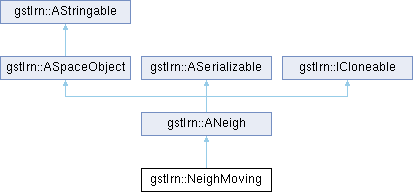

Inheritance diagram for gstlrn::NeighMoving:

Detailed Description

Moving Neighborhood definition.

The Neighborhood is usually meant to select a sub-population from the input Data Base, containing the active samples close to the target.

The Moving Neighborhood selects these active samples based on a series of criteria (the corresponding parameters are given between parentheses), such as:

• the selected samples should belong to a circle (ellipse) centered on the target sample (circle radius, ellipse orientation and extensions)
• the minimum and maximum number of selected samples
• the previous circle can be subdivided into angular sectors: the selected samples are taken regularly per sector (maximum number of samples per sector)

The neighborhood also offers the possibility to suppress any sample which would be too close to (or coincide with) the target: this is the cross-validation option.

Public Member Functions
	NeighMoving (bool flag_xvalid=false, Id nmaxi=1000, double radius=TEST, Id nmini=1, Id nsect=1, Id nsmax=ITEST, const 1 &coeffs=1(), const 1 &angles=1(), bool useBallTree=false, Id leaf_size=10, const ASpaceSharedPtr &space=ASpaceSharedPtr())
	NeighMoving (const NeighMoving &r)
NeighMoving &	operator= (const NeighMoving &r)
virtual	~NeighMoving ()
Id	attach (const Db *dbin, const Db *dbout=nullptr) override
	Interface for ANeigh.
void	getNeigh (Id iech_out, 1 &ranks) override
bool	hasChanged (Id iech_out) const override
	summary (Id iech_out) override
Id	getNSampleMax (const Db *db) const override
ENeigh	getType () const override
bool	getFlagContinuous () const override
String	toString (const AStringFormat *strfmt=nullptr) const override
	Interface for AStringable.
void	addBiTargetCheck (ABiTargetCheck *abpc)
bool	getFlagSector () const
Id	getNMaxi () const
Id	getNMini () const
Id	getNSect () const
Id	getNSMax () const
double	getDistCont () const
const BiTargetCheckDistance *	getBiPtDist () const
bool	getFlagAniso () const
bool	getFlagRotation () const
double	getRadius () const
const &	getAnisoRotMats () const
const &	getAnisoCoeffs () const
double	getAnisoCoeff (Id i) const
const std::vector< ABiTargetCheck * > &	getBipts () const
const ABiTargetCheck *	getBipts (Id rank) const
void	setNMaxi (Id nmaxi)
void	setNMini (Id nmini)
void	setNSect (Id nsect)
void	setNSMax (Id nsmax)
void	setDistCont (double distCont)
	getEllipsoid (const 1 &target, Id count=360) const
	getSectors (const 1 &target) const
	getZoomLimits (const 1 &target, double percent=20) const
Public Member Functions inherited from gstlrn::ANeigh
	ANeigh (const ASpaceSharedPtr &space=ASpaceSharedPtr())
	ANeigh (const ANeigh &r)
ANeigh &	operator= (const ANeigh &r)
virtual	~ANeigh ()
bool	isConsistent (const ASpace *space) const override
	ASpaceObject Interface.
void	displayDebug (1 &ranks) const
void	select (Id iech_out, 1 &ranks)
bool	isUnchanged () const
void	setIsChanged (bool status=false)
void	reset ()
bool	getFlagXvalid () const
bool	getFlagKFold () const
void	setFlagXvalid (bool flagXvalid)
void	setFlagKFold (bool flagKFold)
void	setFlagSimu (bool flagSimu)
void	setBallSearch (bool status, Id leaf_size=10)
void	attachBall ()
Public Member Functions inherited from gstlrn::ASpaceObject
	ASpaceObject (const ASpaceSharedPtr &space=ASpaceSharedPtr())
	ASpaceObject (const ASpaceObject &r)
ASpaceObject &	operator= (const ASpaceObject &r)
virtual	~ASpaceObject ()
ASpaceSharedPtr	getSpace () const
	Accessor to the current object space context.
bool	isConsistent () const
	Indicate if I am consistent with my current space context.
void	setSpace (ASpaceSharedPtr &&space)
	getUnitaryVector () const
	Return unitary vector for the current space context.
bool	isConsistent (const ASpaceSharedPtr &space) const
	Indicate if I am consistent with the provided space.
size_t	getNDim (Id ispace=-1) const
	Shortcuts to ASpace methods.
const &	getOrigin (Id ispace=-1) const
	Return the current space context origin coordinates.
double	getDistance (const SpacePoint &p1, const SpacePoint &p2, Id ispace=0) const
	Return the distance between two space points for the current space context.
	getDistances (const SpacePoint &p1, const SpacePoint &p2) const
	Return all the distances (space composits) between two space points for the current space context.
	getIncrement (const SpacePoint &p1, const SpacePoint &p2, Id ispace=0) const
	Return the increment vector between two space points for the current space context.
void	getIncrementInPlace (const SpacePoint &p1, const SpacePoint &p2, 1 &ptemp, Id ispace=-1) const
Public Member Functions inherited from gstlrn::AStringable
	AStringable ()
	AStringable (const AStringable &r)
AStringable &	operator= (const AStringable &r)
virtual	~AStringable ()
virtual void	display (const AStringFormat *strfmt=nullptr) const final
virtual void	display (Id level) const final
Public Member Functions inherited from gstlrn::ASerializable
	ASerializable ()
	ASerializable (const ASerializable &r)
ASerializable &	operator= (const ASerializable &r)
	ASerializable (ASerializable &&r) noexcept
ASerializable &	operator= (ASerializable &&r) noexcept
virtual	~ASerializable ()
bool	dumpToNF (const String &NFFilename, const EFormatNF &format=EFormatNF::fromKey("DEFAULT"), bool verbose=false) const
	Dump the contents of an object into an Output File using a given Output NF Format.
void	setDefaultFormatNF (const EFormatNF &format)
Public Member Functions inherited from gstlrn::ICloneable
	ICloneable ()
virtual	~ICloneable ()
virtual ICloneable *	clone () const =0
std::shared_ptr< ICloneable >	cloneShared () const
std::unique_ptr< ICloneable >	cloneUnique () const

Static Public Member Functions
static NeighMoving *	create (bool flag_xvalid=false, Id nmaxi=1000, double radius=TEST, Id nmini=1, Id nsect=1, Id nsmax=ITEST, const 1 &coeffs=1(), const 1 &angles=1(), bool useBallTree=false, Id leaf_size=10, const ASpaceSharedPtr &space=ASpaceSharedPtr())
static NeighMoving *	createFromNF (const String &NFFilename, bool verbose=true)
Static Public Member Functions inherited from gstlrn::ASerializable
static String	buildFileName (Id status, const String &filename, bool ensureDirExist=false)
static String	getFileIdentity (const String &filename, bool verbose=false)
static void	setPrefixName (const String &prefixName)
static void	unsetPrefixName ()
static const String &	getPrefixName ()

Constructor & Destructor Documentation

NeighMoving() [1/2]

gstlrn::NeighMoving::NeighMoving	(	bool	flag_xvalid = false,
		Id	nmaxi = 1000,
		double	radius = TEST,
		Id	nmini = 1,
		Id	nsect = 1,
		Id	nsmax = ITEST,
		const 1 &	coeffs = 1(),
		const 1 &	angles = 1(),
		bool	useBallTree = false,
		Id	leaf_size = 10,
		const ASpaceSharedPtr &	space = ASpaceSharedPtr()
	)

NeighMoving() [2/2]

gstlrn::NeighMoving::NeighMoving

(

const NeighMoving &

r

)

~NeighMoving()

gstlrn::NeighMoving::~NeighMoving ( )

virtual

Member Function Documentation

addBiTargetCheck()

void gstlrn::NeighMoving::addBiTargetCheck

(

ABiTargetCheck *

abpc

)

attach()

Id gstlrn::NeighMoving::attach ( const Db *  dbin, const Db *  dbout = nullptr  )

overridevirtual

Interface for ANeigh.

Initialize the neighborhood search

Parameters

[in]	dbin	input Db structure
[in]	dbout	output Db structure (optional)

Reimplemented from gstlrn::ANeigh.

create()

NeighMoving * gstlrn::NeighMoving::create ( bool  flag_xvalid = false, Id  nmaxi = 1000, double  radius = TEST, Id  nmini = 1, Id  nsect = 1, Id  nsmax = ITEST, const 1 &  coeffs = 1(), const 1 &  angles = 1(), bool  useBallTree = false, Id  leaf_size = 10, const ASpaceSharedPtr &  space = ASpaceSharedPtr()  )

static

createFromNF()

NeighMoving * gstlrn::NeighMoving::createFromNF ( const String &  NFFilename, bool  verbose = true  )

static

Create a NeighMovingborhood by loading the contents of a Neutral File

Parameters

NFFilename	Name of the Neutral File
verbose	Verbose flag

Returns

getAnisoCoeff()

double gstlrn::NeighMoving::getAnisoCoeff ( Id  i ) const

inline

getAnisoCoeffs()

const & gstlrn::NeighMoving::getAnisoCoeffs ( ) const

inline

getAnisoRotMats()

const & gstlrn::NeighMoving::getAnisoRotMats ( ) const

inline

getBiPtDist()

const BiTargetCheckDistance * gstlrn::NeighMoving::getBiPtDist ( ) const

inline

getBipts() [1/2]

const std::vector< ABiTargetCheck * > & gstlrn::NeighMoving::getBipts ( ) const

inline

getBipts() [2/2]

const ABiTargetCheck * gstlrn::NeighMoving::getBipts ( Id  rank ) const

inline

getDistCont()

double gstlrn::NeighMoving::getDistCont ( ) const

inline

getEllipsoid()

gstlrn::NeighMoving::getEllipsoid	(	const 1 &	target,
		Id	count = 360
	)		const

getFlagAniso()

bool gstlrn::NeighMoving::getFlagAniso ( ) const

inline

getFlagContinuous()

bool gstlrn::NeighMoving::getFlagContinuous ( ) const

inlineoverridevirtual

Reimplemented from gstlrn::ANeigh.

getFlagRotation()

bool gstlrn::NeighMoving::getFlagRotation ( ) const

inline

getFlagSector()

bool gstlrn::NeighMoving::getFlagSector

(

)

const

getNeigh()

void gstlrn::NeighMoving::getNeigh ( Id  iech_out, 1 &  ranks  )

overridevirtual

Select the neighborhood

Parameters

iech_out	Valid Rank of the sample in the output Db
ranks	Vector of sample ranks in neighborhood (empty when error)

Implements gstlrn::ANeigh.

getNMaxi()

Id gstlrn::NeighMoving::getNMaxi ( ) const

inline

getNMini()

Id gstlrn::NeighMoving::getNMini ( ) const

inline

getNSampleMax()

Id gstlrn::NeighMoving::getNSampleMax ( const Db *  db ) const

overridevirtual

Given a Db, returns the maximum number of samples per NeighMovingborhood

Parameters

db	Pointer to the target Db

Returns

Implements gstlrn::ANeigh.

getNSect()

Id gstlrn::NeighMoving::getNSect ( ) const

inline

getNSMax()

Id gstlrn::NeighMoving::getNSMax ( ) const

inline

getRadius()

double gstlrn::NeighMoving::getRadius ( ) const

inline

getSectors()

gstlrn::NeighMoving::getSectors

(

const 1 &

target

)

const

Generate the end-points of the sectors. By default, the extension is set to radius

Parameters

target

Coordinates of the Target

Returns

getType()

ENeigh gstlrn::NeighMoving::getType ( ) const

inlineoverridevirtual

Reimplemented from gstlrn::ANeigh.

getZoomLimits()

gstlrn::NeighMoving::getZoomLimits	(	const 1 &	target,
		double	percent = 20
	)		const

hasChanged()

bool gstlrn::NeighMoving::hasChanged ( Id  iech_out ) const

overridevirtual

Reimplemented from gstlrn::ANeigh.

operator=()

NeighMoving & gstlrn::NeighMoving::operator=

(

const NeighMoving &

r

)

setDistCont()

void gstlrn::NeighMoving::setDistCont ( double  distCont )

inline

setNMaxi()

void gstlrn::NeighMoving::setNMaxi ( Id  nmaxi )

inline

setNMini()

void gstlrn::NeighMoving::setNMini ( Id  nmini )

inline

setNSect()

void gstlrn::NeighMoving::setNSect ( Id  nsect )

inline

setNSMax()

void gstlrn::NeighMoving::setNSMax ( Id  nsmax )

inline

summary()

gstlrn::NeighMoving::summary ( Id  iech_out )

overridevirtual

Returns the main Neighborhood Parameters for a given target as a vector:

• 0 : Number of active samples
• 1 : Minimum distance
• 2 : Maximum distance
• 3 : Number of non-empty sectors
• 4 : Number of consecutive empty sectors

Parameters

[in]

iech_out

Valid Rank of the sample in the output Db

Reimplemented from gstlrn::ANeigh.

toString()

String gstlrn::NeighMoving::toString ( const AStringFormat *  strfmt = nullptr ) const

overridevirtual

Interface for AStringable.

Reimplemented from gstlrn::ASpaceObject.

---

The documentation for this class was generated from the following files:

• include/Neigh/NeighMoving.hpp
• src/Neigh/NeighMoving.cpp
