gstlrn::AMesh Class Reference

#include <AMesh.hpp>

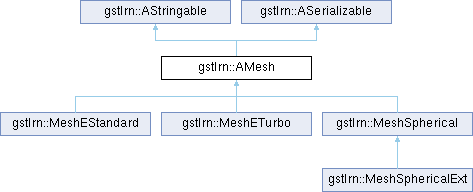

Inheritance diagram for gstlrn::AMesh:

Public Member Functions
	AMesh ()
	AMesh (const AMesh &m)
AMesh &	operator= (const AMesh &m)
virtual	~AMesh ()
String	toString (const AStringFormat *strfmt=nullptr) const override
	Interface to AStringable.
String	getNFName () const override
	ASerializable Interface.
virtual Id	getNApexPerMesh () const
	Interface for AMesh.
virtual Id	getNApices () const =0
virtual Id	getNMeshes () const =0
virtual Id	getApex (Id imesh, Id rank) const =0
virtual double	getCoor (Id imesh, Id rank, Id idim) const =0
virtual void	getCoordinatesPerMeshInPlace (Id imesh, Id rank, 1 &coords) const
virtual double	getApexCoor (Id i, Id idim) const =0
virtual void	getApexCoordinatesInPlace (Id i, 1 &coords) const
virtual double	getMeshSize (Id imesh) const =0
virtual void	resetProjFromDb (ProjMatrix *m, const Db *db, Id rankZ=-1, bool verbose=false) const
virtual Id	getVariety () const
virtual Id	getEmbeddedNDim () const
virtual void	getEmbeddedCoorPerMesh (Id imesh, Id ic, 1 &coords) const
virtual void	getEmbeddedCoorPerApex (Id iapex, 1 &coords) const
virtual void	getBarycenterInPlace (Id imesh, vect coord) const
ProjMatrix *	createProjMatrix (const Db *db, Id rankZ=-1, bool verbose=false) const
Id	getNDim () const
double	getExtendMin (Id idim) const
double	getExtendMax (Id idim) const
	getExtrema (Id idim) const
void	getElements (MatrixDense &apices, MatrixInt &meshes) const
Id	isCompatibleDb (const Db *db) const
	getMeshSizes () const
void	printMesh (Id imesh0=-1) const
void	printMeshes (Id level=0, Id nline_max=-1) const
	getCoordinatesPerApex (Id idim) const
	getMeshByApexPair (Id apex1, Id apex2) const
	getCoordinatesPerMesh (Id imesh, Id idim, bool flagClose=false) const
	getApexCoordinates (Id iapex) const
virtual	getMeshApicesFromCoordinates (const 1 &coords) const
virtual Id	getMeshFromCoordinates (const 1 &coords) const
virtual Id	getMeshAndInPlaceWeightsFromCoordinates (const 1 &coords, 1 &weights) const
	getCoordinatesPerMesh (Id imesh) const
	getEmbeddedCoordinatesPerMesh (Id imesh=0) const
void	getEmbeddedCoordinatesPerMeshInPlace (Id imesh, 1 &vec) const
	getEmbeddedCoordinatesPerApex () const
	getDistances (Id iapex0, const 1 &japices=1()) const
	getAllCoordinates () const
MatrixDense	getAllApices () const
MatrixInt	getAllMeshes () const
const MatrixSparse *	getAdjacentApicesMatrix () const
double	getCenterCoordinate (Id imesh, Id idim) const
	getAllCenterCoordinates () const
	getNeighborhoodPerMesh () const
	getNeighborhoodPerApex () const
virtual	getAdjacentApices (Id iapex) const
	getNRingsAdjacentApices (Id start_apex, Id n_rings) const
virtual void	buildAdjacencyMatrix () const
Public Member Functions inherited from gstlrn::AStringable
	AStringable ()
	AStringable (const AStringable &r)
AStringable &	operator= (const AStringable &r)
virtual	~AStringable ()
virtual void	display (const AStringFormat *strfmt=nullptr) const final
virtual void	display (Id level) const final
void	printConcreteClassName () const
Public Member Functions inherited from gstlrn::ASerializable
	ASerializable ()
	ASerializable (const ASerializable &r)=default
ASerializable &	operator= (const ASerializable &r)=default
	ASerializable (ASerializable &&r) noexcept=default
ASerializable &	operator= (ASerializable &&r) noexcept=default
virtual	~ASerializable ()=default
bool	dumpToNF (const String &NFFilename, const EFormatNF &format=EFormatNF::fromKey("DEFAULT")) const
	Dump the contents of an object into an Output File using a given Output NF Format.
void	setDefaultFormatNF (const EFormatNF &format)

Static Public Member Functions
static void	dumpNeighborhood (std::vector< 1 > &Vmesh, Id nline_max=1)
Static Public Member Functions inherited from gstlrn::ASerializable
static String	buildFileName (Id status, const String &filename, bool ensureDirExist=false)
static String	getFileIdentity (const String &filename, bool verbose=false)
static void	setPrefixName (const String &prefixName)
static void	unsetPrefixName ()
static const String &	getPrefixName ()

Constructor & Destructor Documentation

AMesh() [1/2]

gstlrn::AMesh::AMesh

(

)

AMesh() [2/2]

gstlrn::AMesh::AMesh

(

const AMesh &

m

)

~AMesh()

gstlrn::AMesh::~AMesh ( )

virtual

Member Function Documentation

buildAdjacencyMatrix()

void gstlrn::AMesh::buildAdjacencyMatrix ( ) const

virtual

createProjMatrix()

ProjMatrix * gstlrn::AMesh::createProjMatrix	(	const Db *	db,
		Id	rankZ = -1,
		bool	verbose = false
	)		const

Returns the Sparse Matrix for projecting the Mesh to a Db

dumpNeighborhood()

void gstlrn::AMesh::dumpNeighborhood ( std::vector< 1 > &  Vmesh, Id  nline_max = 1  )

static

getAdjacentApices()

gstlrn::AMesh::getAdjacentApices ( Id  iapex ) const

virtual

getAdjacentApicesMatrix()

const MatrixSparse * gstlrn::AMesh::getAdjacentApicesMatrix

(

)

const

getAllApices()

MatrixDense gstlrn::AMesh::getAllApices

(

)

const

Returns the information about all apices:

• the first dimension is the number of meshes (nrow)
• the second dimension if the space dimension (ncol)

  Returns

getAllCenterCoordinates()

gstlrn::AMesh::getAllCenterCoordinates

(

)

const

getAllCoordinates()

gstlrn::AMesh::getAllCoordinates

(

)

const

Returns the coordinates of all meshes:

• the first dimension if the space dimension
• the second dimension is the number of apices

  Returns

getAllMeshes()

MatrixInt gstlrn::AMesh::getAllMeshes

(

)

const

Returns the information of all meshes:

• the first dimension is the number of apices (nrow)
• the second dimension if the space dimension (ncol)

  Returns

getApex()

virtual Id gstlrn::AMesh::getApex ( Id  imesh, Id  rank  ) const

pure virtual

Returns the rank of apex 'rank' for mesh 'imesh'

Implemented in gstlrn::MeshEStandard, gstlrn::MeshETurbo, and gstlrn::MeshSpherical.

getApexCoor()

virtual double gstlrn::AMesh::getApexCoor ( Id  i, Id  idim  ) const

pure virtual

Returns coordinate 'idim' of apex 'i'

Implemented in gstlrn::MeshEStandard, gstlrn::MeshETurbo, and gstlrn::MeshSpherical.

getApexCoordinates()

gstlrn::AMesh::getApexCoordinates

(

Id

iapex

)

const

Returns the coordinates of an Apex

getApexCoordinatesInPlace()

void gstlrn::AMesh::getApexCoordinatesInPlace ( Id  i, 1 &  coords  ) const

virtual

Returns coordinates of apex 'i'

Reimplemented in gstlrn::MeshETurbo.

getBarycenterInPlace()

void gstlrn::AMesh::getBarycenterInPlace ( Id  imesh, vect  coord  ) const

virtual

Reimplemented in gstlrn::MeshSpherical.

getCenterCoordinate()

double gstlrn::AMesh::getCenterCoordinate	(	Id	imesh,
		Id	idim
	)		const

Returns the coordinates of the Center of Gravity of a Mesh

Parameters

imesh	Rank of the Mesh
idim	Index of the space dimension

Returns

getCoor()

virtual double gstlrn::AMesh::getCoor ( Id  imesh, Id  rank, Id  idim  ) const

pure virtual

Returns coordinate 'idim' of apex 'rank' of mesh 'imesh'

Implemented in gstlrn::MeshEStandard, gstlrn::MeshETurbo, and gstlrn::MeshSpherical.

getCoordinatesPerApex()

gstlrn::AMesh::getCoordinatesPerApex

(

Id

idim

)

const

Returns Vector of Apex coordinates for space index

getCoordinatesPerMesh() [1/2]

gstlrn::AMesh::getCoordinatesPerMesh

(

Id

imesh

)

const

getCoordinatesPerMesh() [2/2]

gstlrn::AMesh::getCoordinatesPerMesh	(	Id	imesh,
		Id	idim,
		bool	flagClose = false
	)		const

Returns the vector of coordinates for a mesh

getCoordinatesPerMeshInPlace()

void gstlrn::AMesh::getCoordinatesPerMeshInPlace ( Id  imesh, Id  rank, 1 &  coords  ) const

virtual

Returns coordinate 'idim' of apex 'rank' of mesh 'imesh'

Reimplemented in gstlrn::MeshETurbo.

getDistances()

gstlrn::AMesh::getDistances	(	Id	iapex0,
		const 1 &	japices = 1()
	)		const

getElements()

void gstlrn::AMesh::getElements	(	MatrixDense &	apices,
		MatrixInt &	meshes
	)		const

Returns the list of apexes and meshes

Extract the elements of the meshing

Parameters

[out]	apices	Pointer on the array of Apices
[out]	meshes	Pointer on the array of Meshes

getEmbeddedCoordinatesPerApex()

gstlrn::AMesh::getEmbeddedCoordinatesPerApex

(

)

const

Returns the coordinates of the Mesh apices expressed in the embedded space The returned vector is organized by coordinate

Returns

getEmbeddedCoordinatesPerMesh()

gstlrn::AMesh::getEmbeddedCoordinatesPerMesh

(

Id

imesh = 0

)

const

Returns the array of coordinates of all apices of any mesh in embedded space Its dimensions are: ncorner * ndim

Parameters

imesh

Mesh rank

Returns

getEmbeddedCoordinatesPerMeshInPlace()

void gstlrn::AMesh::getEmbeddedCoordinatesPerMeshInPlace	(	Id	imesh,
		1 &	vec
	)		const

Fill the array of coordinates of all apices of a mesh in embedded space Storage [ndim, ncorner]

Parameters

imesh	Mesh rank
vec	Returned array

getEmbeddedCoorPerApex()

void gstlrn::AMesh::getEmbeddedCoorPerApex ( Id  iapex, 1 &  coords  ) const

virtual

Fill the coordinates of an apex in embedded space

Parameters

iapex	Apex index
coords	Array of coordinates

Reimplemented in gstlrn::MeshSpherical.

getEmbeddedCoorPerMesh()

void gstlrn::AMesh::getEmbeddedCoorPerMesh ( Id  imesh, Id  ic, 1 &  coords  ) const

virtual

Fill the coordinates of a corner of a mesh in embedded space

Parameters

imesh	Mesh rank
ic	Corner index
coords	Array of coordinates

Reimplemented in gstlrn::MeshSpherical.

getEmbeddedNDim()

virtual Id gstlrn::AMesh::getEmbeddedNDim ( ) const

inlinevirtual

Reimplemented in gstlrn::MeshSpherical.

getExtendMax()

double gstlrn::AMesh::getExtendMax ( Id  idim ) const

inline

Returns the maximum of the Bounding box for a given space dimension

getExtendMin()

double gstlrn::AMesh::getExtendMin ( Id  idim ) const

inline

Returns the minimum of the Bounding box for a given space dimension

getExtrema()

gstlrn::AMesh::getExtrema

(

Id

idim

)

const

Returns the Vector of Extrema of the Bounding Box

getMeshAndInPlaceWeightsFromCoordinates()

Id gstlrn::AMesh::getMeshAndInPlaceWeightsFromCoordinates ( const 1 &  coords, 1 &  weights  ) const

virtual

Reimplemented in gstlrn::MeshETurbo.

getMeshApicesFromCoordinates()

gstlrn::AMesh::getMeshApicesFromCoordinates ( const 1 &  coords ) const

virtual

Returns the Mesh Apices from coordinates

Reimplemented in gstlrn::MeshETurbo.

getMeshByApexPair()

gstlrn::AMesh::getMeshByApexPair	(	Id	apex1,
		Id	apex2
	)		const

Returns the list of indices of Meshes sharing the same Apex

getMeshFromCoordinates()

Id gstlrn::AMesh::getMeshFromCoordinates ( const 1 &  coords ) const

virtual

Returns the Mesh from coordinates

Reimplemented in gstlrn::MeshETurbo.

getMeshSize()

virtual double gstlrn::AMesh::getMeshSize ( Id  imesh ) const

pure virtual

Returns the mesh size

Implemented in gstlrn::MeshEStandard, gstlrn::MeshETurbo, and gstlrn::MeshSpherical.

getMeshSizes()

gstlrn::AMesh::getMeshSizes

(

)

const

getNApexPerMesh()

virtual Id gstlrn::AMesh::getNApexPerMesh ( ) const

inlinevirtual

Interface for AMesh.

Returns the number of apex per mesh

getNApices()

virtual Id gstlrn::AMesh::getNApices ( ) const

pure virtual

Returns the number of apices

Implemented in gstlrn::MeshEStandard, gstlrn::MeshETurbo, and gstlrn::MeshSpherical.

getNDim()

Id gstlrn::AMesh::getNDim ( ) const

inline

Returns the space dimension

getNeighborhoodPerApex()

gstlrn::AMesh::getNeighborhoodPerApex

(

)

const

Returns the list of neighboring apices This is a complex structure which stands as a vector of vectors of integers

• the first dimension is the number of apices
• for each apex, the second vector gives the indices of the neighboring apices

  Returns

getNeighborhoodPerMesh()

gstlrn::AMesh::getNeighborhoodPerMesh

(

)

const

Returns the list of neighboring meshes This is a complex structure which stands as a vector of vectors of integers

• the first dimension is the number of apices
• for each apex, the second vector gives the indices of the neighboring meshes

  Returns

getNFName()

String gstlrn::AMesh::getNFName ( ) const

inlineoverridevirtual

ASerializable Interface.

Implements gstlrn::ASerializable.

Reimplemented in gstlrn::MeshEFaulted, gstlrn::MeshEStandard, gstlrn::MeshETurbo, and gstlrn::MeshSpherical.

getNMeshes()

virtual Id gstlrn::AMesh::getNMeshes ( ) const

pure virtual

Returns the number of meshes

Implemented in gstlrn::MeshEStandard, gstlrn::MeshETurbo, and gstlrn::MeshSpherical.

getNRingsAdjacentApices()

gstlrn::AMesh::getNRingsAdjacentApices	(	Id	start_apex,
		Id	n_rings
	)		const

getVariety()

virtual Id gstlrn::AMesh::getVariety ( ) const

inlinevirtual

Returns the space variety

Reimplemented in gstlrn::MeshSpherical.

isCompatibleDb()

Id gstlrn::AMesh::isCompatibleDb

(

const Db *

db

)

const

Checks that the Db is compatible with the Meshing

Returns

1 if Db and Meshing are incompatible; 0 otherwise

Parameters

[in]

db

Db structure

operator=()

AMesh & gstlrn::AMesh::operator=

(

const AMesh &

m

)

printMesh()

void gstlrn::AMesh::printMesh

(

Id

imesh0 = -1

)

const

Print the list of meshes and apices

printMeshes()

void gstlrn::AMesh::printMeshes	(	Id	level = 0,
		Id	nline_max = -1
	)		const

resetProjFromDb()

void gstlrn::AMesh::resetProjFromDb ( ProjMatrix *  m, const Db *  db, Id  rankZ = -1, bool  verbose = false  ) const

virtual

Initialize the Sparse Matrix for projecting the Db on a Mesh

Returns the Sparse Matrix used to project a Db onto the Meshing

Parameters

[out]	m	Projection matrix to be initialized
[in]	db	Db structure
[in]	rankZ	Rank of the Z-locator to be tested (see remarks)
[in]	verbose	Verbose flag

Remarks

If rankZ>=0, a sample is only considered if the value

of the corresponding variable is defined

Reimplemented in gstlrn::MeshETurbo.

toString()

String gstlrn::AMesh::toString ( const AStringFormat *  strfmt = nullptr ) const

overridevirtual

Interface to AStringable.

Reimplemented from gstlrn::AStringable.

Reimplemented in gstlrn::MeshEFaulted, gstlrn::MeshEStandard, gstlrn::MeshETurbo, and gstlrn::MeshSpherical.

---

The documentation for this class was generated from the following files:

• include/Mesh/AMesh.hpp
• src/Mesh/AMesh.cpp
