#include <MeshSpherical.hpp>

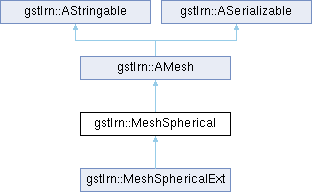

Inheritance diagram for gstlrn::MeshSpherical:

Detailed Description

Meshing defined in the Spherical Space

Public Member Functions
	MeshSpherical (const MatrixDense &apices=MatrixDense(), const MatrixInt &meshes=MatrixInt())

	MeshSpherical (const MeshSpherical &m)

MeshSpherical &	operator= (const MeshSpherical &m)

virtual	~MeshSpherical ()

String	toString (const AStringFormat *strfmt=nullptr) const override
	Interface to AStringable.

Id	getNApices () const override
	Interface to AMesh.

Id	getNMeshes () const override

double	getMeshSize (Id imesh) const override

Id	getApex (Id imesh, Id rank) const override

double	getCoor (Id imesh, Id rank, Id idim) const override

double	getApexCoor (Id i, Id idim) const override

Id	getEmbeddedNDim () const override

void	getEmbeddedCoorPerMesh (Id imesh, Id ic, 1 &coords) const override

void	getEmbeddedCoorPerApex (Id iapex, 1 &coords) const override

void	getBarycenterInPlace (Id imesh, vect coord) const override

Id	reset (Id ndim, Id napexpermesh, const 1 &apices, const 1 &meshes, bool byCol, bool verbose=false)

Id	getVariety () const override

const MatrixDense &	getApices () const

const MatrixInt &	getMeshes () const

	getMeshesAsVVI () const

Public Member Functions inherited from gstlrn::AMesh
	AMesh ()

	AMesh (const AMesh &m)

AMesh &	operator= (const AMesh &m)

virtual	~AMesh ()

virtual Id	getNApexPerMesh () const
	Interface for AMesh.

virtual void	getCoordinatesPerMeshInPlace (Id imesh, Id rank, 1 &coords) const

virtual void	getApexCoordinatesInPlace (Id i, 1 &coords) const

virtual void	resetProjFromDb (ProjMatrix m, const Db db, Id rankZ=-1, bool verbose=false) const

ProjMatrix *	createProjMatrix (const Db *db, Id rankZ=-1, bool verbose=false) const

Id	getNDim () const

double	getExtendMin (Id idim) const

double	getExtendMax (Id idim) const

	getExtrema (Id idim) const

void	getElements (MatrixDense &apices, MatrixInt &meshes) const

Id	isCompatibleDb (const Db *db) const

	getMeshSizes () const

void	printMesh (Id imesh0=-1) const

void	printMeshes (Id level=0, Id nline_max=-1) const

	getCoordinatesPerApex (Id idim) const

	getMeshByApexPair (Id apex1, Id apex2) const

	getCoordinatesPerMesh (Id imesh, Id idim, bool flagClose=false) const

	getApexCoordinates (Id iapex) const

	getCoordinatesPerMesh (Id imesh) const

	getEmbeddedCoordinatesPerMesh (Id imesh=0) const

void	getEmbeddedCoordinatesPerMeshInPlace (Id imesh, 1 &vec) const

	getEmbeddedCoordinatesPerApex () const

	getDistances (Id iapex0, const 1 &japices=1()) const

	getAllCoordinates () const

MatrixDense	getAllApices () const

MatrixInt	getAllMeshes () const

double	getCenterCoordinate (Id imesh, Id idim) const

	getAllCenterCoordinates () const

	getNeighborhoodPerMesh () const

	getNeighborhoodPerApex () const

Public Member Functions inherited from gstlrn::AStringable
	AStringable ()

	AStringable (const AStringable &r)

AStringable &	operator= (const AStringable &r)

virtual	~AStringable ()

virtual void	display (const AStringFormat *strfmt=nullptr) const final

virtual void	display (Id level) const final

Public Member Functions inherited from gstlrn::ASerializable
	ASerializable ()

	ASerializable (const ASerializable &r)

ASerializable &	operator= (const ASerializable &r)

	ASerializable (ASerializable &&r) noexcept

ASerializable &	operator= (ASerializable &&r) noexcept

virtual	~ASerializable ()

bool	dumpToNF (const String &NFFilename, const EFormatNF &format=EFormatNF::fromKey("DEFAULT"), bool verbose=false) const
	Dump the contents of an object into an Output File using a given Output NF Format.

void	setDefaultFormatNF (const EFormatNF &format)

Static Public Member Functions
static MeshSpherical *	createFromNF (const String &NFFilename, bool verbose=true)

static MeshSpherical *	create (const MatrixDense &apices=MatrixDense(), const MatrixInt &meshes=MatrixInt())

Static Public Member Functions inherited from gstlrn::AMesh
static void	dumpNeighborhood (std::vector< 1 > &Vmesh, Id nline_max=1)

Static Public Member Functions inherited from gstlrn::ASerializable
static String	buildFileName (Id status, const String &filename, bool ensureDirExist=false)

static String	getFileIdentity (const String &filename, bool verbose=false)

static void	setPrefixName (const String &prefixName)

static void	unsetPrefixName ()

static const String &	getPrefixName ()

Constructor & Destructor Documentation

◆ MeshSpherical() [1/2]

gstlrn::MeshSpherical::MeshSpherical	(	const MatrixDense &	apices = `MatrixDense()`,
		const MatrixInt &	meshes = `MatrixInt()`
	)

◆ MeshSpherical() [2/2]

gstlrn::MeshSpherical::MeshSpherical ( const MeshSpherical & m )

◆ ~MeshSpherical()

gstlrn::MeshSpherical::~MeshSpherical ( )

virtual

Member Function Documentation

◆ create()

MeshSpherical * gstlrn::MeshSpherical::create	(	const MatrixDense &	apices = `MatrixDense()`,
		const MatrixInt &	meshes = `MatrixInt()`
	)

static

◆ createFromNF()

MeshSpherical * gstlrn::MeshSpherical::createFromNF	(	const String &	NFFilename,
		bool	verbose = `true`
	)

static

Create a MeshSpherical by loading the contents of a Neutral File

Parameters

NFFilename	Name of the Neutral File (MeshEStandard format)
verbose	Verbose

◆ getApex()

Id gstlrn::MeshSpherical::getApex	(	Id	imesh,
		Id	rank
	)		const

overridevirtual

Returns the rank of the Apex 'rank' of the Mesh 'imesh'

Returns: The rank of the target apex

Parameters

[in]	imesh	Rank of the Mesh (from 0 to _nMeshes-1))
[in]	rank	Rank of the Apex within a Mesh (from 0 to _nApices-1)

Implements gstlrn::AMesh.

◆ getApexCoor()

double gstlrn::MeshSpherical::getApexCoor	(	Id	i,
		Id	idim
	)		const

overridevirtual

Returns coordinate 'idim' of apex 'i'

Implements gstlrn::AMesh.

◆ getApices()

const MatrixDense & gstlrn::MeshSpherical::getApices ( ) const

inline

◆ getBarycenterInPlace()

void gstlrn::MeshSpherical::getBarycenterInPlace	(	Id	imesh,
		vect	coord
	)		const

overridevirtual

Reimplemented from gstlrn::AMesh.

◆ getCoor()

double gstlrn::MeshSpherical::getCoor	(	Id	imesh,
		Id	rank,
		Id	idim
	)		const

overridevirtual

Returns the coordinate 'ic' of the Apex 'rank' of the Mesh 'imesh'

Returns: The coordinate of the target apex

Parameters

[in]	imesh	Rank of the Mesh (from 0 to _nMeshes-1))
[in]	rank	Rank of the Apex within a Mesh (from 0 to _nApices-1)
[in]	idim	Rank of the coordinate (from 0 to _ndimh-1)

Implements gstlrn::AMesh.

◆ getEmbeddedCoorPerApex()

void gstlrn::MeshSpherical::getEmbeddedCoorPerApex	(	Id	iapex,
		1 &	coords
	)		const

overridevirtual

Fill the coordinates of an apex in embedded space

Parameters

iapex	Apex index
coords	Array of coordinates

Reimplemented from gstlrn::AMesh.

◆ getEmbeddedCoorPerMesh()

void gstlrn::MeshSpherical::getEmbeddedCoorPerMesh	(	Id	imesh,
		Id	ic,
		1 &	coords
	)		const

overridevirtual

Fill the coordinates of a corner of a mesh in embedded space

Parameters

imesh	Mesh rank
ic	Corner index
coords	Array of coordinates

Reimplemented from gstlrn::AMesh.

◆ getEmbeddedNDim()

Id gstlrn::MeshSpherical::getEmbeddedNDim ( ) const

inlineoverridevirtual

Reimplemented from gstlrn::AMesh.

◆ getMeshes()

const MatrixInt & gstlrn::MeshSpherical::getMeshes ( ) const

inline

◆ getMeshesAsVVI()

gstlrn::MeshSpherical::getMeshesAsVVI ( ) const

inline

◆ getMeshSize()

double gstlrn::MeshSpherical::getMeshSize ( Id imesh ) const

overridevirtual

Returns the size of the Mesh 'imesh'

Returns: mesh dimension

Parameters

[in] imesh Rank of the Mesh (from 0 to _nMeshes-1))

Implements gstlrn::AMesh.

◆ getNApices()

Id gstlrn::MeshSpherical::getNApices ( ) const

overridevirtual

Interface to AMesh.

Returns the number of Apices

Returns: Number of apices

Implements gstlrn::AMesh.

◆ getNMeshes()

Id gstlrn::MeshSpherical::getNMeshes ( ) const

overridevirtual

Returns the number of Meshes

Returns: Number of meshes

Implements gstlrn::AMesh.

◆ getVariety()

Id gstlrn::MeshSpherical::getVariety ( ) const

inlineoverridevirtual

Returns the space variety

Reimplemented from gstlrn::AMesh.

◆ operator=()

MeshSpherical & gstlrn::MeshSpherical::operator= ( const MeshSpherical & m )

◆ reset()

Id gstlrn::MeshSpherical::reset	(	Id	ndim,
		Id	napexpermesh,
		const 1 &	apices,
		const 1 &	meshes,
		bool	byCol,
		bool	verbose = `false`
	)

Create the meshing (from mesh information)

Parameters

[in]	ndim	Space Dimension
[in]	napexpermesh	Number of apices per mesh
[in]	apices	Vector of Apex information
[in]	meshes	Vector of mesh indices
[in]	byCol	true for Column major; false for Row Major
[in]	verbose	Verbose flag

Remarks: The argument 'byCol' concerns 'apices' and 'meshes'

◆ toString()

String gstlrn::MeshSpherical::toString ( const AStringFormat * strfmt = nullptr ) const

overridevirtual

Interface to AStringable.

Print the contents of the meshing

Parameters

[in] strfmt Format for printout

Reimplemented from gstlrn::AMesh.

The documentation for this class was generated from the following files:

include/Mesh/MeshSpherical.hpp
src/Mesh/MeshSpherical.cpp
