gstlrn::CalcSimuEden Class Reference

#include <CalcSimuEden.hpp>

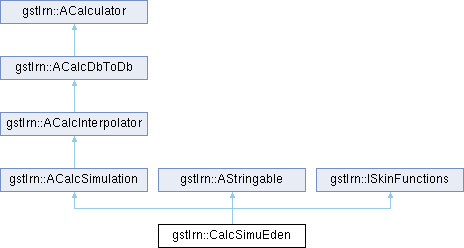

Inheritance diagram for gstlrn::CalcSimuEden:

Detailed Description

Multivariate multiphase propagation into a set of components constrained by initial conditions and fluid densities

Remarks

Directions are ordered as follows :

0: +X; 1: -X; 2: +Y; 3: -Y; 4: +Z(up); 5: -Z(down)

The coding of the matrix is:

facies + nfacies * fluid

Facies: 0 (Shale), 1 to nfacies, -1 (Cork)

Fluids: 0 (undefined), 1 to nfluids, -1 (No Fluid)

Fluids should be ordered by increasing weight

A Permeability variable is a value (>=1) which divides

the velocities. This variable is optional.

A Porosity variable is a value (in [0,1]) which multiplies

the volumes. This variable is optional.

Volume_max represents the volumic part of the invaded area:

it is always <= number of cells invaded.

Public Member Functions
	CalcSimuEden (Id nfacies=0, Id nfluids=0, Id niter=1, Id nbsimu=0, Id seed=4324324, bool verbose=false)
	CalcSimuEden (const CalcSimuEden &r)=delete
CalcSimuEden &	operator= (const CalcSimuEden &r)=delete
virtual	~CalcSimuEden ()
String	toString (const AStringFormat *strfmt=nullptr) const override
	Interface to AStringable.
Id	isAlreadyFilled (Id ipos) const override
	Interface to ISkinFunctions.
Id	isToBeFilled (Id ipos) const override
double	getWeight (Id ipos, Id idir) const override
void	setIndFacies (Id indFacies)
void	setIndFluid (Id indFluid)
void	setIndPerm (Id indPerm)
void	setIndPoro (Id indPoro)
void	setSpeeds (const 1 &speeds)
void	setNMax (double numberMax)
void	setShowFluid (bool showFluid)
void	setVolumeMax (double volumeMax)
Public Member Functions inherited from gstlrn::ACalcSimulation
	ACalcSimulation (Id nbsimu, Id seed=4324324)
	ACalcSimulation (const ACalcSimulation &r)=delete
ACalcSimulation &	operator= (const ACalcSimulation &r)=delete
virtual	~ACalcSimulation ()
Id	getSeed () const
Id	getNbSimu () const
void	setSeed (Id seed)
void	setNbSimu (Id nbsimu)
Public Member Functions inherited from gstlrn::ACalcInterpolator
	ACalcInterpolator ()
	ACalcInterpolator (const ACalcInterpolator &r)=delete
ACalcInterpolator &	operator= (const ACalcInterpolator &r)=delete
virtual	~ACalcInterpolator ()
void	setModel (ModelGeneric *model)
void	setNeigh (ANeigh *neigh)
void	setKrigopt (const KrigOpt &krigopt)
ModelGeneric *	getModel () const
ANeigh *	getNeigh () const
const KrigOpt &	getKrigopt () const
bool	hasModel (bool verbose=true) const
bool	hasNeigh (bool verbose=true) const
Public Member Functions inherited from gstlrn::ACalcDbToDb
	ACalcDbToDb (bool mustShareSameSpaceDimension=true)
	ACalcDbToDb (const ACalcDbToDb &r)=delete
ACalcDbToDb &	operator= (const ACalcDbToDb &r)=delete
virtual	~ACalcDbToDb ()
void	setDbin (Db *dbin)
void	setDbout (Db *dbout)
void	setNamingConvention (const NamingConvention &namconv)
void	setMustShareSpaceDimension (bool mustShareSpaceDimension)
Db *	getDbin () const
Db *	getDbout () const
DbGrid *	getGridin () const
DbGrid *	getGridout () const
const NamingConvention &	getNamingConvention () const
bool	hasDbin (bool verbose=true) const
bool	hasDbout (bool verbose=true) const
bool	isGridIn (bool verbose=true) const
bool	isGridOut (bool verbose=true) const
Public Member Functions inherited from gstlrn::ACalculator
	ACalculator ()
	ACalculator (const ACalculator &r)=delete
ACalculator &	operator= (const ACalculator &r)=delete
virtual	~ACalculator ()
bool	run ()
Public Member Functions inherited from gstlrn::AStringable
	AStringable ()
	AStringable (const AStringable &r)
AStringable &	operator= (const AStringable &r)
virtual	~AStringable ()
virtual void	display (const AStringFormat *strfmt=nullptr) const final
virtual void	display (Id level) const final
Public Member Functions inherited from gstlrn::ISkinFunctions
	ISkinFunctions ()
virtual	~ISkinFunctions ()

Constructor & Destructor Documentation

CalcSimuEden() [1/2]

gstlrn::CalcSimuEden::CalcSimuEden	(	Id	nfacies = 0,
		Id	nfluids = 0,
		Id	niter = 1,
		Id	nbsimu = 0,
		Id	seed = 4324324,
		bool	verbose = false
	)

CalcSimuEden() [2/2]

gstlrn::CalcSimuEden::CalcSimuEden ( const CalcSimuEden &  r )

delete

~CalcSimuEden()

gstlrn::CalcSimuEden::~CalcSimuEden ( )

virtual

Member Function Documentation

getWeight()

double gstlrn::CalcSimuEden::getWeight ( Id  ipos, Id  idir  ) const

overridevirtual

Returns the weight of a cell in a given direction

Returns

The weight

Parameters

[in]	ipos	Cell location
[in]	idir	Direction value

Reimplemented from gstlrn::ISkinFunctions.

isAlreadyFilled()

Id gstlrn::CalcSimuEden::isAlreadyFilled ( Id  ipos ) const

overridevirtual

Interface to ISkinFunctions.

Check if the cell is already filled with fluid

Returns

1 if the cell (filled with facies) is already filled with Fluid

Parameters

[in]

ipos

Absolute grid index of the input grid node

Implements gstlrn::ISkinFunctions.

isToBeFilled()

Id gstlrn::CalcSimuEden::isToBeFilled ( Id  ipos ) const

overridevirtual

Check if the cell can be filled with fluid

Returns

1 if the cell (filled with facies) can be filled with Fluid

Parameters

[in]

ipos

Absolute grid index of the input grid node

Implements gstlrn::ISkinFunctions.

operator=()

CalcSimuEden & gstlrn::CalcSimuEden::operator= ( const CalcSimuEden &  r )

delete

setIndFacies()

void gstlrn::CalcSimuEden::setIndFacies ( Id  indFacies )

inline

setIndFluid()

void gstlrn::CalcSimuEden::setIndFluid ( Id  indFluid )

inline

setIndPerm()

void gstlrn::CalcSimuEden::setIndPerm ( Id  indPerm )

inline

setIndPoro()

void gstlrn::CalcSimuEden::setIndPoro ( Id  indPoro )

inline

setNMax()

void gstlrn::CalcSimuEden::setNMax ( double  numberMax )

inline

setShowFluid()

void gstlrn::CalcSimuEden::setShowFluid ( bool  showFluid )

inline

setSpeeds()

void gstlrn::CalcSimuEden::setSpeeds ( const 1 &  speeds )

inline

setVolumeMax()

void gstlrn::CalcSimuEden::setVolumeMax ( double  volumeMax )

inline

toString()

String gstlrn::CalcSimuEden::toString ( const AStringFormat *  strfmt = nullptr ) const

overridevirtual

Interface to AStringable.

Reimplemented from gstlrn::AStringable.

---

The documentation for this class was generated from the following files:

• include/Simulation/CalcSimuEden.hpp
• src/Simulation/CalcSimuEden.cpp
