Image Neighborhood definition. More...

#include <NeighImage.hpp>

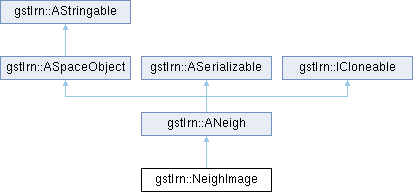

Inheritance diagram for gstlrn::NeighImage:

Detailed Description

Image Neighborhood definition.

The Neighborhood is usually meant to select a sub-population from the input Data Base, containing the active samples close to the target.

This Neighborhood is only defined in the case when the Data and the Target belong to the same grid. This neighborhood is defined as a rectangular set of pixels, located around the target. This rectangle is given by its half-extension in each space dimension (called 'radius') As the number of pixels grows fast with the space dimension, it is offered to sample them by specifying a skipping factor, so as to retain only 1 / (1 + skip) of them.

Public Member Functions
	NeighImage (const 1 &radius=1(), Id skip=0, const ASpaceSharedPtr &space=ASpaceSharedPtr())

	NeighImage (const NeighImage &r)

NeighImage &	operator= (const NeighImage &r)

virtual	~NeighImage ()

void	getNeigh (Id iech_out, 1 &ranks) override
	Interface for ANeigh.

Id	getNSampleMax (const Db *db) const override

bool	hasChanged (Id iech_out) const override

ENeigh	getType () const override

String	toString (const AStringFormat *strfmt=nullptr) const override
	Interface for AStringable.

Id	getSkip () const

const &	getImageRadius () const

Id	getImageRadius (Id idim) const

void	setImageRadius (const 1 &imageRadius)

void	setSkip (Id skip)

DbGrid *	buildImageGrid (const DbGrid *dbgrid, Id seed) const
	Create a subgrid containing the minimum pattern for Image Neighborhood. The output subgrid is "parallel" to the input 'dbgrid'.

Public Member Functions inherited from gstlrn::ANeigh
	ANeigh (const ASpaceSharedPtr &space=ASpaceSharedPtr())

	ANeigh (const ANeigh &r)

ANeigh &	operator= (const ANeigh &r)

virtual	~ANeigh ()

bool	isConsistent (const ASpace *space) const override
	ASpaceObject Interface.

virtual Id	attach (const Db dbin, const Db dbout)
	Interface for ANeigh.

virtual	summary (Id iech_out)

virtual bool	getFlagContinuous () const

void	displayDebug (1 &ranks) const

void	select (Id iech_out, 1 &ranks)

bool	isUnchanged () const

void	setIsChanged (bool status=false)

void	reset ()

bool	getFlagXvalid () const

bool	getFlagKFold () const

void	setFlagXvalid (bool flagXvalid)

void	setFlagKFold (bool flagKFold)

void	setFlagSimu (bool flagSimu)

void	setBallSearch (bool status, Id leaf_size=10)

void	attachBall ()

Public Member Functions inherited from gstlrn::ASpaceObject
	ASpaceObject (const ASpaceSharedPtr &space=ASpaceSharedPtr())

	ASpaceObject (const ASpaceObject &r)

ASpaceObject &	operator= (const ASpaceObject &r)

virtual	~ASpaceObject ()

ASpaceSharedPtr	getSpace () const
	Accessor to the current object space context.

bool	isConsistent () const
	Indicate if I am consistent with my current space context.

void	setSpace (ASpaceSharedPtr &&space)

	getUnitaryVector () const
	Return unitary vector for the current space context.

bool	isConsistent (const ASpaceSharedPtr &space) const
	Indicate if I am consistent with the provided space.

size_t	getNDim (Id ispace=-1) const
	Shortcuts to ASpace methods.

const &	getOrigin (Id ispace=-1) const
	Return the current space context origin coordinates.

double	getDistance (const SpacePoint &p1, const SpacePoint &p2, Id ispace=0) const
	Return the distance between two space points for the current space context.

	getDistances (const SpacePoint &p1, const SpacePoint &p2) const
	Return all the distances (space composits) between two space points for the current space context.

	getIncrement (const SpacePoint &p1, const SpacePoint &p2, Id ispace=0) const
	Return the increment vector between two space points for the current space context.

void	getIncrementInPlace (const SpacePoint &p1, const SpacePoint &p2, 1 &ptemp, Id ispace=-1) const

Public Member Functions inherited from gstlrn::AStringable
	AStringable ()

	AStringable (const AStringable &r)

AStringable &	operator= (const AStringable &r)

virtual	~AStringable ()

virtual void	display (const AStringFormat *strfmt=nullptr) const final

virtual void	display (Id level) const final

Public Member Functions inherited from gstlrn::ASerializable
	ASerializable ()

	ASerializable (const ASerializable &r)

ASerializable &	operator= (const ASerializable &r)

	ASerializable (ASerializable &&r) noexcept

ASerializable &	operator= (ASerializable &&r) noexcept

virtual	~ASerializable ()

bool	dumpToNF (const String &NFFilename, const EFormatNF &format=EFormatNF::fromKey("DEFAULT"), bool verbose=false) const
	Dump the contents of an object into an Output File using a given Output NF Format.

void	setDefaultFormatNF (const EFormatNF &format)

Public Member Functions inherited from gstlrn::ICloneable
	ICloneable ()

virtual	~ICloneable ()

virtual ICloneable *	clone () const =0

std::shared_ptr< ICloneable >	cloneShared () const

std::unique_ptr< ICloneable >	cloneUnique () const

Static Public Member Functions
static NeighImage *	create (const 1 &radius, Id skip=0, const ASpaceSharedPtr &space=ASpaceSharedPtr())

static NeighImage *	createFromNF (const String &NFFilename, bool verbose=true)

Static Public Member Functions inherited from gstlrn::ASerializable
static String	buildFileName (Id status, const String &filename, bool ensureDirExist=false)

static String	getFileIdentity (const String &filename, bool verbose=false)

static void	setPrefixName (const String &prefixName)

static void	unsetPrefixName ()

static const String &	getPrefixName ()

Constructor & Destructor Documentation

◆ NeighImage() [1/2]

gstlrn::NeighImage::NeighImage	(	const 1 &	radius = `1()`,
		Id	skip = `0`,
		const ASpaceSharedPtr &	space = `ASpaceSharedPtr()`
	)

◆ NeighImage() [2/2]

gstlrn::NeighImage::NeighImage ( const NeighImage & r )

◆ ~NeighImage()

gstlrn::NeighImage::~NeighImage ( )

virtual

Member Function Documentation

◆ buildImageGrid()

DbGrid * gstlrn::NeighImage::buildImageGrid	(	const DbGrid *	dbgrid,
		Id	seed
	)		const

Create a subgrid containing the minimum pattern for Image Neighborhood. The output subgrid is "parallel" to the input 'dbgrid'.

Parameters

dbgrid	Input DbGrid
seed	Seed used for random number generation

Returns: Pointer to the newly created DbGrid

Remarks: When a sample is skipped ('using 'skip' Neighborhood parameter) the value of the corresponding variable is set to 'TEST'.; The center point can never be skipped.

◆ create()

NeighImage * gstlrn::NeighImage::create	(	const 1 &	radius,
		Id	skip = `0`,
		const ASpaceSharedPtr &	space = `ASpaceSharedPtr()`
	)

static

◆ createFromNF()

NeighImage * gstlrn::NeighImage::createFromNF	(	const String &	NFFilename,
		bool	verbose = `true`
	)

static

Create a NeighImageborhood by loading the contents of a Neutral File

Parameters

NFFilename	Name of the Neutral File
verbose	Verbose flag

Returns

◆ getImageRadius() [1/2]

const & gstlrn::NeighImage::getImageRadius ( ) const

inline

◆ getImageRadius() [2/2]

Id gstlrn::NeighImage::getImageRadius ( Id idim ) const

inline

◆ getNeigh()

void gstlrn::NeighImage::getNeigh	(	Id	iech_out,
		1 &	ranks
	)

overridevirtual

Interface for ANeigh.

Select the neighborhood

Parameters

iech_out	Valid Rank of the sample in the output Db
ranks	Vector of sample ranks in neighborhood (empty when error)

Implements gstlrn::ANeigh.

◆ getNSampleMax()

Id gstlrn::NeighImage::getNSampleMax ( const Db * db ) const

overridevirtual

Given a Db, returns the maximum number of samples per NeighImageborhood

Parameters

db	Pointer to the target Db

Returns

Implements gstlrn::ANeigh.

◆ getSkip()

Id gstlrn::NeighImage::getSkip ( ) const

inline

◆ getType()

ENeigh gstlrn::NeighImage::getType ( ) const

inlineoverridevirtual

Reimplemented from gstlrn::ANeigh.

◆ hasChanged()

bool gstlrn::NeighImage::hasChanged ( Id iech_out ) const

overridevirtual

Reimplemented from gstlrn::ANeigh.

◆ operator=()

NeighImage & gstlrn::NeighImage::operator= ( const NeighImage & r )

◆ setImageRadius()

void gstlrn::NeighImage::setImageRadius ( const 1 & imageRadius )

inline

◆ setSkip()

void gstlrn::NeighImage::setSkip ( Id skip )

inline

◆ toString()

String gstlrn::NeighImage::toString ( const AStringFormat * strfmt = nullptr ) const

overridevirtual

Interface for AStringable.

Reimplemented from gstlrn::ASpaceObject.

The documentation for this class was generated from the following files:

include/Neigh/NeighImage.hpp
src/Neigh/NeighImage.cpp
